Concealed cistern assembly production line
10 month ago
Not only does the FABIA concealed cistern provide more floor space in your bathroom, allowing greater design freedom and flexibility, but the high-quality HDPE material helps reduce maintenance needs. The body of Fabia hidden water tank is formed by one-piece blow molding of high-density, impact-resistant HDPE, which is durable and wear-resistant. Its robust construction also ensures long life and reliable performance, reducing the need for frequent repairs or replacements.
Fabia M47 dual flush toilet cistern description
1. HDPE plastic material water tank body, brass valve.
2. Dual flushing plate needs to be ordered separately, abs or glass or stainless steel material can be chosen with different colors.

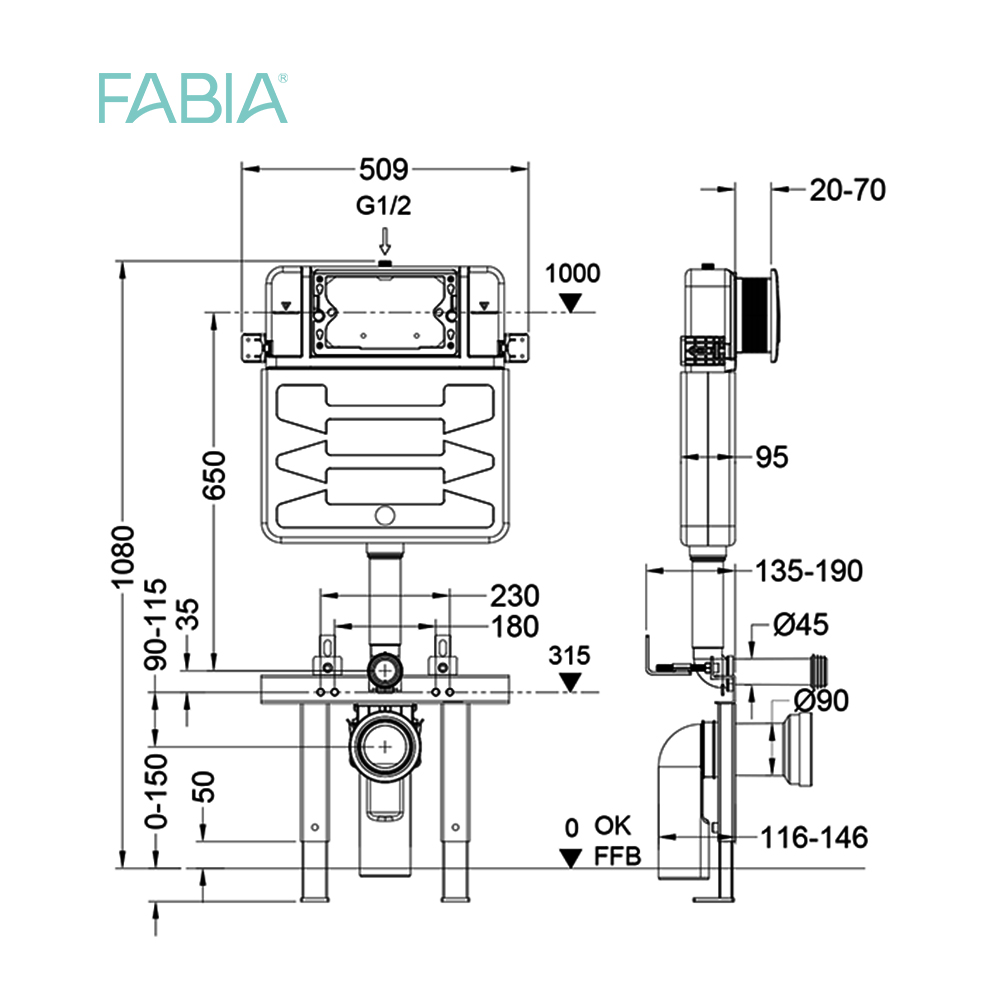

2. Metal supporting frame with blue or red or black or white or Fabia blue color surface.3. Dimension size: 509*1080*150mm.
4. For mounting in front of a solid or drywall construction, self-supporting, with frontal actuator, with water condensation insulation.
5.Adjustable dual flush volume: 6L/3L or 4.5/3L (adjustable flush volume).
6. Water supply: Top inlet.
7. Adjustable drainage pipe: Up and down: 90mm-115mm, front and back: 116mm-146mm.
8. Adjustable galvanized arm: 135-190mm.
9. Adjustable galvanized leg: 0-200mm.
10. Self-supporting frame: Height 1120mm with powder-coated.
11. OEM and ODM are acceptable.
12. Passed certification of ISO9001, CE, SASO, Watermark.
13. Sample: With large stock, we can ship samples within 3 days.
