UAV Drone Jammer3

9 month ago

28 0 

8 year

Product details

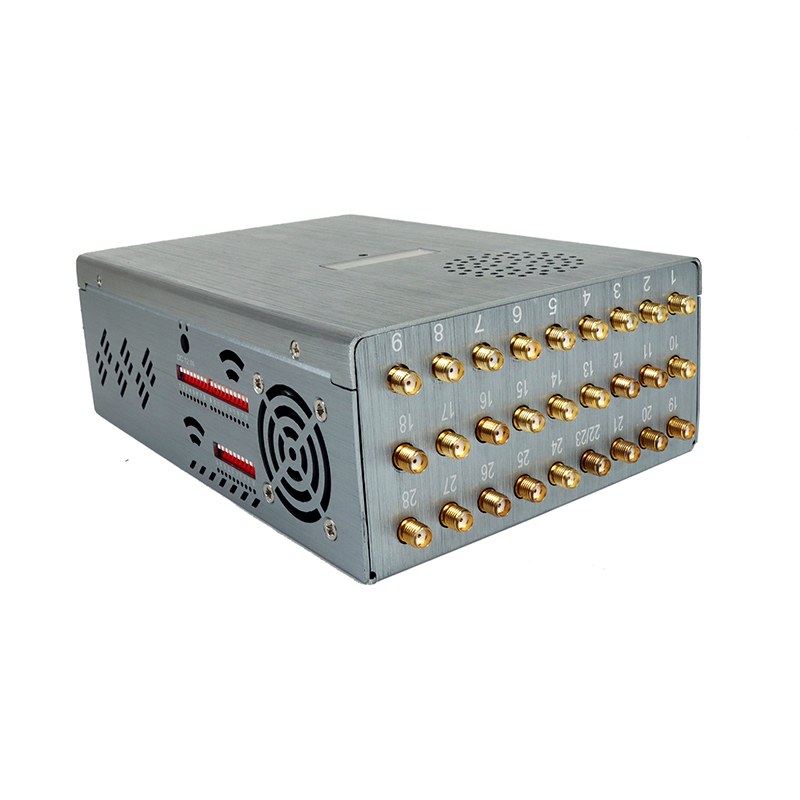

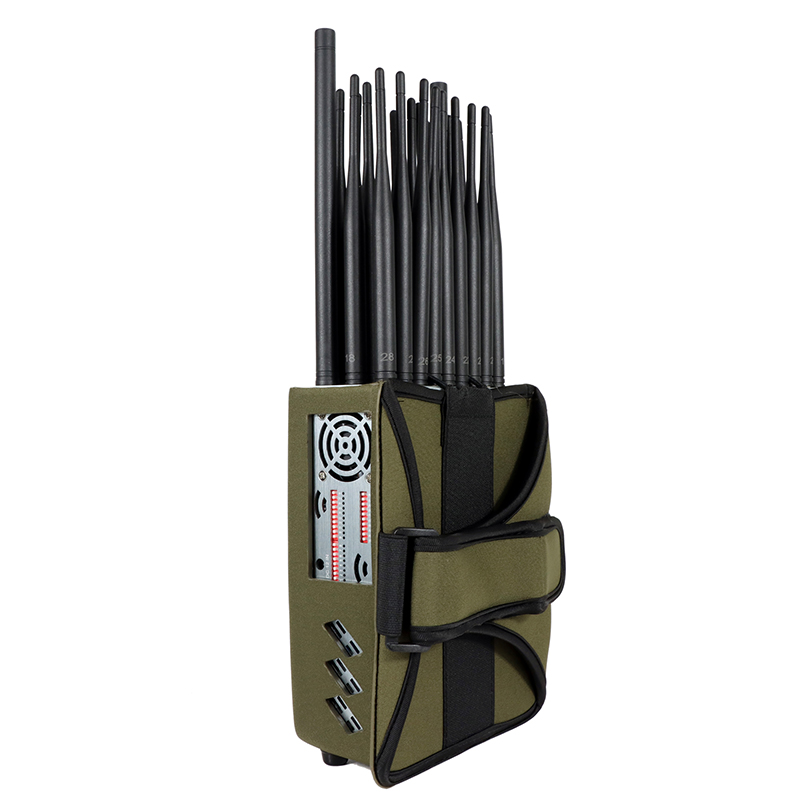

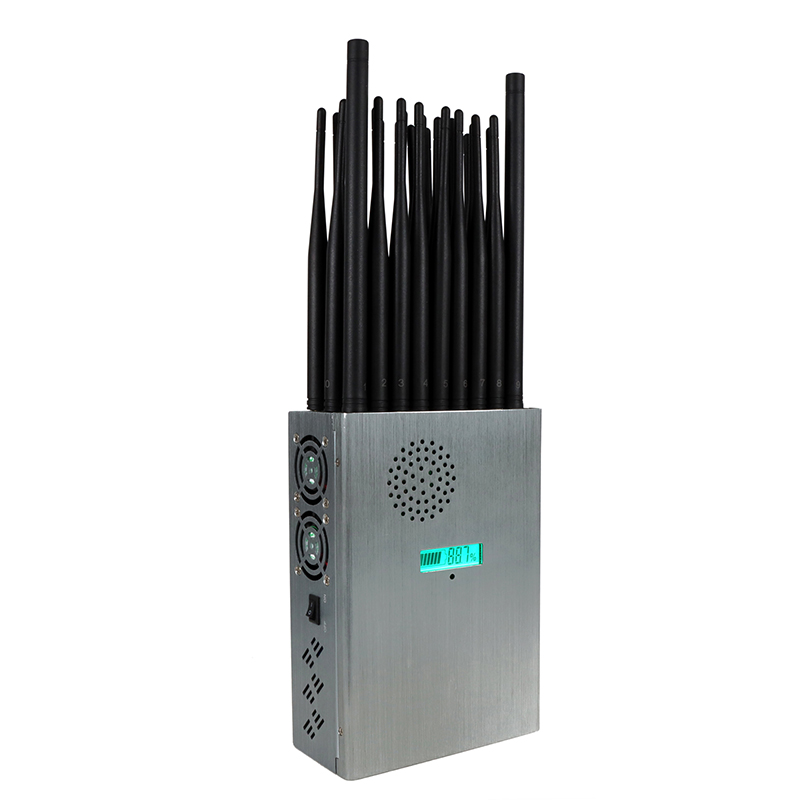

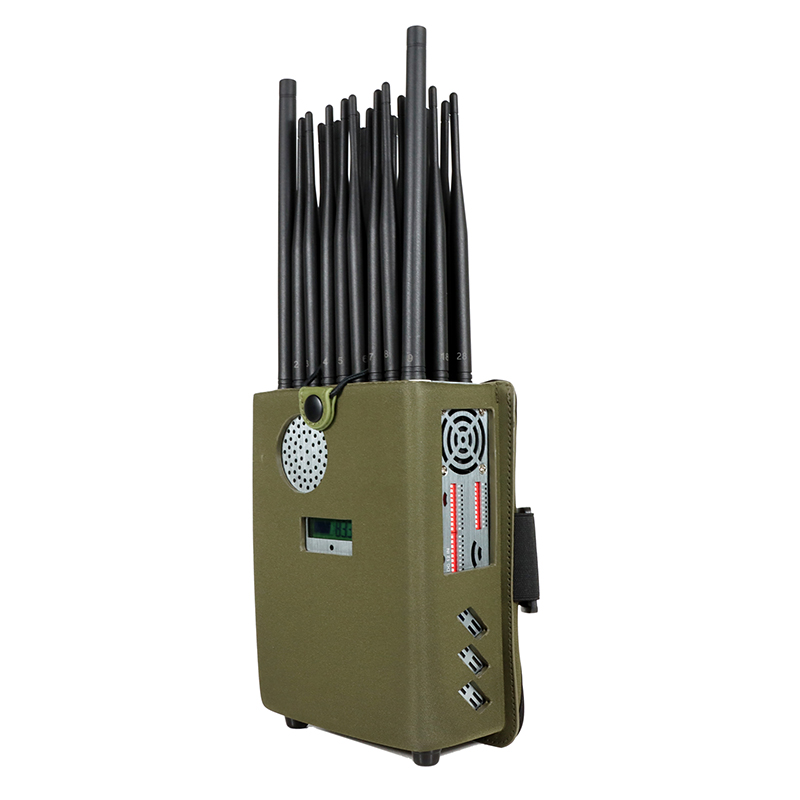

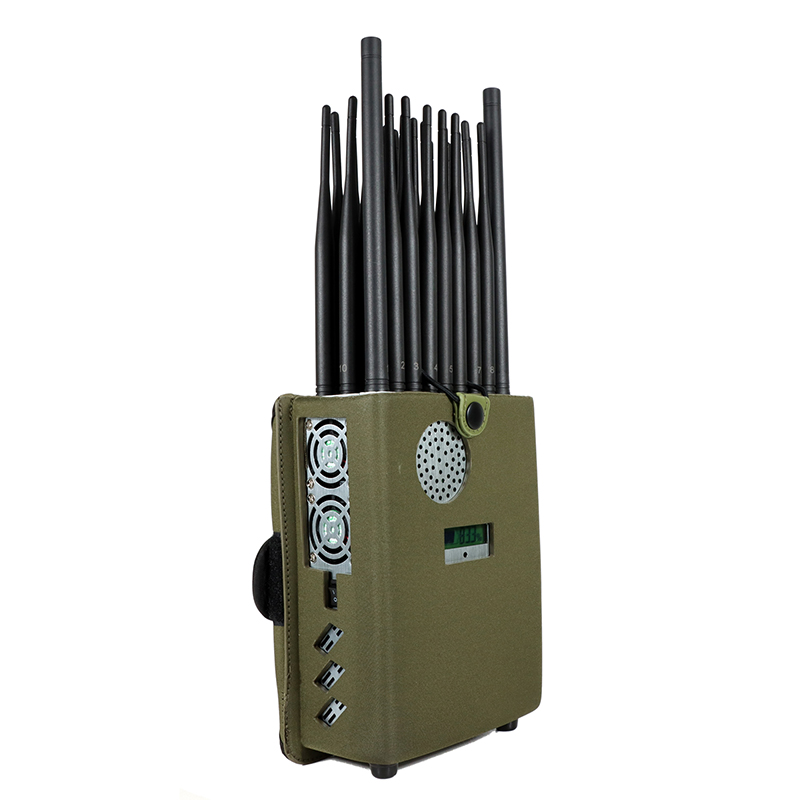

New unique 28 bands with 27 antennas all-in-one design wireless signal UAV Drone Jamming Module Jammer with nylon cover for portable, jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that shield GSM, 3G, 4G 5G, and CDMA 450Mhz, Block GPS, Glonass, Beidou, Wi-Fi 2.4G, Wi-Fi 5G,Wi-Fi 6E, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868，915,LORA,LOJACK etc. Also is 88-108MHz FM radio breaker, Battery capacity LCD display (Capacity percentage, working Voltage/Current) is popular in 2023 and in years to come.

Advantages

The world first 28 bands portable UAV Drone Jammer with Jammer Antenna design, blocking FM radio and Wi-Fi 6E and all cell phone 5G 4G 3G 2G LORA LOJACK GPS Wi-Fi RF signals

28 watts high output power, Jamming range 2 to 25 meters (at-75dBm, depends on signal strength in given area)

Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld

With DIP switch, can turn on/off any signal band without affect other bands

With car charger, 12V DC/AC power supply is also available

With built-in battery, can work 80 minutes, repeated charging

Battery capacity LCD display (Capacity percentage, working Voltage/Current)

Safe case packing and handheld for option

Basic Specifications

Comprehensive Jamming: Covers 5G/4G/3G/2G phones, WiFi, GPS, UHF/VHF, LOJACK, RC bands, LORA, FM, & WiFi 6E.

High-Powered Output: 28W total with 1W per band for powerful signal disruption.

Adjustable Jamming Range: Jamming range varies from 2-25m based on signal strength.

Universal AC/DC Power: Compatible with global power standards, AC 110-240V to DC 12V.

Efficient Cooling: Aluminum radiator & 3 fans keep device cool during operation.

Long Battery Life: Built-in battery for up to 80 minutes of continuous use.

Portable Design: Compact size (200x133x66mm) & lightweight (3.0 kg) for easy portability.

Complete Accessory Set: Includes jammer, chargers, antennas, and protective cover.

Application

It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument

Key technical specifications: N28 FM radio&Wi-Fi6E Jammer for Worldwide
Channel	Output port	Frequency range	Average out-putting power
CH 1	VHF/LOJACK	135-175MHz	30±1dBm/ 1±0.2W
CH 2	5G600	617-698MHz	30±1dBm/ 1±0.2W
CH 3	5G3700	3600-3900MHz	30±1dBm/ 1±0.2W
CH 4	3G2100	2110-2180MHZ	30±1dBm/ 1±0.2W
CH 5	RC-868	868MHz	30±1dBm/ 1±0.2W
CH 6	WIFI5.2G 802.11.a	5100-5500MHz	30±1dBm/ 1±0.2W
CH 7	4G2600	2620-2690MHZ	30±1dBm/ 1±0.2W
CH 8	4G800	790-826MHz	30±1dBm/ 1±0.2W
CH 9	FM Radio	80-108MHz	30±1dBm/ 1±0.2W
CH 10	RC-433	433-434MHz	30±1dBm/ 1±0.2W
CH 11	4G700	700-803MHz	30±1dBm/ 1±0.2W
CH 12	GPSL1	1560-1610MHz	30±1dBm/ 1±0.2W
CH 13	LORA/RC915	900-930MHz	30±1dBm/ 1±0.2W
CH 14	4G2500	2500-2620MHz	30±1dBm/ 1±0.2W
CH 15	GPSL2L3L4L5	1170-1390MHz	30±1dBm/ 1±0.2W
CH 16	CDMA850	851-894MHZ	30±1dBm/ 1±0.2W
CH 17	4G1700	1710-1780MHz	30±1dBm/ 1±0.2W
CH 18	WIFI 6E 802.11ax	5925–6425MHz	30±1dBm/ 1±0.2W
CH 19	RC-315	315MHz	30±1dBm/ 1±0.2W
CH 20	GSM900	925-960MHz	30±1dBm/ 1±0.2W
CH 21	DCS1800	1805-1920MHz	30±1dBm/ 1±0.2W
CH 22	WIFI2.4G 802.11.b &g	2400-2500MHz	30±1dBm/ 1±0.2W
CH 23	WIFI5.8G 802.11.a	5500-5900MHz	30±1dBm/ 1±0.2W
CH 24	5G3300/3500	3300-3600MHZ	30±1dBm/ 1±0.2W
CH 25	UHF&CDMA450	400-470MHz	30±1dBm/ 1±0.2W
CH 26	5G1500	1427-1518MHz	30±1dBm/ 1±0.2W
CH 27	PCS1900	1920-2000MHz	30±1dBm/ 1±0.2W
CH 28	4G2300	2300-2400MHz	30±1dBm/ 1±0.2W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN Built-in battery continues working: Around 80 minutes
Dimensions: (length, width, height) 200x133x66mm (without antenna) Length of antenna :166-195mm Gain:2.0dbi
Packing size: 295260125mm Net weight: 2.2kg Gross weight: 3.0kg
Total power: 28W Shielding radius: (2-25) meters, Still depends on the strength signal in given area
Warranty: one year from delivery date
