2 Color Oil Filter Screen Printing Machine
Oil Filter Printing Machine Features:

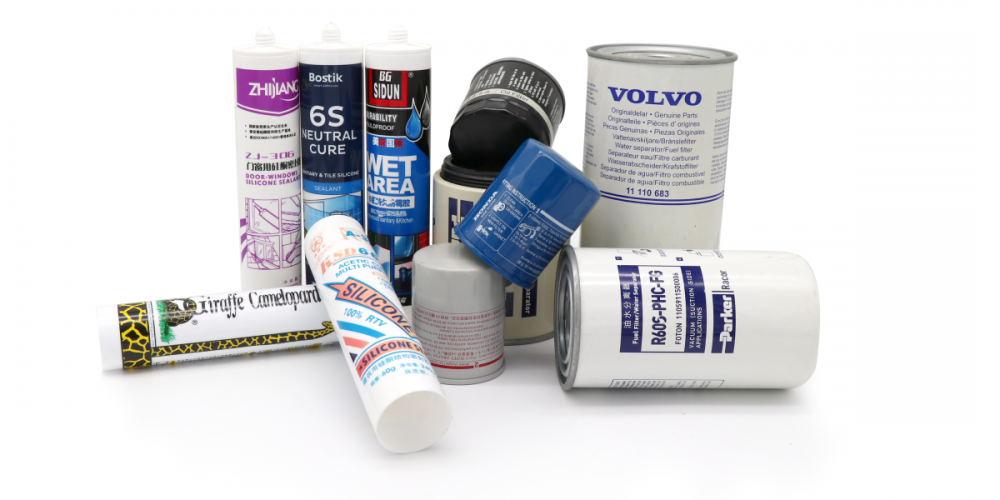

- Suitable for screen printing UV ink of various colors on round filters.
- Adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- Adopts a highly customizable connection way, which can be embedded into the product manufacturing line.
- Standing feeding belt
- Flat conversion feeding mechanism
- Divider driving start and stop
- Chain and v-plate conveying products
- Automatic screen printing
- High energy UV curing
- Discharging conversion standing belt
- Standing discharging conveyor belt, which can be connected with the production line.
Cylinder Printing Machine Technical Parameters:
Machine Model
SC128
SC1524
Printing Speed
Up to 50pcs/min
Up to 50pcs/min
Product Diameter
30–100mm
30–130mm
Product Height
50–250mm
50–250mm
Max Printing Length
250mm
300mm
Max Printing Height
250mm
250mm
Air Supply
6-7 Bar
6-7 Bar
Power Supply
380V 6KW
380V 7KW
