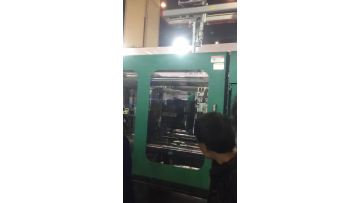

VIDEO-2023-07-24-13-50-26
2 year ago

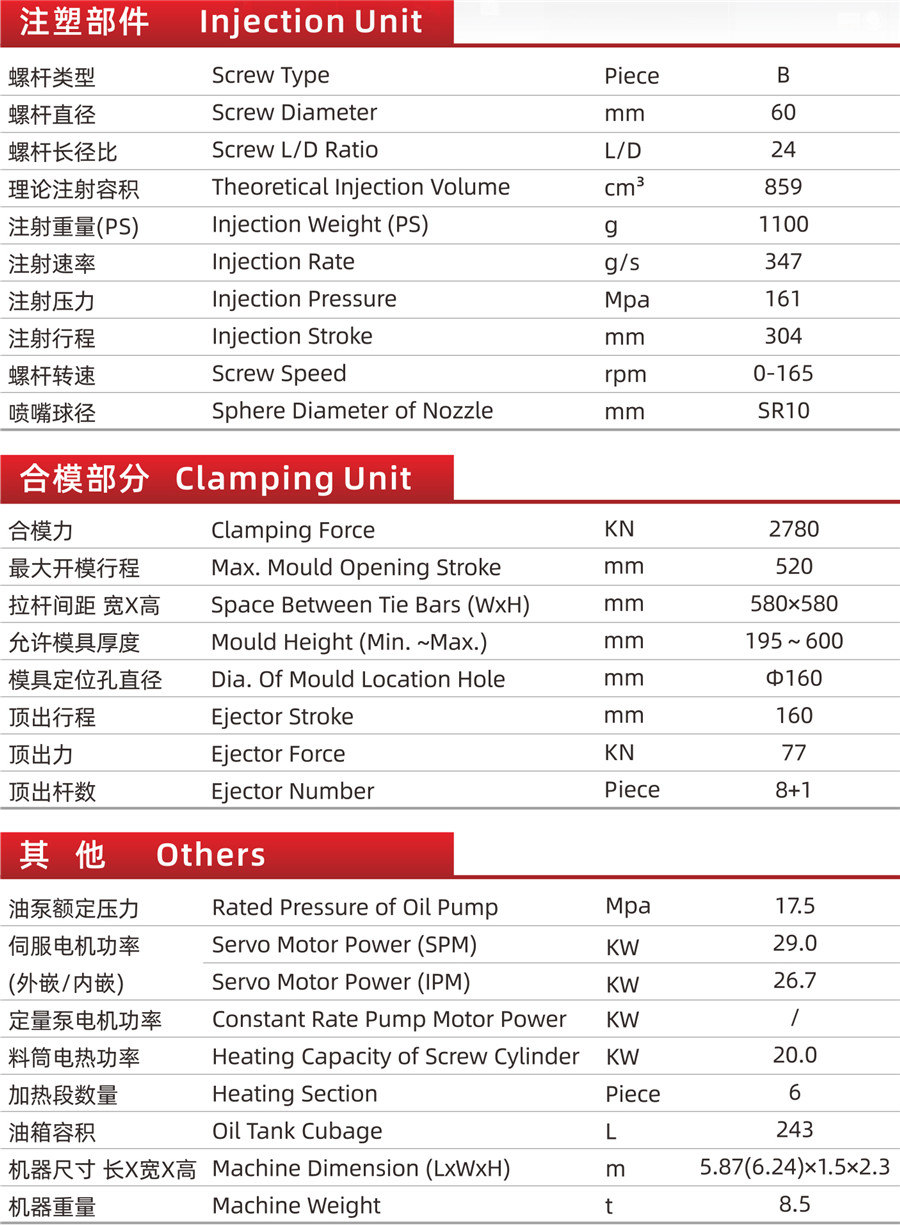

The injection stroke is 304mm, the screw speed is 0-165rpm, the nozzle ball diameter is SR10mm, the clamping force is 2780KN, and the maximum opening stroke is 520mm.The ejection stroke is 160, the ejection output is 77, the rated pressure of the oil pump is 17.5, the power of the servo motor is 29, the number of heating sections is 6, the volume of the oil tank is 243, and the weight of the machine is 8.5 tons.
