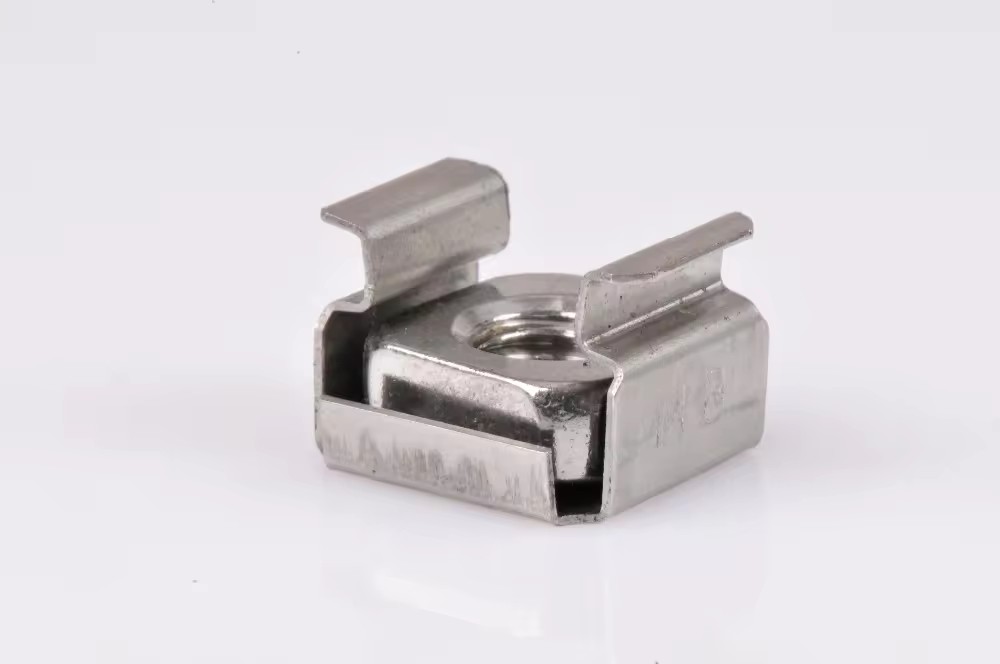

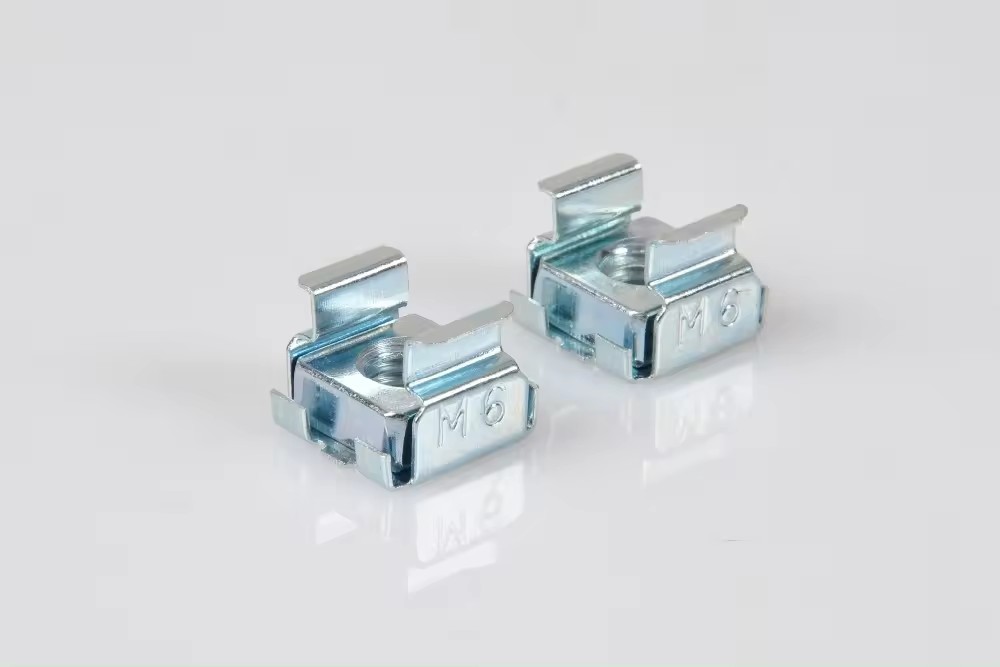

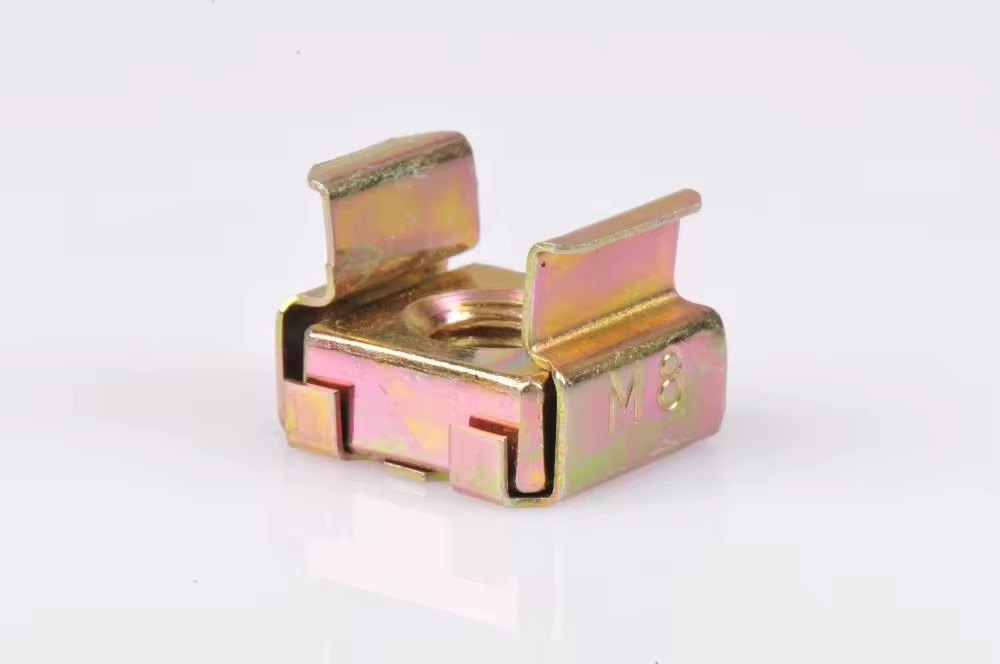

Zinc Plated Cage Nut

12 month ago

11 0 

2 year

Product details

Custom Made Zinc Plated Cage Nut

Thread Size	A		P	F	S	G	B	J	N	K	Material Thickness
	Ear Spread (static)		Panel Range		Emboss Square	Mounting Hole
	Min.	Max.	Panel Range		Min.	Mounting Hole
#6-32	0.3	0.33	.025-.063	0.1	0.531	A or B	0.52	0.25	0.06	0.156	0.02
#8-32			.025-.063	0.1	0.531	A or B	0.52	0.25	0.06	0.156	0.02
			.064-.105	0.14	0.531	A or B	0.52	0.25	0.06	0.156	0.02
			.093-.126	0.16	0.531	A or B	0.52	0.25	0.06	0.156	0.02
#10-24			.025-.063	0.1	0.531	A or B	0.52	0.25	0.06	0.17	0.02
#10-24			.064-.105	0.14	0.531	A or B	0.52	0.25	0.06	0.17	0.02
#10-32			.025-.063	0.1	0.531	A or B	0.52	0.25	0.06	0.17	0.02
			.064-.105	0.14	0.531	A or B	0.52	0.25	0.06	0.17	0.02
			.093-.126	0.16	0.531	A or B	0.52	0.25	0.06	0.17	0.02
1/4-20			.025-.063	0.1	0.531	A or B	0.52	0.25	0.06	0.187	0.02
			.064-.105	0.14	0.531	A or B	0.52	0.25	0.06	0.187	0.02
			.093-.126	0.16	0.531	A or B	0.52	0.25	0.06	0.187	0.02
5/16-18	0.39	0.42	.057-.092	0.135	0.734	C or D	0.66	0.3	0.1	0.218	0.025
			.093-.126	0.175	0.734	C or D	0.66	0.3	0.1	0.218	0.025
			.127-.162	0.205	0.734	C or D	0.66	0.3	0.1	0.218	0.025
3/8-16			.028-.056	0.095	0.734	C or D	0.66	0.3	0.1	0.218	0.025
			.057-.092	0.135	0.734	C or D	0.66	0.3	0.1	0.218	0.025
			.093-.126	0.175	0.734	C or D	0.66	0.3	0.1	0.218	0.025
1/2-13	0.51	0.56	.093-.126	0.165	0.828	E or F	0.87	0.41	0.1	0.304	0.025

Our advantage

1. Provide small batch order

2. Customized packing box and logo

3. The 10000 square warehouse has enough inventory to solve the customer's zero inventory problem

4. The package can be replaced

5. Maintain semi-finished product warehouse for a long time and control product price

6. Provide product design, take free photos, design packaging and other issues

7. Provide multiple transportation channels, door-to-door express delivery, port delivery, etc
