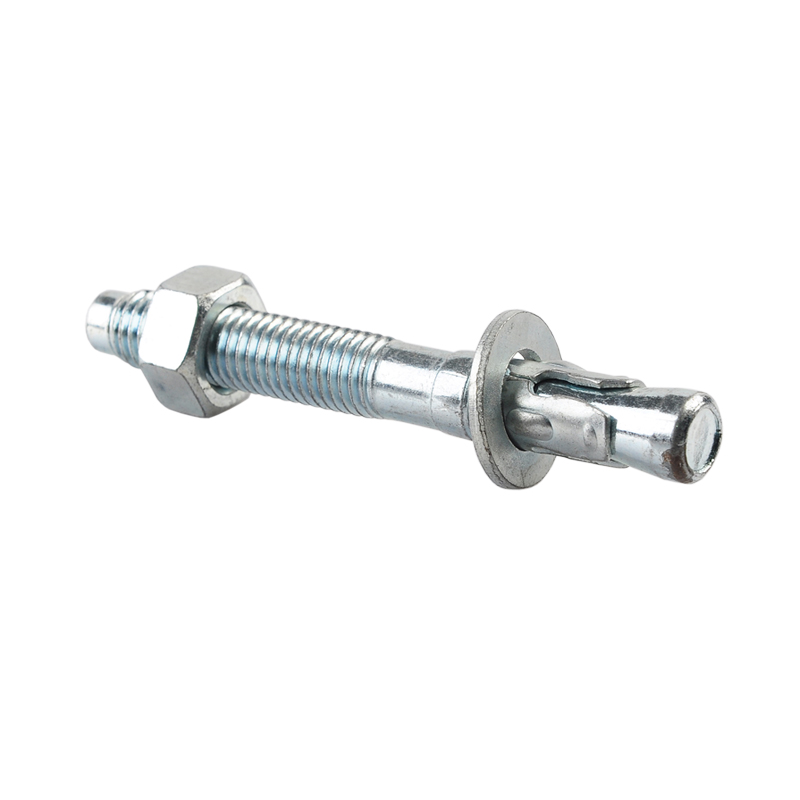

Zinc Plated Wedge Anchor

12 month ago

8 0 

2 year

Product details

Zinc Plated Wedge Anchor

Size	Bit Dia(mm)	Thread Length(mm)	Bore Dia(mm)	Min Depth(mm)	Max Tension(Kgs)
M6×45	6.0	20	6.0	30	850
M6×60	6.0	25	6.0	35	850
M6×70	8.0	25	8.0	35	850
M6×90	8.0	30	8.0	35	850
M8×50	8.0	25	8.0	35	1105
M8×60	8.0	25	8.0	40	1105
M8×80	8.0	30	8.0	40	1105
M8×100	8.0	50	8.0	40	1105
M8×120	8.0	60	8.0	40	1105
M10×70	10.0	35	10.0	50	1500
M10×80	10.0	35	10.0	50	1500
M10×90	10.0	50	10.0	50	1500
M10×120	10.0	70	10.0	50	1500
M10×150	10.0	100	10.0	50	1500
M12×75	12.0	30	12.0	50	2300
M12×80	12.0	30	12.0	60	2300
M12×90	12.0	40	12.0	55	2300
M12×100	12.0	40	12.0	60	2300
M12×110	12.0	60	12.0	60	2300
M12×120	12.0	60	12.0	60	2300
M12×140	12.0	70	12.0	60	2300
M12×160	12.0	100	12.0	60	2300
M16×90	16.0	45	16.0	60	3400
M16×120	16.0	60	16.0	70	3400
M16×140	16.0	60	16.0	80	3400
M16×160	16.0	80	16.0	80	3400
M16×180	16.0	100	16.0	80	3400
M16×220	16.0	150	16.0	80	5400
M20×120	20.0	60	20.0	80	5400
M20×160	20.0	60	20.0	100	5400
M20×220	20.0	120	20.0	100	5400

Wedge Anchor-3 Wedge Anchor-2

Our Advantages
1、 Quality defective rate is 50PPM.
2、 ISO 9001 & CE certified.
3、 15+ years manufacturing experience.
4、 Have rich experience to cooperated with famous brand , like GE 、Honda、China Shipbuliding...
5、 Providing certificate such as PPAP Level3 、RoHS、MSDS、IMDS etc.
6、 Generally Production lead time is 15 days or even less.
