DIN914 Hexagon Socket Cone Point Set Screw

12 month ago

8 0 

2 year

Product details

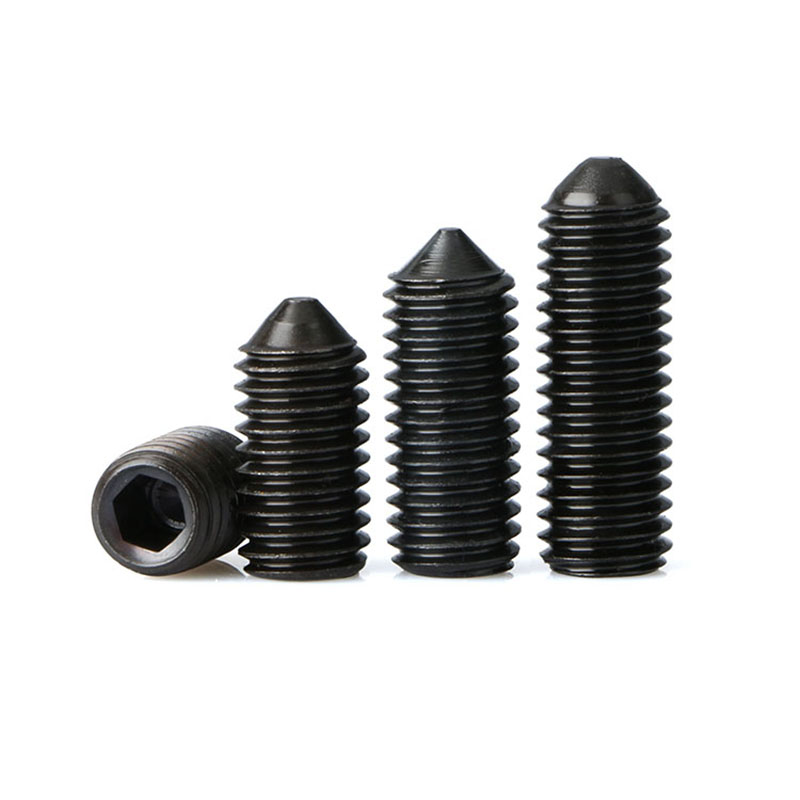

45H DIN914 Hexagon Socket Cone Point Set Screw

d	P	dt	S			t
d	P	max	nom	max	min	min
M1.6	0.35	0.4	0.7	0.724	0.71	0.7
M2	0.4	0.5	0.9	0.913	0.887	0.8
M2.5	0.45	0.65	1.3	1.3	1.275	1.2
M3	0.5	0.75	1.5	1.58	1.52	1.2
M4	0.7	1	2	2.08	2.02	1.5
M5	0.8	1.25	2.5	2.58	2.52	2
M6	1	1.5	3	3.08	3.02	2
M8	1.25	2	4	4.095	4.02	3
M10	1.5	2.5	5	5.14	5.02	4
M12	1.75	3	6	6.14	6.02	4.8
M16	2	4	8	8.175	8.025	6.4
M20	2.5	5	10	10.175	10.025	8

From the quality control of incoming raw materials, process control of production lines, and finished product screening control, we ensure that 99% of products meet technical requirements.

All our products are subjected to strict test and inspection in each process by the workers and QC personnel periodically,starting form the raw ,aterial deliveres to the factory. The products shall be tested and inspected to be qualified before they are passed down to the next process.
