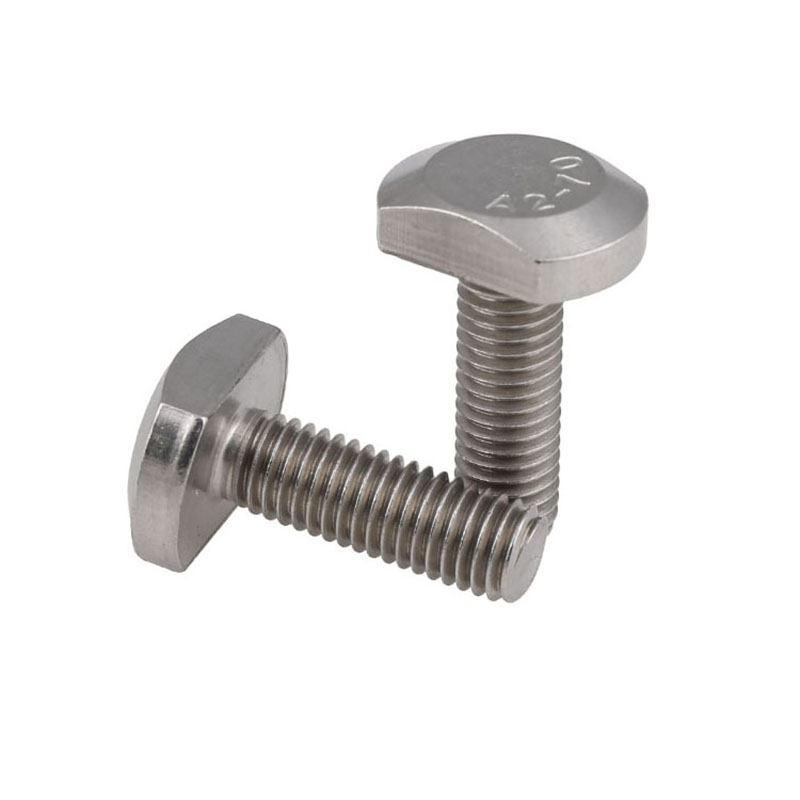

Stainless Steel Square Neck Hammer Head T-bolt
12 month ago
Stainless Steel Square Neck Hammer Head T-bolt
| d | P | L | b | dk | ds | K | s | |||
| d | Tolerance | Tolerance | Tolerance | |||||||
| M5 | 0.8 | 25 | 16 | 10 | 5 |
-0.3 -0.5 |
3 |
0 -0.3 |
9 |
0 -0.5 |
| 40 | 30 | |||||||||
| M6 | 1 | 25 | 15 | 12 | 6 | 4 |
0 -0.5 |
10 | ||
| 40 | 28 | |||||||||
| 63 | 40 | |||||||||
| M8 | 1.25 | 32 | 22 | 16 | 8 | 6 |
13 |
|||
| 50 | 35 | |||||||||
| 73 | 50 | |||||||||
| M10 | 1.5 | 40 | 30 | 20 | 10 | 6 | 15 | |||
| 63 | 45 | |||||||||
| 100 | 60 | |||||||||
| M12 | 1.75 | 50 | 35 | 25 | 12 |
-0.3 -0.6 |
7 | 18 | ||
| 80 | 55 | |||||||||
| 125 | 75 | |||||||||
| 200 | 120 | |||||||||
| 50 | 35 | 28 | 14 | 22 | ||||||
| 80 | 55 | |||||||||
| 125 | 75 | |||||||||
| 200 | 120 | |||||||||
| M16 | 2 | 63 | 45 | 36 | 18 | 8 | 28 | |||
| 100 | 63 | |||||||||
| 160 | 100 | |||||||||
| 250 | 150 | |||||||||
| M20 | 2.5 | 80 | 55 | 45 | 22 | 10 | 35 | |||
| 125 | 85 | |||||||||
| 200 | 125 | |||||||||
| 315 | 190 | |||||||||
| M24 | 3 | 100 | 70 | 56 | 28 | 14 |
0 -1 |
44 |
0 -1 |
|
| 160 | 110 | |||||||||
| 250 | 150 | |||||||||
| 315 | 240 | |||||||||
| M30 | 3.5 | 125 | 80 | 70 | 36 |
-0.4 -0.7 |
18 | 54 | ||
| 200 | 135 | |||||||||
| 315 | 200 | |||||||||
| 500 | 300 | |||||||||
| M36 | 3.5 | 160 | 100 | 82 | 42 | 22 | 65 | |||
| 250 | 175 | |||||||||
| 400 | 250 | |||||||||
| M42 | 4.5 | 160 | 100 | 95 | 48 | 26 | 75 | |||
| 250 | 175 | |||||||||
| 400 | 250 | |||||||||
| M48 | 5 | 200 | 130 | 110 | 54 |
-0.4 -0.8 |
30 | 85 | ||
From the quality control of incoming raw materials, process control of production lines, and finished product screening control, we ensure that 99% of products meet technical requirements.
All our products are subjected to strict test and inspection in each process by the workers and QC personnel periodically,starting form the raw ,aterial deliveres to the factory. The products shall be tested and inspected to be qualified before they are passed down to the next process.
