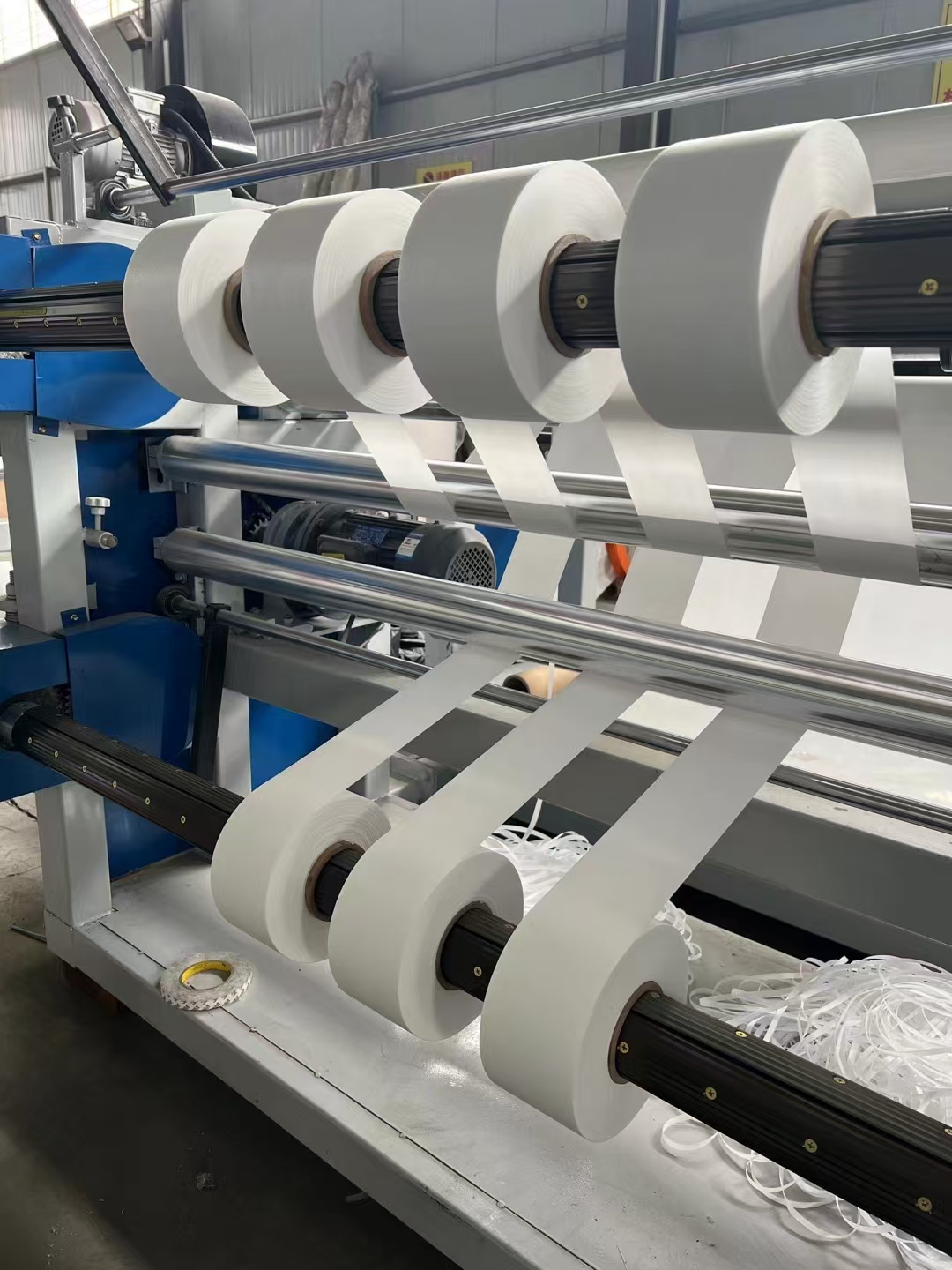

Our company located in Jiangsu CHINA,we produce packaging machine ,such as wet wipes packaging machine,shrink packaging machine,four side sealing packaging machine,today we will tell you something about our nonwoven cutting machine,Our nonwoven cutting machine has below characteristics
1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, central winding mode host adopts frequency conversion speed regulation, to maintain the balanced operation in acceleration.
2. Automatic meter, alarm function. Winding adopts A, B inflatable shaft structure, easy to unload operation. 3. Unwinding adopts photoelectric automatic correction and correction system, so that irregular materials can be cut normally.
4. Automatic discharge device for longitudinal cutting of waste edge with round knife.
5. Oil pressure type automatic feeding, with air expansion shaft.
6. Rail type automatic loading
TECHNICAL PARAMETER:
|
Model |
MH-800 |
MH-1600 |
MH-2400 |
|
Max Raw Material Width |
800MM |
1600MM |
2400MM |
|
Max Discharge Diameter |
Φ1500MM |
Φ1500MM |
Φ1500MM |
|
Max Winding Diameter |
Φ1100MM |
Φ1100MM |
Φ1100MM |
|
Max Speed |
10-400M/Min |
10-400M/Min |
10-400M/Min |
|
Total Power |
19kw |
23kw |
35kw |
|
Weight |
3500kg |
4200kg |
4800kg |
|
Demenssions |
3600*2500*2100mm |
3600*3100*2100mm |
3600*3900*2100mm |
|
Min Cutting Width |
min 20mm |
|
|
