nonwoven cutting machine

9 month ago

9 0 

2 year

Product details

Our company located in Jiangsu CHINA,we produce packaging machine ,such as wet wipes packaging machine,shrink packaging machine,four side sealing packaging machine,today we will tell you something about our nonwoven cutting machine,which can be widely used in cutting and rewinding of various super large coils, such as 30G/ M2-300g /M2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, valve pocket bottom film, tin foil and other coils,if you need this kind of machine ,just feel free contact myhal machinery to get more details and quote.

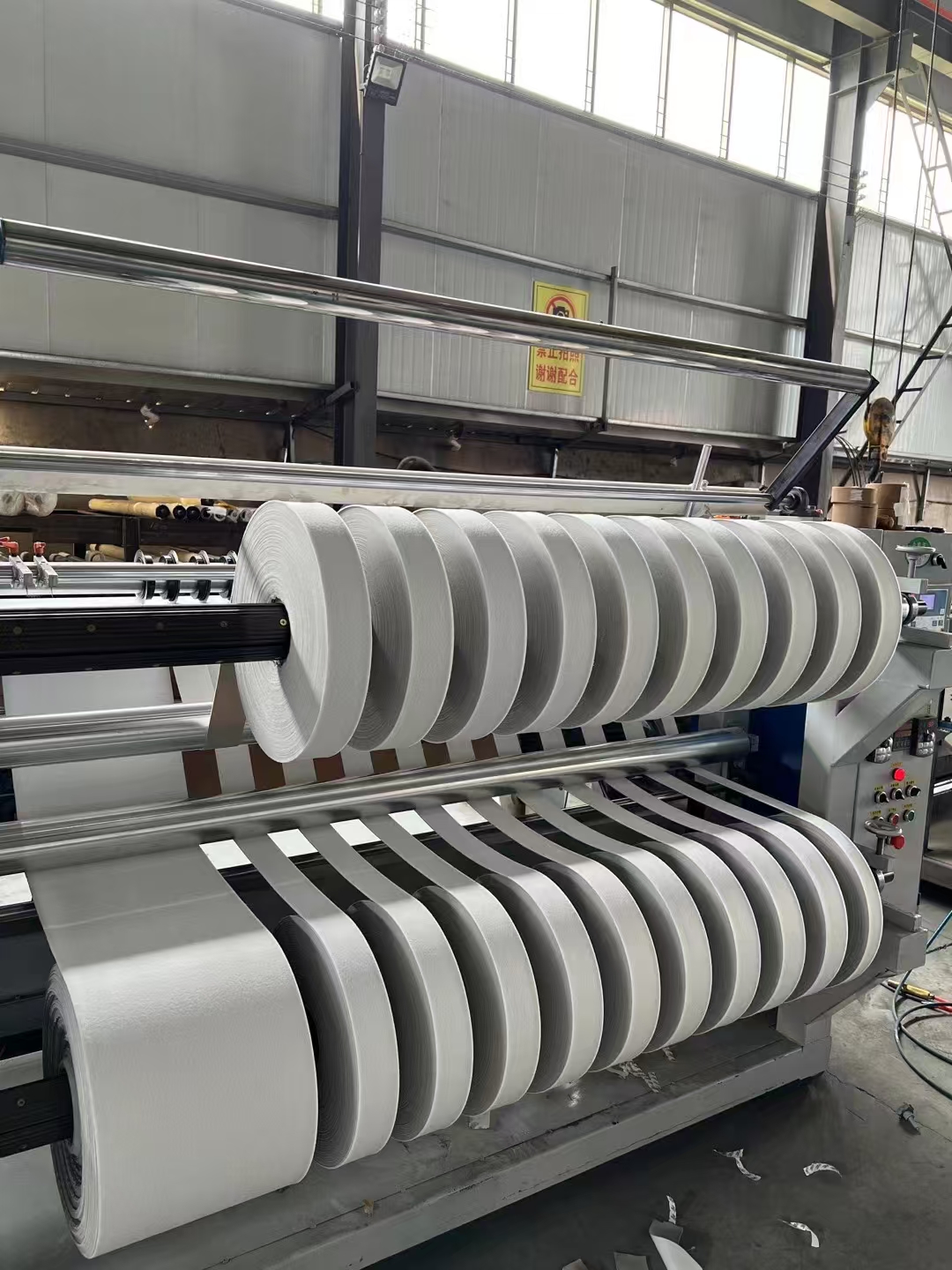

NONWOVEN CUTTING MACHINE:

This machine is suitable for scuttling and rewinding of various super large coils, such as 30G/ M2-300g /M2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, valve pocket bottom film, tin foil and other coils

CHARACTERISTICS:

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, central winding mode host adopts frequency conversion speed regulation, to maintain the balanced operation in acceleration.

2. Automatic meter, alarm function. Winding adopts A, B inflatable shaft structure, easy to unload operation. 3. Unwinding adopts photoelectric automatic correction and correction system, so that irregular materials can be cut normally.

4. Automatic discharge device for longitudinal cutting of waste edge with round knife.

5. Oil pressure type automatic feeding, with air expansion shaft.

6. Rail type automatic loading

TECHNICAL PARAMETER:

Model	MH-800	MH-1600	MH-2400
Max Raw Material Width	800MM	1600MM	2400MM
Max Discharge Diameter	Φ1500MM	Φ1500MM	Φ1500MM
Max Winding Diameter	Φ1100MM	Φ1100MM	Φ1100MM
Max Speed	10-400M/Min	10-400M/Min	10-400M/Min
Total Power	19kw	23kw	35kw
Weight	3500kg	4200kg	4800kg
Demenssions	360025002100mm	360031002100mm	360039002100mm
Min Cutting Width	min 20mm
