Steam Pressure Reducing Valve

9 month ago

7 0 

Zhengzhou guan hao yong International Trade Co.,

12 month

Product details

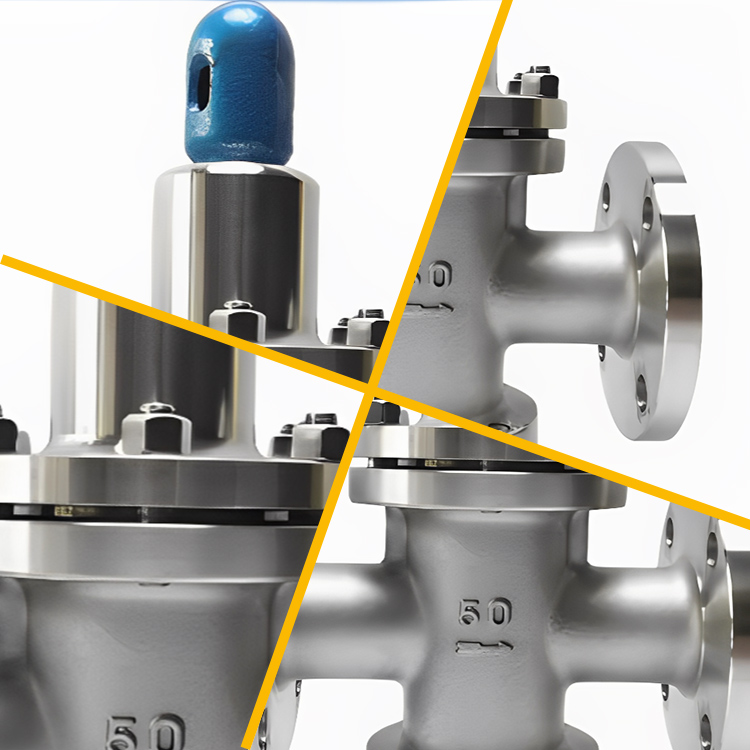

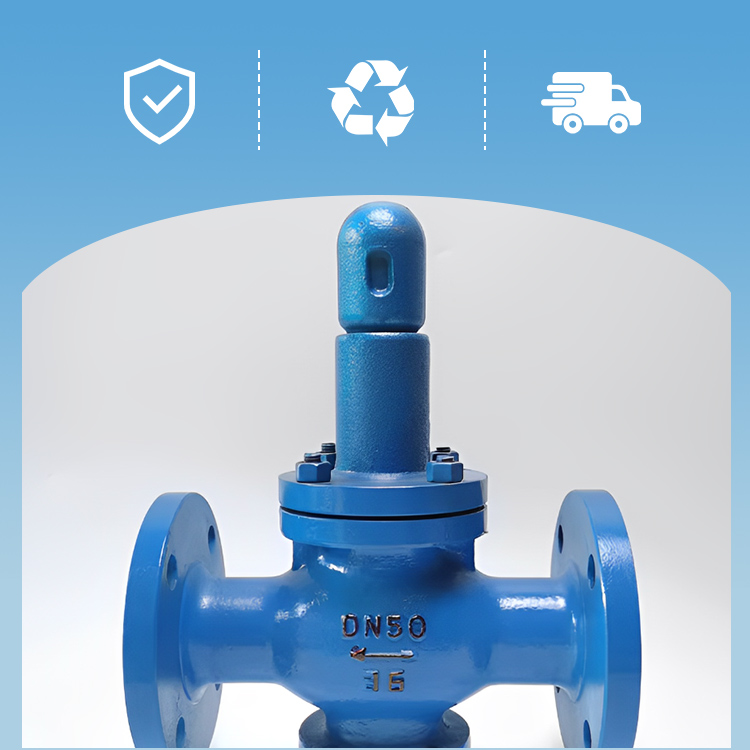

Stainless steel pilot piston steam pressure reducing valve is a pilot operated reducing pressure valve device used in steam pipelines. It adjusts the medium flow rate, reduces pressure, and maintains the pressure behind the valves within a certain range by controlling the opening and closing of the valve body. This type of reducing pressure valve usually consists of two parts: the main valve and the pilot valve. The main valve includes parts such as the valve seat, main valve disc, piston, and spring, while the pilot valve consists of parts such as the valve seat, valve disc, diaphragm, spring, and regulating spring. By adjusting the pressure of the regulating spring and using the diaphragm to sense the change in outlet pressure, the opening and closing action of the pilot valve drives the piston to regulate the overcurrent area of the main valve throttling part, achieving the function of pressure reduction and stabilization

Product Features

Stainless steel steam pressure reducing valve belongs to the pilot piston pressure reducing valve. It consists of two parts: the main valve and the pilot valve. The main valve is mainly composed of stainless steel structure valve seat, main valve disc, piston, spring and other parts.
The pilot valve is mainly composed of valve seat, valve disc, diaphragm, spring, regulating spring and other parts. The steam pressure reducing valve has made significant improvements on the basis of ordinary pressure reducing valves, increasing the piston area,
Changed the throttling structure. The steam pressure reducing valve has changed its sealing form, increased the flow area, and greatly improved its performance in terms of sensitivity, flow rate, and lifespan.
Stainless steel steam pressure reducing valves are mainly used in steam pipelines, suitable for steam pipelines with large flow rates, large changes in flow rates, and large changes in inlet pressure.

Application area

Stainless steel pilot piston pressure reducing valve is suitable for various media, including steam, gas, and liquid. They can be widely used in conjunction with gate valves and silencing check valve in industries such as chemical, petroleum, natural gas, metallurgy, pharmaceuticals, and food processing, especially in situations where precise pressure control and protection of sensitive equipment are required
