Product details

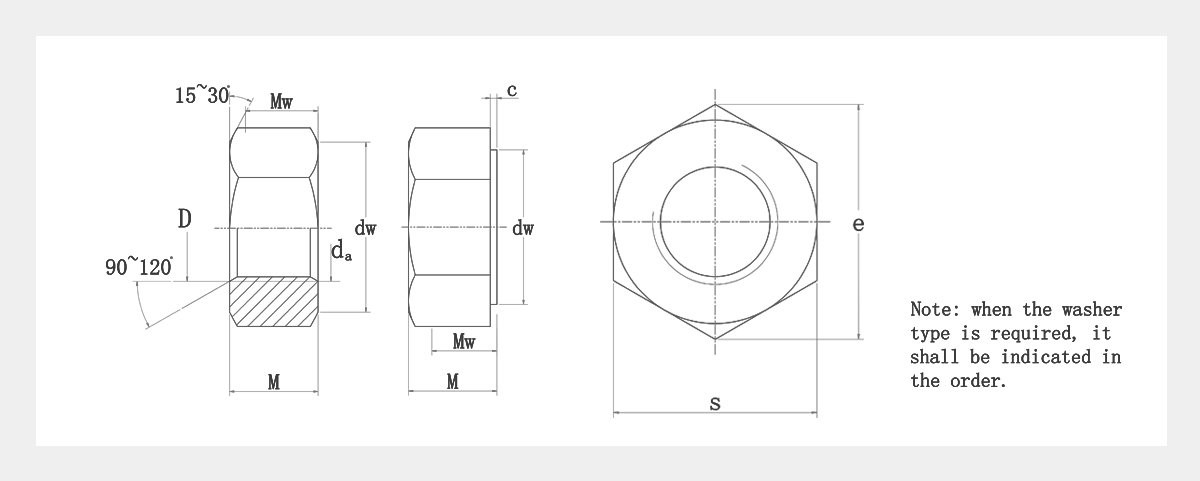

Black Oxide Hex Nuts Grade10/12 Hexagon Nut

Thread Size		M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24	M30	M36
D		M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24	M30	M36
P	Pitch	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2.5	3	3.5	4
c	max	0.2	0.2	0.3	0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8
c	min	0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2
da	max	1.84	2.3	2.9	3.45	4.6	5.75	6.75	8.75	10.8	13	17.3	21.6	25.9	32.4	38.9
da	min	1.6	2	2.5	3	4	5	6	8	10	12	16	20	24	30	36
dw	min	2.4	3.1	4.1	4.6	5.9	6.9	8.9	11.6	14.6	16.6	22.5	27.7	33.3	42.8	51.1
e	min	3.41	4.32	5.45	6.01	7.66	8.79	11.05	14.38	17.77	20.03	26.75	32.95	39.55	50.85	60.79
m	max	1.3	1.6	2	2.4	3.2	4.7	5.2	6.8	8.4	10.8	14.8	18	21.5	25.6	31
m	min	1.05	1.35	1.75	2.15	2.9	4.4	4.9	6.44	8.04	10.37	14.1	16.9	20.2	24.3	29.4
mw	min	0.8	1.1	1.4	1.7	2.3	3.5	3.9	5.2	6.4	8.3	11.3	13.5	16.2	19.4	23.5
s	max=nominal size	3.2	4	5	5.5	7	8	10	13	16	18	24	30	36	46	55
s	min	3.02	3.82	4.82	5.32	6.78	7.78	9.78	12.73	15.73	17.73	23.67	29.16	35	45	53.8
Thread Size		M42	M48	M56	M64	(M3.5)	(M14)	(M18)	(M22)	(M27)	(M33)	(M39)	(M45)	(M52)	(M60)
D		M42	M48	M56	M64	(M3.5)	(M14)	(M18)	(M22)	(M27)	(M33)	(M39)	(M45)	(M52)	(M60)
P	Pitch	4.5	5	5.5	6	0.6	2	2.5	2.5	3	3.5	4	4.5	5	5.5
c	max	1	1	1	1	0.4	0.6	0.8	0.8	0.8	0.8	1	1	1	1
c	min	0.3	0.3	0.3	0.3	0.15	0.15	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3
da	max	45.4	51.8	60.5	69.1	4	15.1	19.5	23.7	29.1	35.6	42.1	48.6	56.2	64.8
da	min	42	48	56	64	3.5	14	18	22	27	33	39	45	52	60
dw	min	60	69.5	78.7	88.2	5	19.6	24.9	31.4	38	46.6	55.9	64.7	74.2	83.4
e	min	71.3	82.6	93.56	104.86	6.58	23.36	29.56	37.29	45.2	55.37	66.44	76.95	88.25	99.21
m	max	34	38	45	51	2.8	12.8	15.8	19.4	23.8	28.7	33.4	36	42	48
m	min	32.4	36.4	43.4	49.1	2.55	12.1	15.1	18.1	22.5	27.4	31.8	34.4	40.4	46.4
mw	min	25.9	29.1	34.7	39.3	2	9.7	12.1	14.5	18	21.9	25.4	27.5	32.3	37.1
s	max=nominal size	65	75	85	95	6	21	27	34	41	50	60	70	80	90
s	min	63.1	73.1	82.8	92.8	5.82	20.67	26.16	33	40	49	58.8	68.1	78.1	87.8
