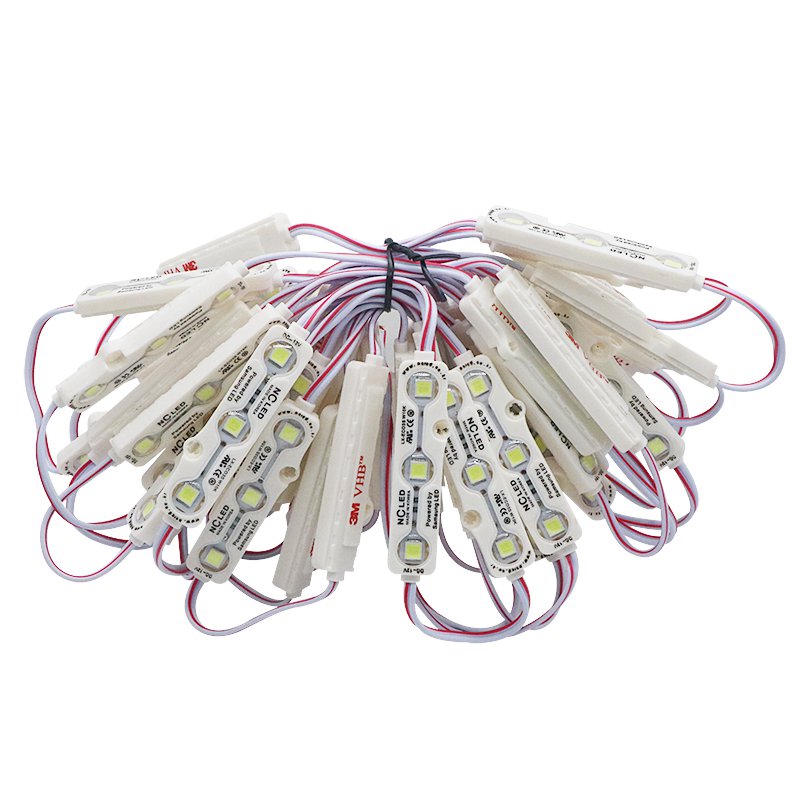

3030 3 LED sidelight module led
4 year ago
How to use LED modules and precautions?
When installing Led modules in blister letters or boxes, try to use three-point and four-point lines as much as possible. When connecting, try to make the whole letter or the box form a loop or multiple loops, that is, use red and black power supplies. The line connects the LED modules at the end of each stroke according to the positive and negative poles.
The number of series connection groups of power port outlet modules should not exceed 20-50 strings, otherwise the voltage attenuation of the end modules will reduce the brightness. Although the formation of a loop can avoid the occurrence of attenuation, it should not be connected to too many LED modules.
When installing the LED module without water-proof treatment in the font or box, prevent rainwater from entering the font or box.
Parameter Details:
Product

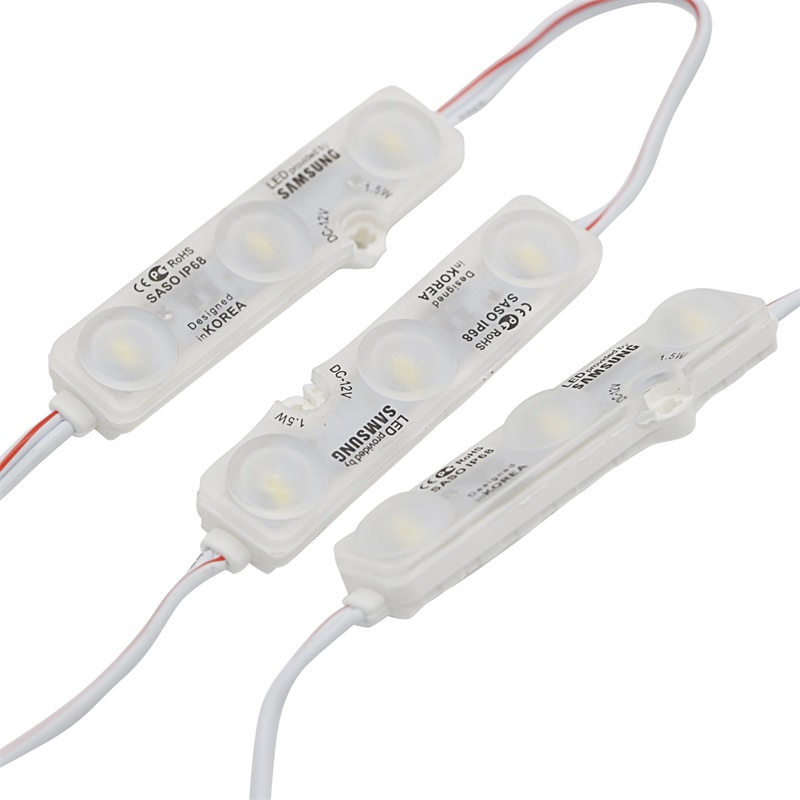

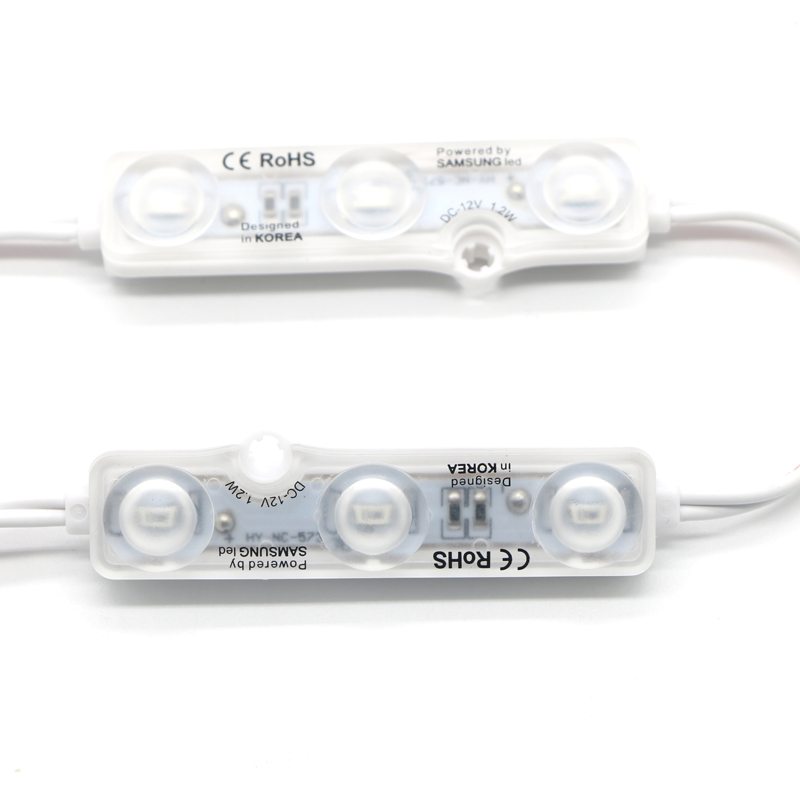

SMD5730 3 LEDS led Module
Working Voltage
DC 12V
LED Quantity
3LEDs/pcs
LED module size
L69mm*W18mm
Service life
50000Hours
Led light color

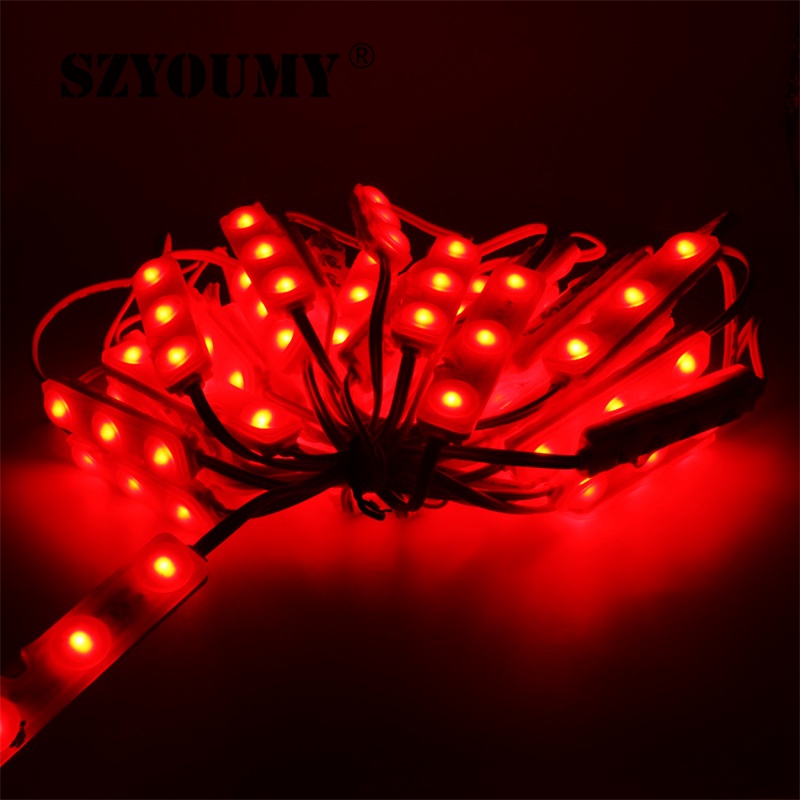

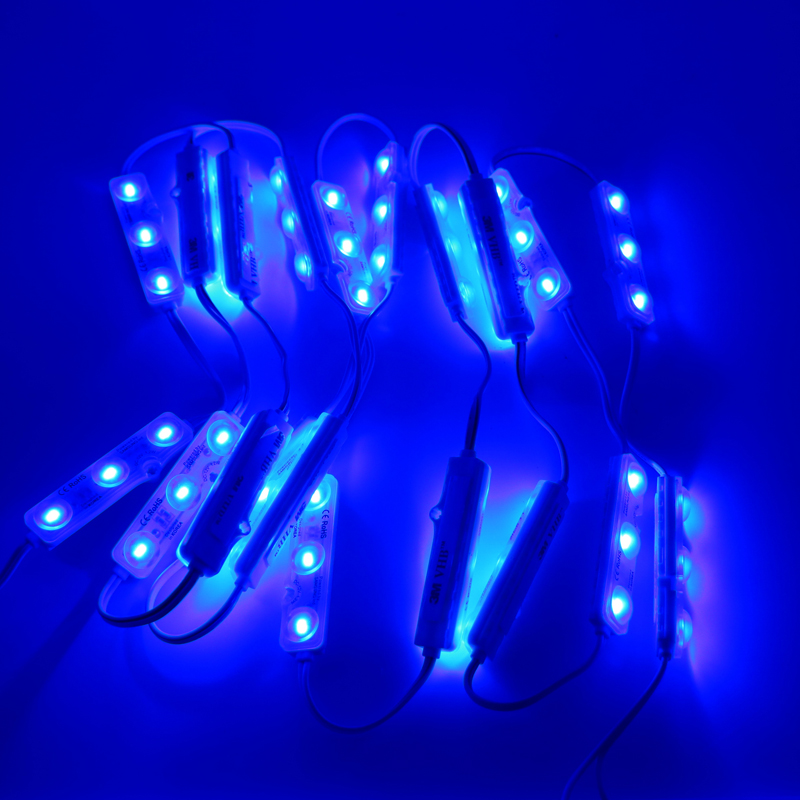

Warm White(2800-3200K), Pure White(6000K), Cold White(8000-9500K),green, blue, red, yellow
PCS/string

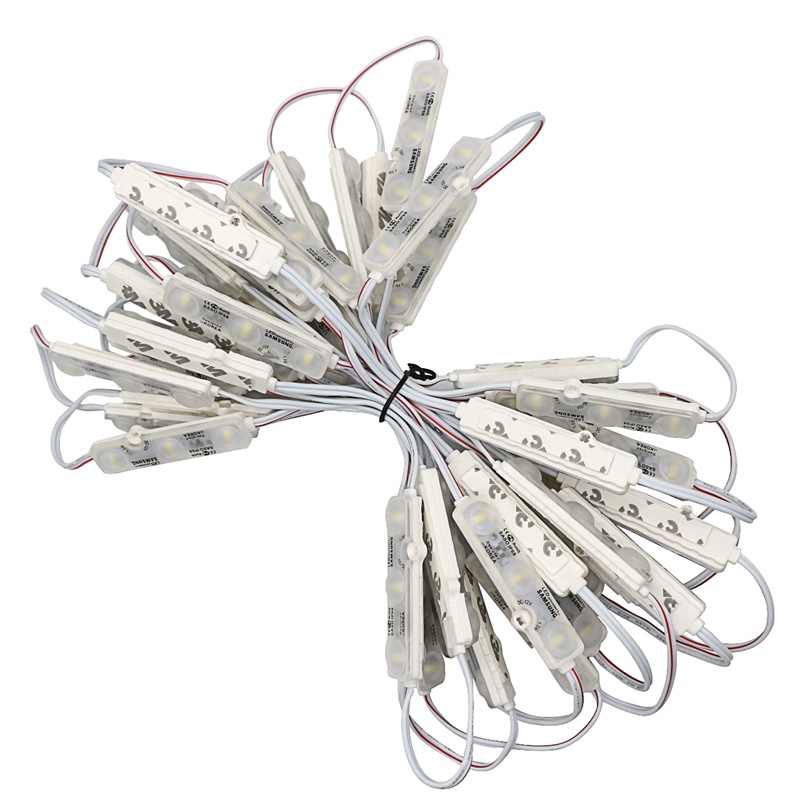

50pcs/string
Cut Length
Every piece can cuttable
Wattage and lumen
1.5W/pcs, 50lm/pcs
Beam angle
180 degree
Operation temperature
-20℃-+45℃
Storage temperature
-20℃-+60℃
Waterproof level
IP68 Waterproof
