cold strip slitting machine

Main technical parameters of flux cored strip slitting machine

1. Steel belt width (mm): 14

2. Pay-off motor power: Passive type (un-powered type)

3. Take-up motor power: 11KW

4. Winding displacement form: Ball screw winding displacement

5. Tension control: Sensor-controlled tension arm

6. Take-up speed (m/min): 4m/s

7. Take-up spool diameter (mm): ￠800

8. Air supply: 0.5-0.6Mpa, clean and dry air source for oil mist removal

9. Braking time: Normal braking≤60S

                         Quick braking≤10S

                         Emergency braking≤3S

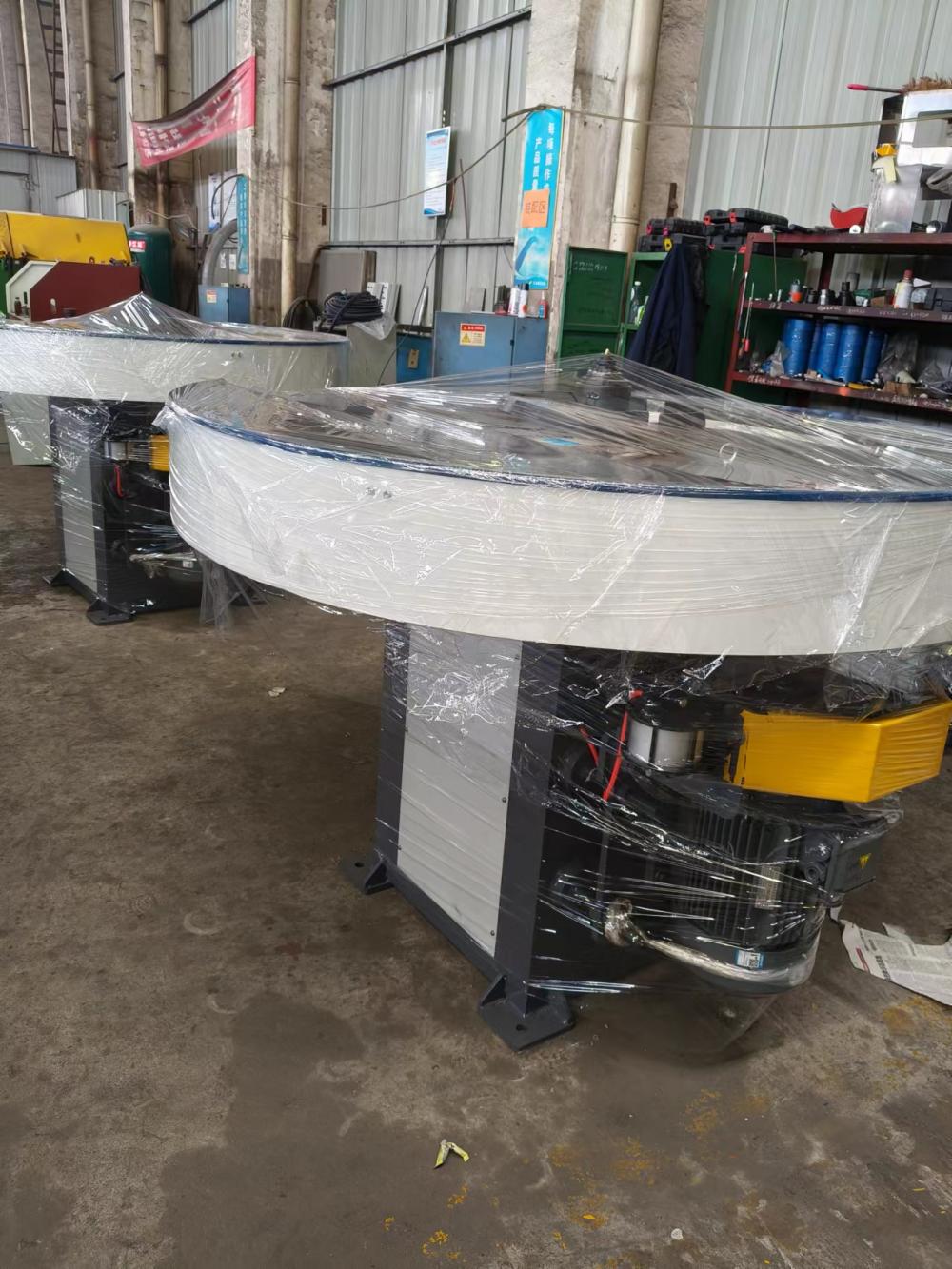

IV.Main working principle:FD1600 vertical passive pay-off machine machine: Place the steel belt cut and coiled in the last process on the vertical passive pay-off machine by driving or a special sling. At this moment, the expansion sleeve is in an expansion & tension state. Put the steel belt in the expansion sleeve. Then use a special spanner to loosen the expansion sleeve to cause the expansion sleeve to tightly enclose the steel belt. GZL00 Support rack: Pull out the steel belt from the vertical passive pay-off machine, and allow it to enter the second group of horizontal guide rollers by way of the first group of horizontal guide rollers.

SD800 Spool take up machine: The steel belt from the roller support is pulled through the well-shaped guide roller and wire-pressing guide roller, and then it is wrapped around the spool. At this moment, start the device, gradually from a low speed to a normal working state. Use the tension arm to control the pay-off speed.

The next steps are strip rewinding machine,flux cored forming machine,flux cored wire drawing machine,layer winding machine,drum packing machine

The assisting machine are butt welding machine,pointing machine,spoolsXZ
*.
