strip shearing machine

flux cored wire drawing machine line

1-Shearing machine

2-Flux cored rewinding machine

3-flux cored forming machine and wire drawing machine

4-Layer winding machine or drum packing machine

I Purpose

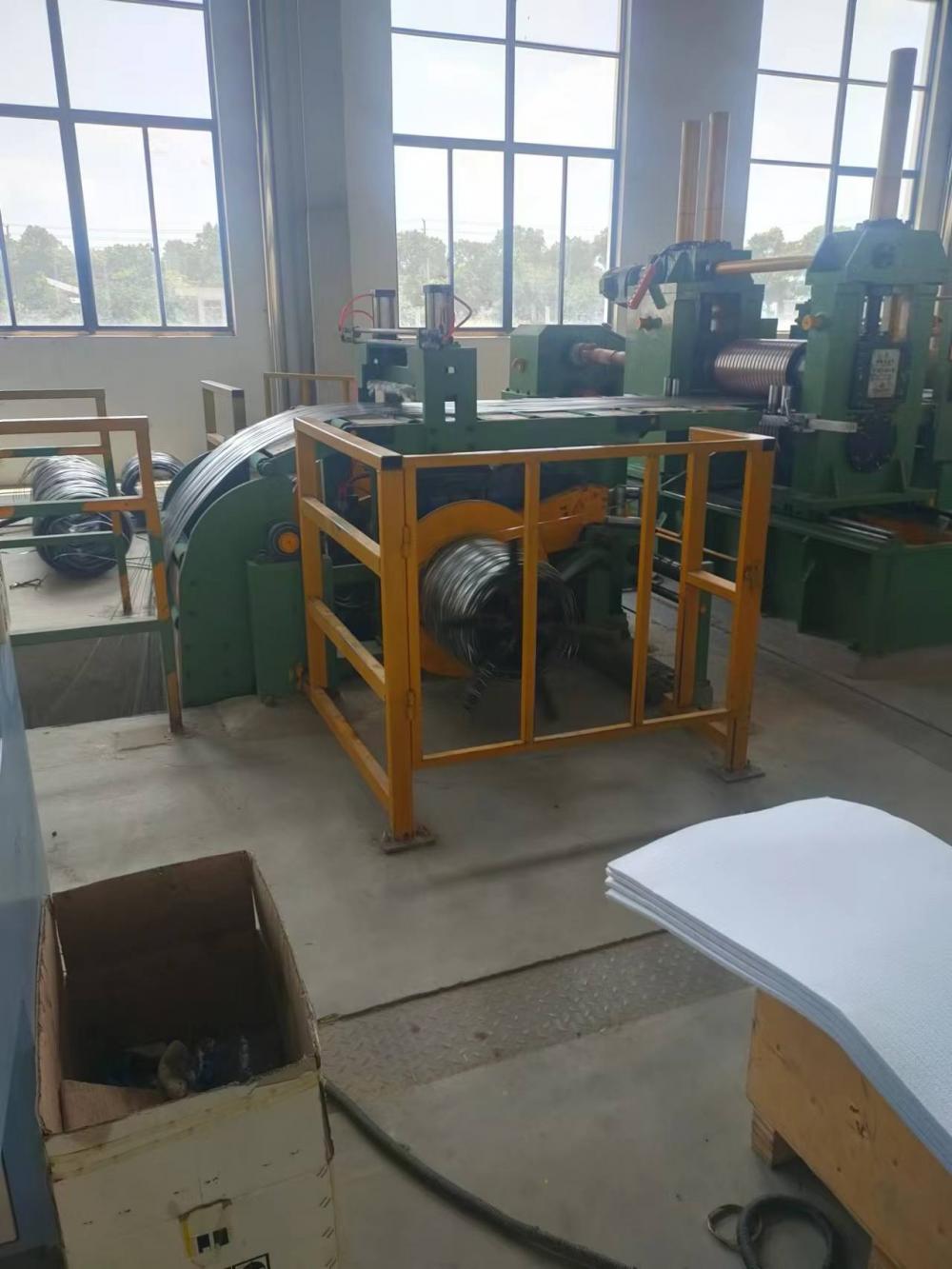

The JMZJ30(A) Steel strip shearing(slitting)machine line is used for longitudinally shearing metal coils and rewinding the sheared strips. This machine set has been applied to the flux-cored wire industry. It is characterized by easy operation, high shear quality, high utilization rate of material, stepless and adjustable shearing velocity, etc.

II Main parameters

1. Shear material: Carbon steel belts and stainless steel belts

2. Specifications of raw material coils

(1) Outer diameter: φ1250mm

(2) Inner diameter: φ300mm～φ400mm

(3) Width: Max300mm

(4)Weight: 1,500kg

3. Material thickness

Carbon steel belt: 0.8-1.0mm

4. Parameters of sheared strips:

 (1) Width: b≥5mm

        Number of sheared strips: max 15 belt

     (2) Precision: width allowance of strips: ±0.05mm

        Burr: ≤0.05mm

        Side non-straightness tolerance: 1/1000mm

5. Shearing velocity: ≤60m/min

6. Inner diameter of coil winding: φ350mm

7. Outer diameter of coil winding: ≤φ1000mm

8. Outer diameter of winding baffle disc: φ1200mm

9. Weight: ≤7000kg
