street sweeper
3 month ago
Product details
The "Kailifeng" series road sweeper is a large-scale road cleaning equipment developed and produced by Hubei Kaili Special Purpose Vehicle Co., Ltd. according to market demand, which combines dust removal, suction, and scanning. It has multiple functions such as road cleaning, low-pressure washing, spray dust reduction, etc. It is suitable for mechanized cleaning and cleaning of urban roads, highways, municipal squares, large factories and mines, airports, docks, tunnels, bridges and other roads.
FEATURES
FEATURES
● Efficient and stable design with human nature

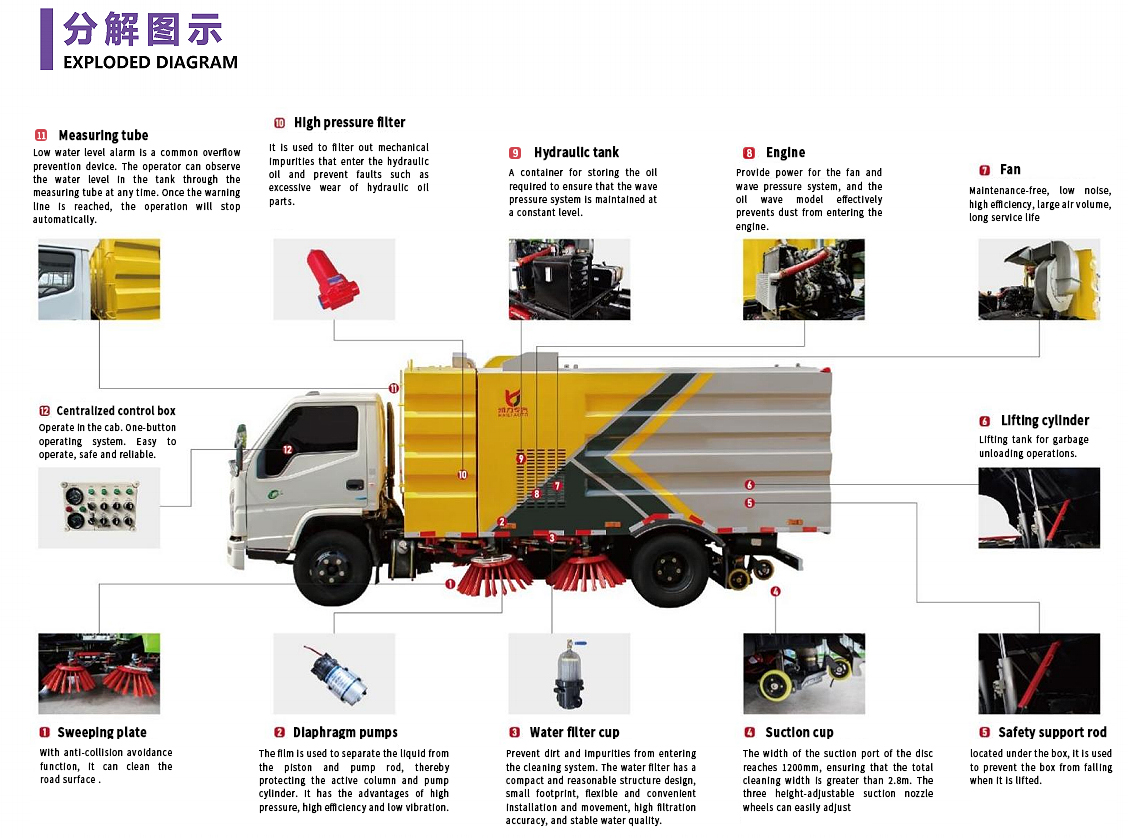

Super strong dust collection technology: optimizing the internal gas flow field and structural design of the suction nozzle, increasing the suction capacity by 10%. The "mid mounted four disc brush+rear suction nozzle" design automatically rotates inward during vehicle operation to gather garbage in the middle of the vehicle, making it convenient for the suction cup at the rear of the road sweeping vehicle to suck all garbage into the cabin at once, improving the overall cleanliness rate. Pipeline stabilization technology: Weisen Bole hydraulic valve group, CNC cold bending precision seamless steel pipe, hydraulic pipeline adopts internationally advanced sleeve type joints to ensure the stability and smoothness of the hydraulic action of the whole vehicle, greatly reducing the failure rate of the hydraulic system.
Humanized design: Ultra wide rear door, opening angle greater than 85 degrees, garbage bin tilting angle greater than 40 degrees, making it easier to dump garbage and clean the garbage bin.
●Strong practicality of technology and environmental protection
Fan noise reduction technology: Through simulation analysis, optimize fan blades and design low-noise fans. And based on the spectral characteristics of the aerodynamic noise of the dedicated fan, a dedicated fan muffler is added to reduce the overall operating noise of the vehicle by 5%. Power matching technology: Optimizing the engine to match the working conditions, using a secondary engine to drive the fan and hydraulic system, ensuring that it can continue to work during driving. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic disengagement of the auxiliary engine and the fan during no-load start stop, and improve the service life of the auxiliary engine.
● Easy to operate, efficient, and durable
Fully electronic driving control, with the instrument panel on the control box displaying operational parameters, fault information, etc. The video surveillance function makes the work status clear at a glance, making it easy for drivers to operate and maintain. Adaptive technology for cleaning mechanism: The cleaning mechanism can automatically avoid obstacles, has protection and reset functions, rebounds when encountering obstacles, and resets after crossing obstacles. Improve the cleanliness rate of homework and effectively extend the service life of sweeping hair by more than 15%.
● High end brand with reliable quality
By using Sanyo motors and well-known brands such as Jiangling, Yuchai, and Kangji as auxiliary engines, the road sweeper can work longer and have stronger power.
At the same time, it is equipped with brand accessories such as Schneider control switches, Wesenborg solenoid valve groups, Wesenborg hydraulic cylinders, and a complete hydraulic system to ensure the service life of the vehicle.
NOTE
NOTE
●Please refer to the accompanying vehicle chassis user manual for the running in mileage of the car chassis, and perform maintenance after running in, such as cleaning the air filter element and replacing the engine oil. During the running in period, pay attention to checking for any abnormal vibration, noise, and rain leakage in each part, whether the fan drive belt and hydraulic pump drive belt are slipping, and whether the electronic control switches and instrument indicators are normal.
●Before using the vehicle, it is necessary to check whether there is any oil leakage, water leakage, or air leakage in the entire vehicle. If necessary, it should be eliminated. Check the oil level of the main and auxiliary engines, the water level of the radiator tank, and add oil and water if necessary. Check whether the water system, sweeping plate, suction cup and other structural components are normal.
●During winter, before stopping the vehicle, follow the product manual to perform waterproof and antifreeze operations, and drain any remaining water in the water circuit, water pump, water valve, nozzle, and other components.
●When the engine is running, maintenance or repair of the chassis auxiliary engine, water pump, and hydraulic system is not allowed.
●When cleaning the vehicle, do not use high-pressure water to directly flush the top of the hydraulic oil tank, auxiliary engine, radiator, solenoid valve, coil, and terminal parts.
●To ensure the safety of operators and equipment, the safety pole under the garbage bin must be opened during debugging, installation, testing, and maintenance operations. Secure the safety pole with a safety pin to ensure the safety of personnel and equipment. Before resetting the trash can after homework, the safety pole should be lowered first.
| wheelbase （mm） | 2600 |
| Tire Size | 175R14LT 8PR |
| engine | L14A15Q6 |
| engine power（kw） | 83 |
| dimensions（mm） | 5010/1660/2170 |
| Garbage bin capacity（m*3） | 1.5stainless steel |
| Cleaning width（mm） | 1800-2200 |
| Maximum cleaning capacity（m*2/h) | 44000 |
