Aluminum Shavings Shredder Machine
4 year ago
Single shaft shredder model: SR600
Cylinder stroke: 500mm
Rotor diameter: 220mm
Main shaft speed: 73rpm
Hydraulic station power: 1.5kw
Main motor power: 18.5kw
Cutting chamber size: 510x600mm
Discharge height H1: approx 500mm
Dimension (LXWXH): 1850x1300x1700mm
Weight: approx 1600kg

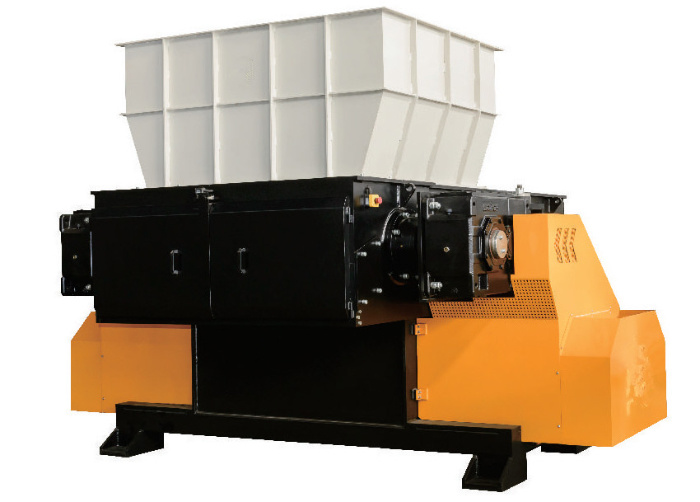

SR series single shaft shredder is a metal recycling machine aluminum recycling machine steel recycling machine scrap recycling machine crushing machine with perfect design. It's widely used and qualified to shred aluminum scraps. The suitable screen can be chosen according to fed materials and the next processing requirement.

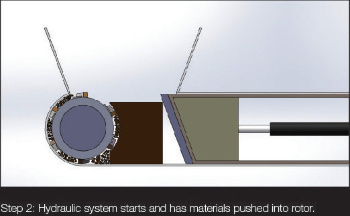

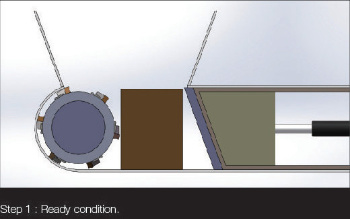

Hydraulic system makes pushing device run and motors pass power into rotor by belt and gearbox. Rotor upper and bottom stator blades will work as cutting motion. Materials are fed into the hopper and pushed by pushing chamber between rotor blades, upper and bottom stator blades. After being shred, fed materials will become granules.

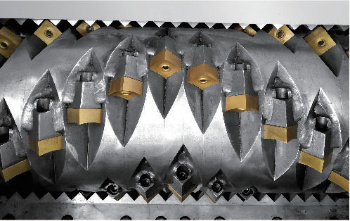

Rotor: V type configuration with edge cutters on two sides to prevent material accumulation.

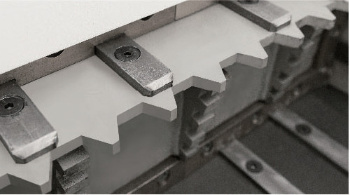

Rotor is made of bead welding and wearing layer processing with the merit of long-life shredding very hard & wear-resistant materials.
Pushing device: Its outer steel plate and pushing chamber are finely processed and kept space. Pushing chamber is made of thickening-processed bottom plates which prevent materials from causing big influence on them.

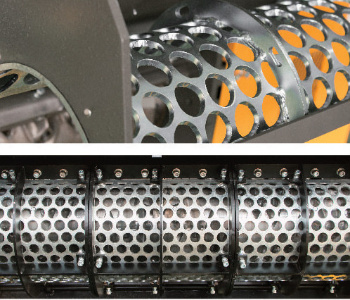

Screen: Various screens can be chosen for different shredding requests and materials.
To keep operator safe, machine will automatically stop when its screen is opened.

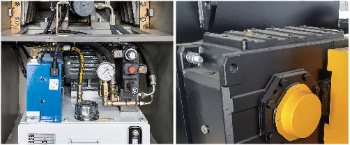

Power device: smart hydraulic control, when fragile materials are shred, oil cylinder will run at the best speed.
2. Packaging&Delivery for Scrap Aluminum Scraps Automatic Metal Shredder
Packaging detail: Multiple protection methods in order to lower risks during delivery process.
Shipping detail: 30 days.
3. Our service for Scrap Aluminum Scraps Automatic Metal Shredder
1) Free product documents translation into your language, worry-free to operate and maintain.
2) Engineers available to service machinery overseas.
3) Customer datebase with all customers' records in it.
4) 7*24 technical phone service.
5) One year guarantee and lifelong maintenance.
6) Spare parts: Supply one set of spare parts for free, tool box, operation book.
4. Company information
1) Qualifications: ISO9001: 2008, CE, TUV, SGS, over 15 national patents, over 8 honors.
2) Technical expertise: Annual output of various equipment are more than 1, 000 sets with the sale up to million dollars.
3) Expos and Customers: Over 20 countries since 1997, we have been to 8 Countries' expos including 3 continents.
Welcome your coming!
5. FAQ
1) Are you a factory or a trade company?
We are manufacturer with own factory for more than 30 years.
2) How can I trust your company?
A. With professional design and sales team, we can serve you the perfect solution with lowest cost.
B. Assessed by third party, national patents for all equipment.
C. Welcome to inspect any time, we are near Shanghai airport.
D. About the machine, we are the first manufacturer of briquette machine, hydraulic balers, alligator shears, shredders are also our main products.
3) Is your price competitive?
Surely we will give you best factory price based on superior product and service.
Quality first, Service best!
Contact us! We would like to tell you more about our metal scrap processing machine shredder.
