ADSS-24F singlemode G652D span 100M

What is ADSS outdoor fiber optic Cable?

stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between structures without the use of conductive metal parts. With a maximum of 144 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building to town-to-town deployments, ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop topologies. A full transmission circuit architecture with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures.

Advantages

The use of ADSS fiber optic cable has lots of advantages. The cables’ overall weight and diameter are small, which is good news for towers and poles. Moisture and chemical attack are protected by the rugged construction. It’s a versatile application that can be used for most outdoor overhead deployments. The overall transmission range is also sufficient. Once ADSS cable installation is done, it will have a maximum service life of up to thirty years.

Applications

1, Electricity companies, telecommunications companies, railways and private network groups for telecommunications

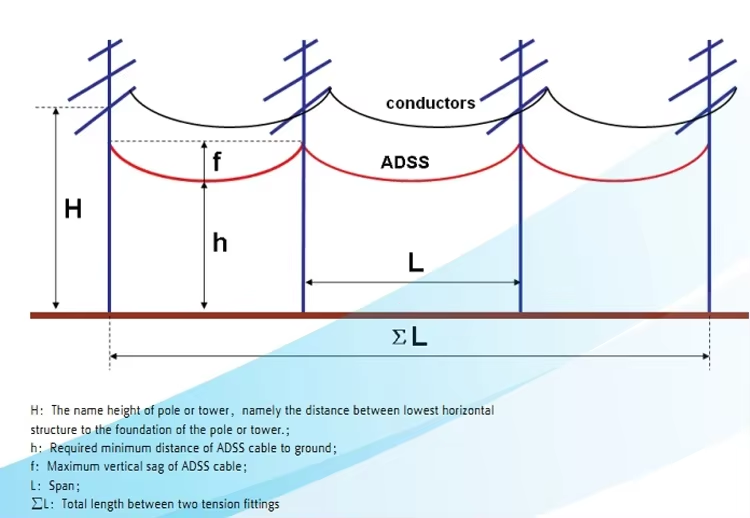

2, Designed for installation on distribution and transmission lines

3, Can be installed close to conductors

4, Ideal for underbuilt applications that require minimal downtime

5, For telecommunications networks that place a premium on quick, low-cost setup

6, For FTTX applications such as FTTH (Fiber to the Home)

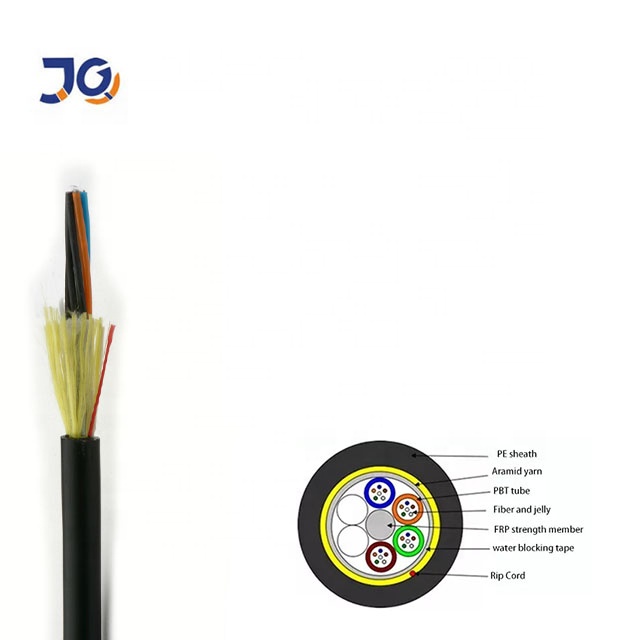

parameter of ADSS -24F fiber cable

fiber count	structure	fiber per tube	loose tube diameter(mm)	FRP  diameter(mm)	Nominal thickness of outer jacket(mm)	cable diameter(mm)	cable weight (kg/KM)
24	1+6	6	2.2±0.1	1.8	1.7	9.8±0.2	95



Packing and delivery

Packaging Details

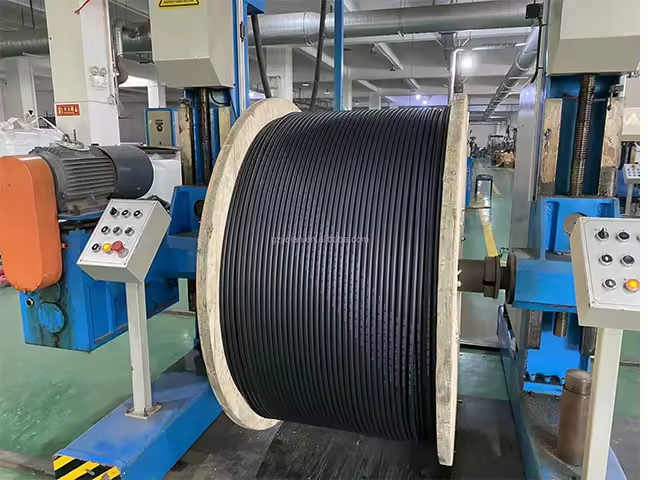

1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)





Company profile

        Guangzhou Jiqian Fiber Optic cable Co., Ltd. is one professional Fiber Optic Cable supply manufacturer in Guangzhou, China. Our Associated factory is located in Guangzhou, very close to Shenzhen. Our Products include:outdoor optical cable ,indoor optical cable ,FTTH cable  ,Adss optical cable and other optical cable series , products are strictly in accordance with international standards ,All these Fiber optic cable are widely used for indoor and outdoor project.

         All our products are passed the CE, RoHS testing, these Optical cable are 100 % testing to make sure the quality. Our Product have mature production technology, strict production management to provide users with hight quality products and perfect pre-sale,sale , after-sale service ,with the good reputation and advanced technogy.

         Meanwhile We have professional engineer support, high efficiency sales team and competitive price superiority, to attract customers from all over the world, we export to over 40 countries, including Afica, Europe, Central Asia ,Middle east and South Africa and North Africa ,to be a qualified supplier to operators in various countries .





FAQ



1. Are you factory direct?

we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables such as ADSS ,GYTA, GYTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables

3. Product quality guarantee period?

25 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
