ASTM F436 Beveled Washer

8 month ago

8 0 

10 year

Product details

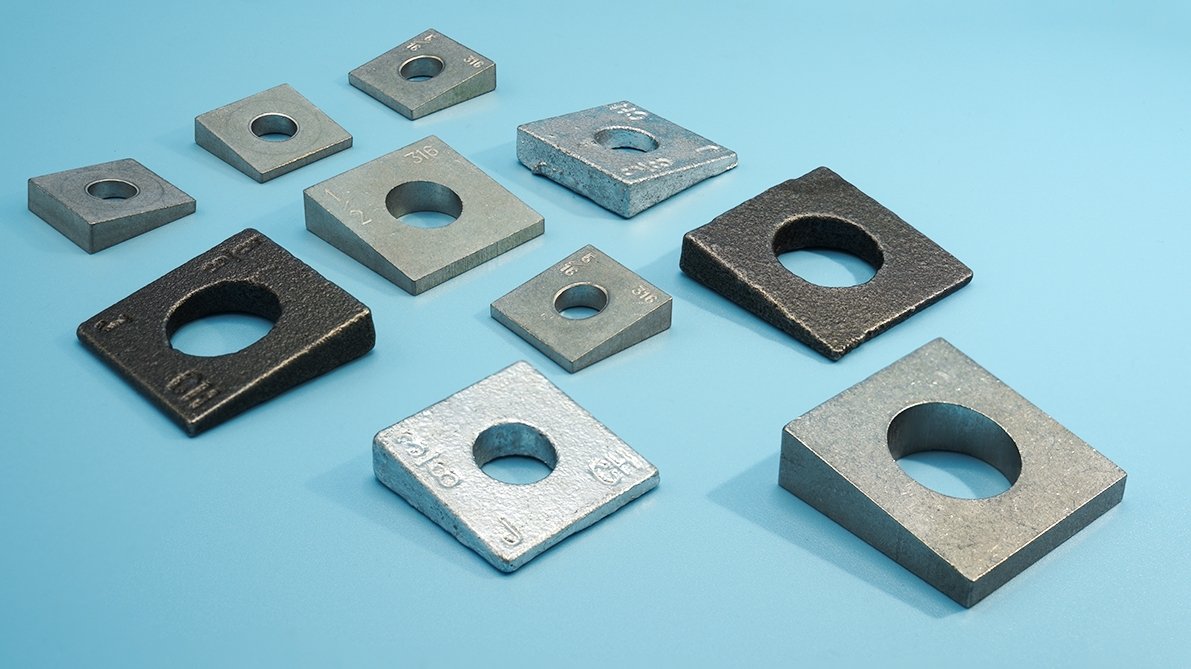

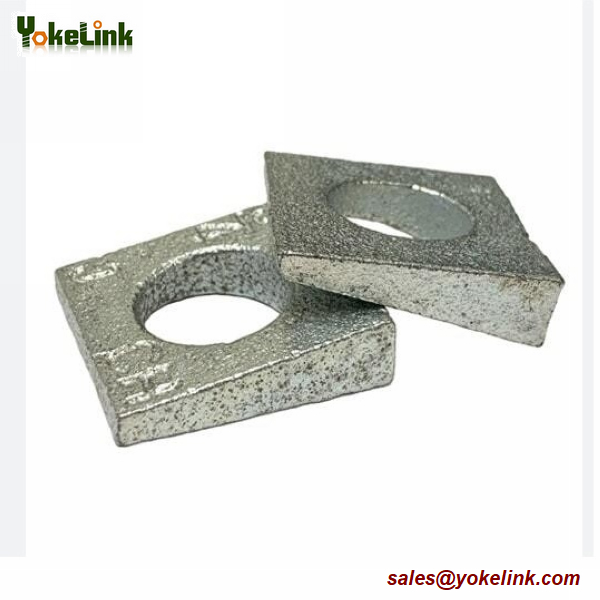

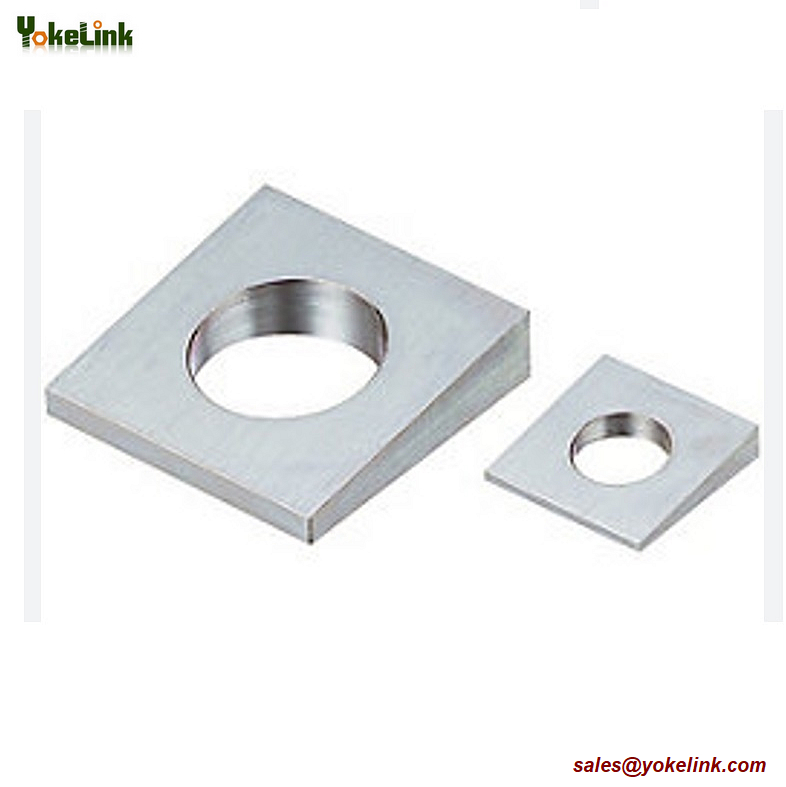

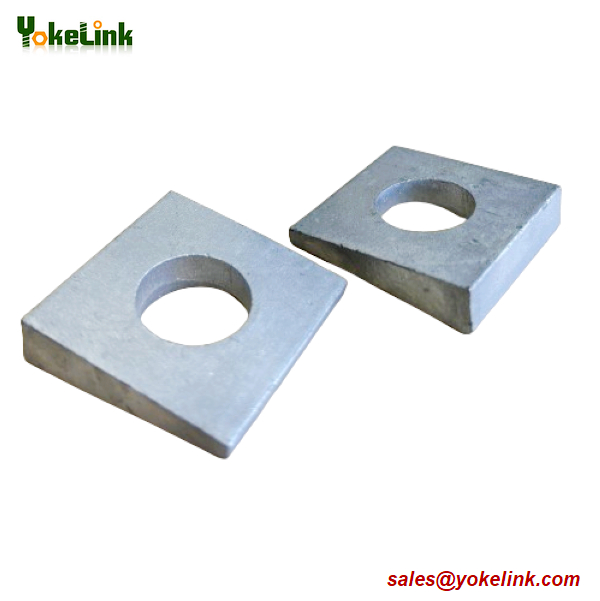

ASTM F436 Hardened Beveled Washer

Yokelink is a Manufacturer of Beveled Washers, comes in square and circular shapes, in nominal sizes 1/2 through 1 1/2 in., with a beveled 1 to 6 ratio surface for use with American standard beams and channels. Bevel Washers are designed for leveling and shimming purpose and are commonly used when bolting through the flanges of L-beams. These washers are angled spacing components that are used to correct the uneven or imperfect surfaces. Our Range of Beveled Washers are made from medium carbon steel and then hardened as per ASTM specifications. Usually, Beveled Washers are intended to recompense for lack of parallelism in structural applications involving american standards.

Unlike flat washers which are used for parallel mating surfaces, beveled washers are used for non-parallel surfaces. A beveled washer is a special type of washer that has a sloped side and a flat side. The sloped side can accommodate for different installation angles and allows the two non-parallel faces to be mated and aligned with a stable and tight fit. There are different types of beveled washers that come in both various shapes and sizes and with different surface finishes that can affect the strength of a joint. Therefore, it’s important to pick the right type of beveled washer for your project to ensure a strong, resilient joint.

Beveled washers can come in a variety of materials – from metals to rubbers and thermoplastics. For structural and load-bearing applications, beveled washers are commonly made from metals. Oftentimes, these metal beveled washers will also be surface treated so they can be used outdoors and have a high degree of environmental resistance. Some common metals and coatings used for beveled washers are listed below:

Plain iron
Hot-dipped galvanized steel
304 stainless steel
316 stainless steel
Plain cast-iron washers are highly

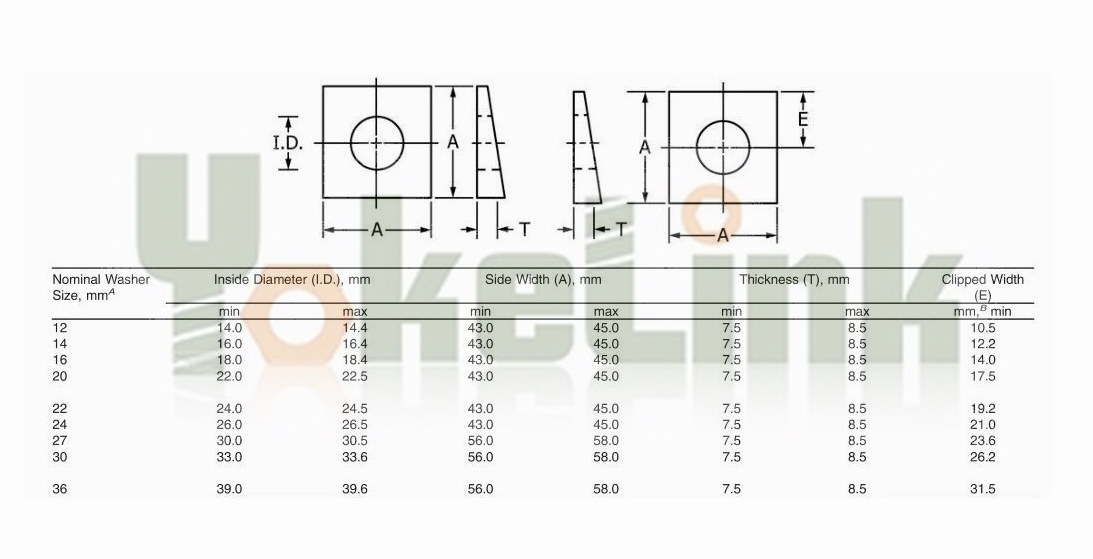

Specification:
