oxygen generators with advanced technology

Fabricated service oxygen generators with advanced technology

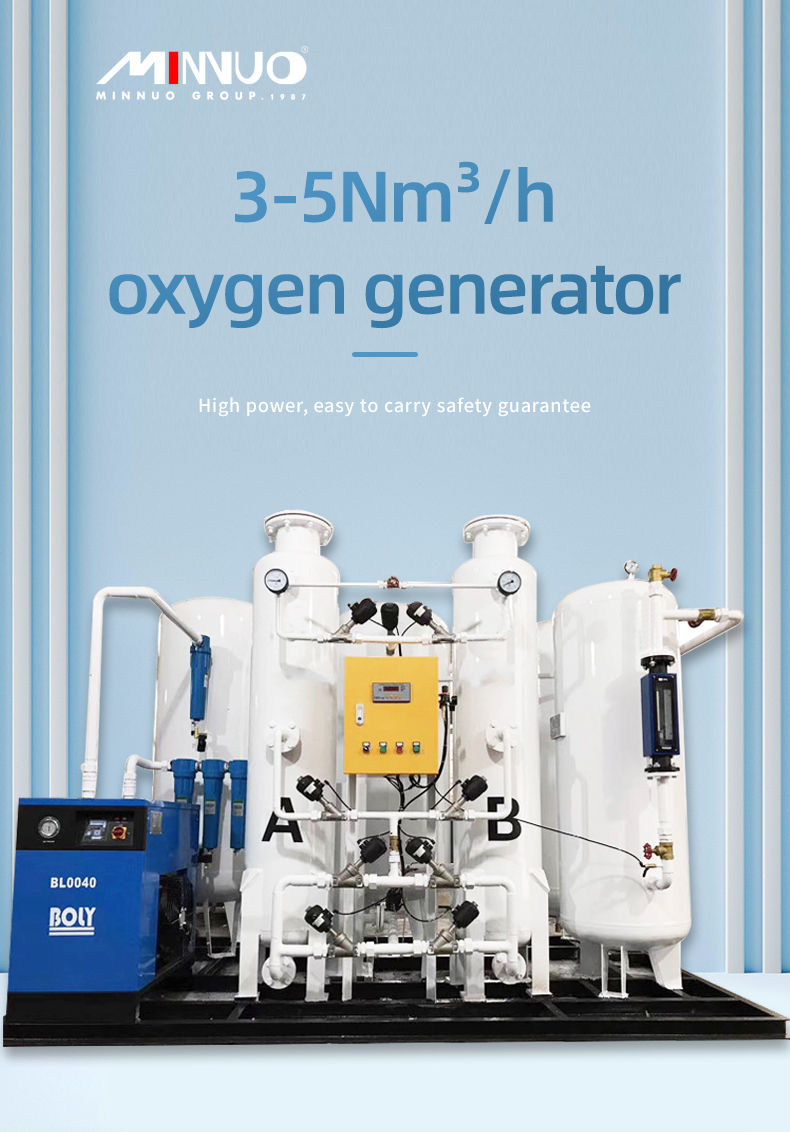

The oxygen generator is mainly consisted of an air compressor, a refrigerated dryer, an activated carbon adsorber, an air buffer tank, a switching valve, an adsorber, and an oxygen process tank.The purity is more than 93%,can use for medical use for general hospitals homes factories and factories.You can install them into the container so that it can movable anywhere.

Fabricated service oxygen generators with advanced technology

⒈The oxygen generator is easy to use, the volume is small, and the oxygen production is cheap with high cost performance.

⒉Easy to operate, adopt automatic program control, low operation and maintenance costs.

3.Can be moved anywhere.

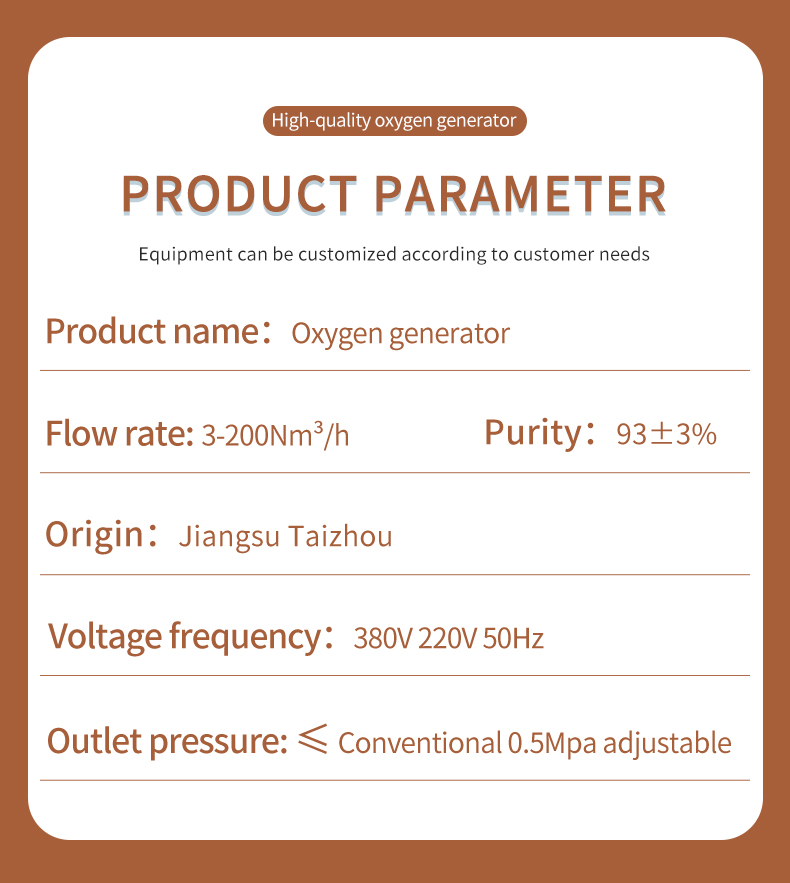

Oxygen Plants parameter

1. Model and parameters of movable oxygen plant Specification: MN-5m3/h

   Oxygen purity: ≥93%±2

   Oxygen pressure: <0.3Mpa
2. Compressed air index
   Flow rate: ≥5Nm3/h
   Pressure: ≥0.8Mpa
   Temperature: ≤45℃
   Containing oil: <0.003mg/m3
3. Power supply: 380V/50Hz 220V/60Hz

Our service

1. Reply in 24 hours.
2. OEM or fabrication service is OK.
3. Every oxygen generator will be tested before the delivery.
4. Delivery on time and excellent after-sales service.
5. High quality, high cost performance.

6.Video installation instructions, after-sales maintenance and repair.
