07Fully automatic inspection of flame size equipment and machine manufacturers for lighters

Key points of installation
1. The general principle is to install the detector at twice the height of the highest target in the protected area. Within the effective range of the detector, it shall not be blocked by obstacles, including transparent materials such as glass and other separators. At the same time, it can cover all targets and areas requiring protection, and it is convenient for regular maintenance.
2. When installing the detector, it is generally inclined downward at an angle of 30-45 °, that is, it can look down and forward, and reduce the possibility of pollution to the mirror. All possible fires in the protection area shall be kept in a straight line to avoid indirect incidence and reflection.
3. In order to avoid detection blind area, another flame detector is generally installed in the opposite corner, and standby can also be provided in case of failure of one of the flame detectors.
The above points should be paid attention to when installing the flame detector. Here is a friendly reminder. What needs special attention is to avoid possible false alarm sources within the conical detection range of the flame detector.

Advantages: high reliability and low cost
Disadvantages: slow reaction speed and poor environmental adaptability (indoor, wind, smoke, fog, heat source, etc.)
Application in civil, construction and Industry
Exploration, production, storage and unloading of oil and gas,
Offshore drilling - fixed platform, floating production, storage, loading and unloading,
Land drilling - refineries, gas reloading stations, pipelines,
Petrochemical products - production, storage and transportation facilities, oil depots, chemicals,
Flammable materials storehouse, car manufacture, paint spray room,
Aircraft - Industrial and military, explosives and munitions;
Automobile - spray booth
Medical and pharmaceutical industry
Production, storage and transportation of high-risk industrial dyes such as powder room.

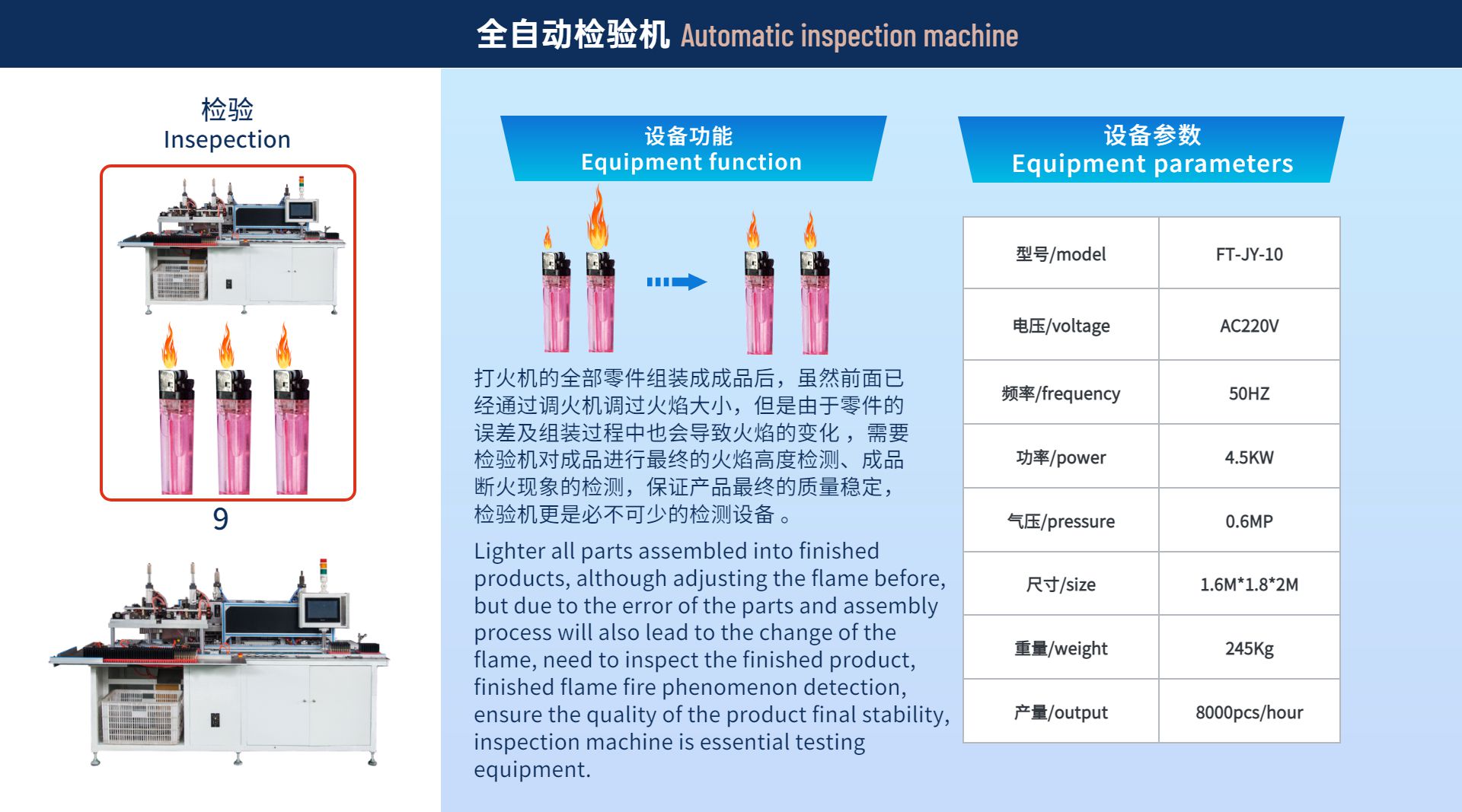

Fully automatic inspection machine for lighters-the equipment loading and unloading are all automatically loaded and unloaded by a manipulator. The intelligent system can automatically fine-tune the fire ring according to the process requirements to reach the required flame size, and automatically pick out the defective products to ensure that the inspection is good Qualified products will not have defective products, ensuring long-term quality assurance.

Material: stainless steel + aluminum
Product size: 2.35m*1.2m*1.55m
Voltage: AC220v
Air pressure: 0.6mp
Power: 2750w
Weight: 350kg
Device model: FT-JY-10
Output: 8000-10000
Operating staff: 1

Process Description
1. Match the fixture according to the model.
2. Debug the machine according to customer needs and quality requirements (flame height, ignition rate).
3. After 200 pieces of experimental equipment are produced, 100 pieces shall be self-inspected, and then 100 pieces shall be sent to quality inspection before mass production.

Precautions
1. Operate according to the order requirements in combination with the inspection methods provided by the quality department.
2. Pick up the integrated fire and check if it exists before firing.
     Less air, air leakage and no air and pick out defective products with defects in appearance.
3. Set the inspection machine to the standard flame height according to the order requirements.
     Operate in accordance with the normal requirements for three consecutive fires or three consecutive fires
     Two inferior (specifically based on customer needs).
