blind stitch for neoprene wetsuit

4 year ago

54 0 

DONGGUAN CHUANGHUI SEWING MACHINE CO.,LTD

8 year

Product details

Industrial Sewing machine blind stitch type application：

General use for stitching Wet-Suits, Dry-Suits, Diver-Suits, Surf-rider-Suits of Neoprene materials.

Speedy stitching works are available with cloth puller.

Various thickness (2-10mm) of Neoprene can be stitched.

Stitch type code:

103 stitch type, single needle single thread.

wetsuit 103 stitch blind sewing machine

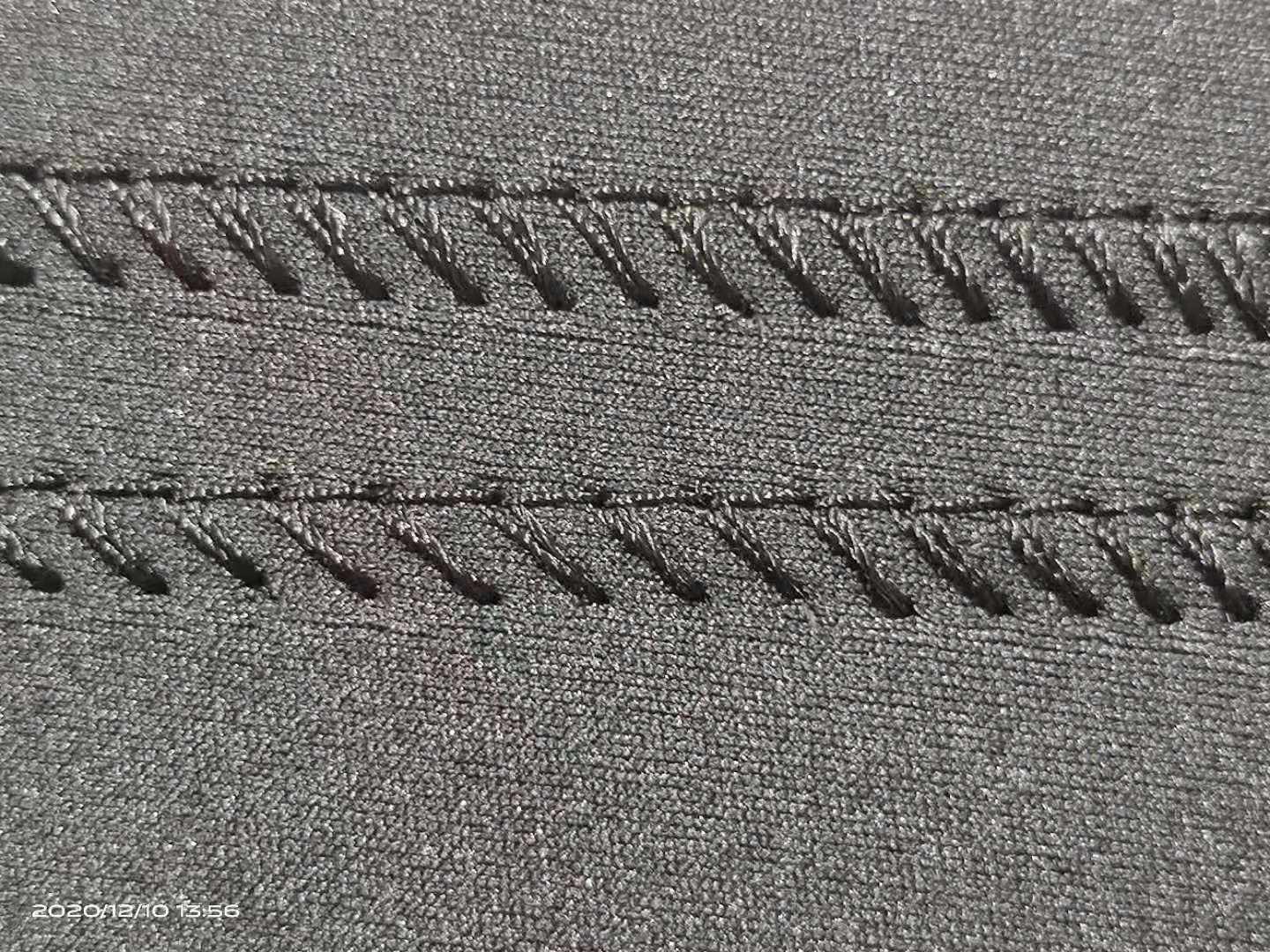

103 type stitch feature:

Single thread blind stitch, no stitch visible on the bottom or outside of sewn products.

Needle type: LWx6T#14

Material type:

elastic diving material (neoprene neoprene, thick material)

Material handling data:

Presser foot lifting height: 12mm

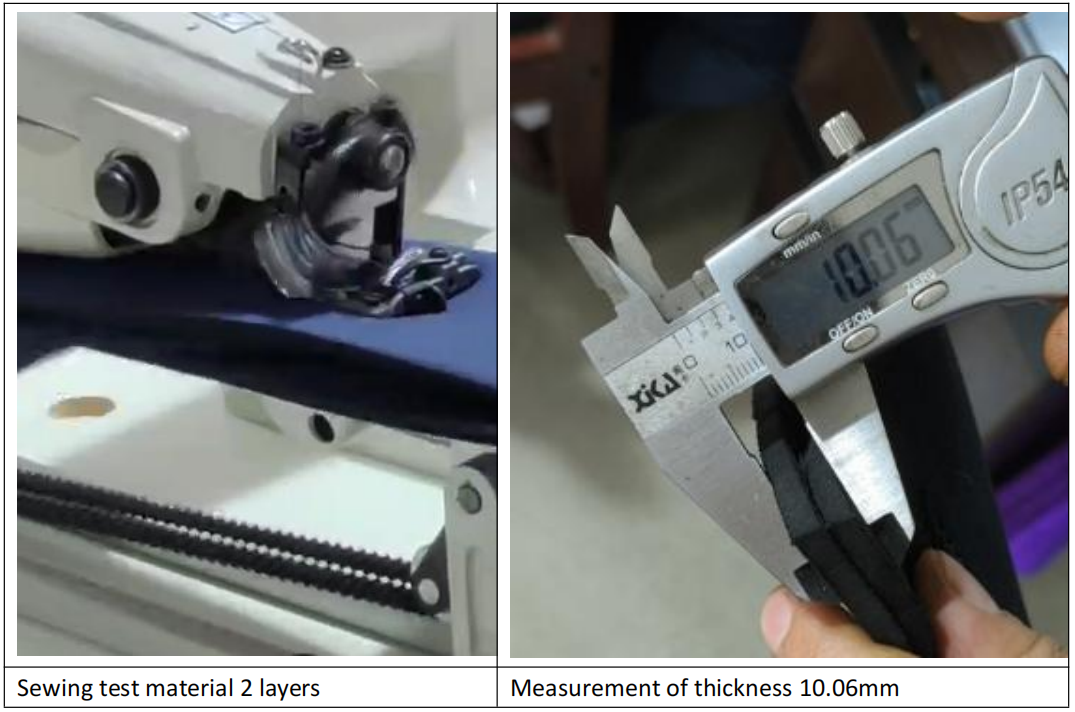

Sewing thickness range: 2~10mm

Sewing arm length: 180mm

blind stitch sewing machine wetsuit thickness

Sewing machine operation:

Maximum sewing speed: 2000rpm

Direct drive motor: 550W

Power supply: 220V 50 ~ 60Hz

Sewing machine parts accessories for cloth synchronous tug/puller:

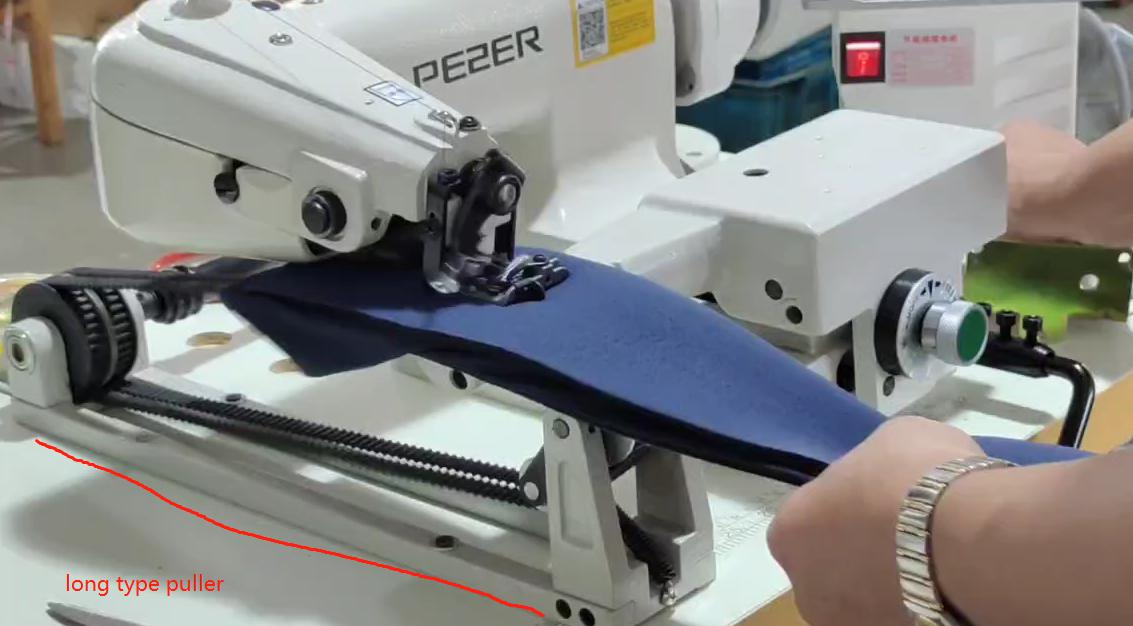

1. Long type: 410mm

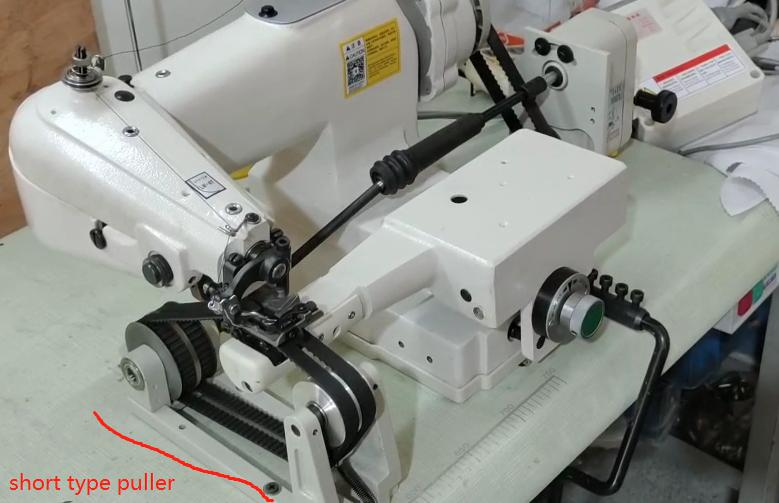

2. Short type : 200mm
blindstitch sewing machine with puller short type

How to choose blind stitch sewing machine spare parts:

For different material of products or operation habits you can consider how to choose these two

pullers:

* long puller is better for thicker material and bigger size to be sewn;

* short puller is preferred by complicated sewing like many small pieces or thin material,

operators need to adjust very often.

Packing and weight of heavy duty sewing machine:

1. Machine head:

packing size: 48 * 43 * 37.5cm, gross weight: 28kgs;

2. Table & stand packing:

Packing size: 125 * 58 * 11cm, gross weight: 23kgs;

3. Puller set packing:

Packing size: 49 * 32.5 * 23cm, gross weight: 5.8kg

Sewing Machine Full Set Packing

Manufacturer: Dongguan Chuanghui Sewing Machine Co., Ltd

Address: NO.28, Cunzheng South Road, Chuancha Village, Machong, Dongguan City, Guangdong

Province, China
