Ceramic Patch Wear-resistant Elbow Manufacturers

 Product Introduction

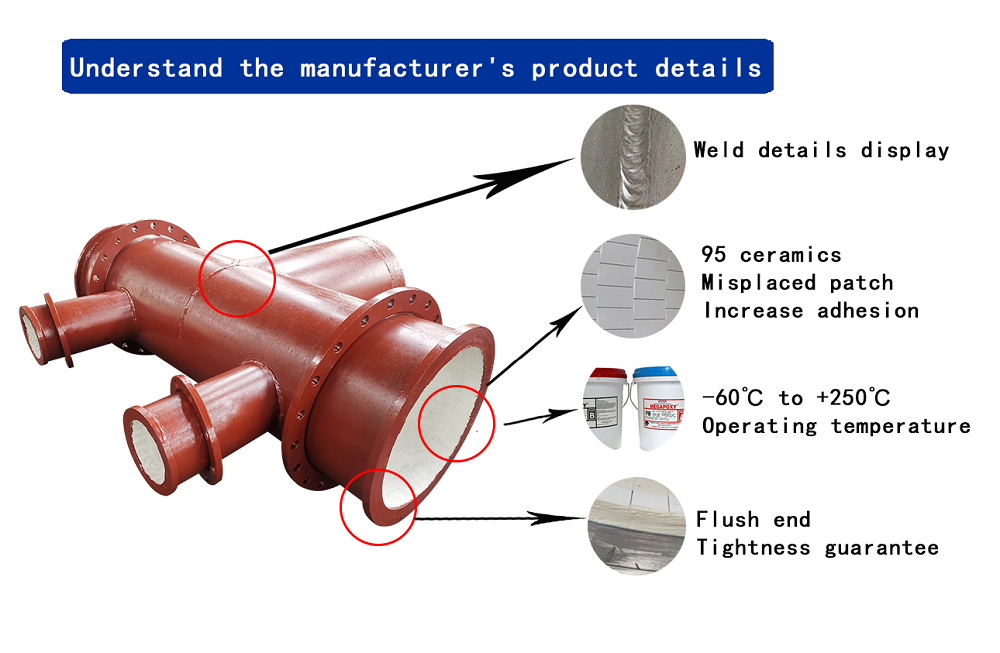

The inner Ceramic Lined Carbon Steel Pipe is composed of three layers: outer steel pipe layer, corundum layer, and ceramic glue layer. The inner ceramic layer is white from the surface. The ceramic is generally 95 ceramic, and the temperature is generally below 200°C.Ceramic Pipe Fittings

At present, the common ceramic sheets lined with ceramic composite pipes are: ceramic block, dovetail mutual pressure, welding type, mosaic, card slot and so on.Ceramic Lined Pipe has the characteristics of wear resistance and long service life

  Product performance

1. Large hardness

   Rockwell hardness HRV 80-90

2. High wear resistance

   Wear resistance is equivalent to 20-30 times of high manganese steel

3. Light weight

   Its density is 3.9g/cm³, which is only half that of steel, which can greatly reduce the equipment load

4. Imported glue

   Magbao imported glue, bonding strength: 10Mpa, working temperature: -60℃ to +250℃, welding type, wear resistance up to 800℃

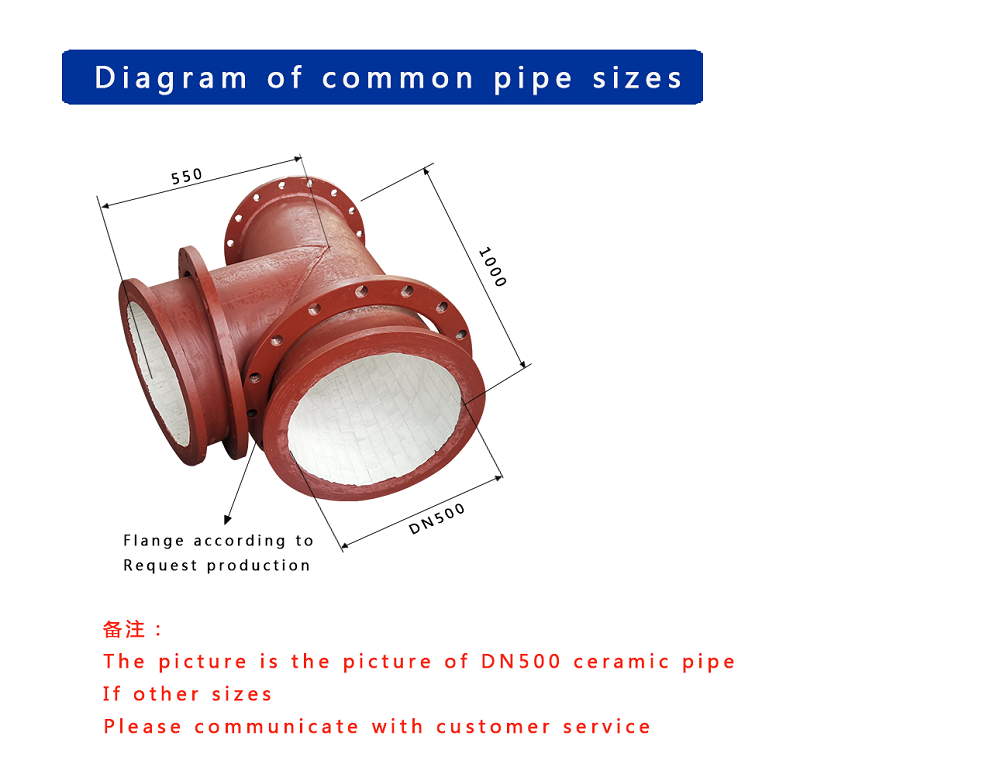

  Specifications

Technical parameters of wear-resistant ceramic pipes

Brand: Jianghe

Manufacturer: Jiangsu Jianghe Machinery Manufacturing Co., Ltd.

Pipe diameter: ≥DN100

Steel pipe thickness: ≥4mm

Steel pipe material: Q235 or stainless steel

Ceramic thickness: 4mm, 6mm, 8mm, 10mm, etc.

Connection method: flange, welding, casing, V-connector

Working pressure: ≤1.0MPa (other pressures need to be communicated with customer service)

  Ceramic sheet technical indicators

     Ceramic marking: 92-95

     Bulk density: 3.9g/cm³

    Tensile strength: 1030MPa

    Flexural strength: 212MPa

Hardness HRV: 80-90

  Manufacturer Service

1. Free technical answers

2. Free CAD or 3D drawing

3. Paid surveying and mapping services
