Auto splicer
9 month ago

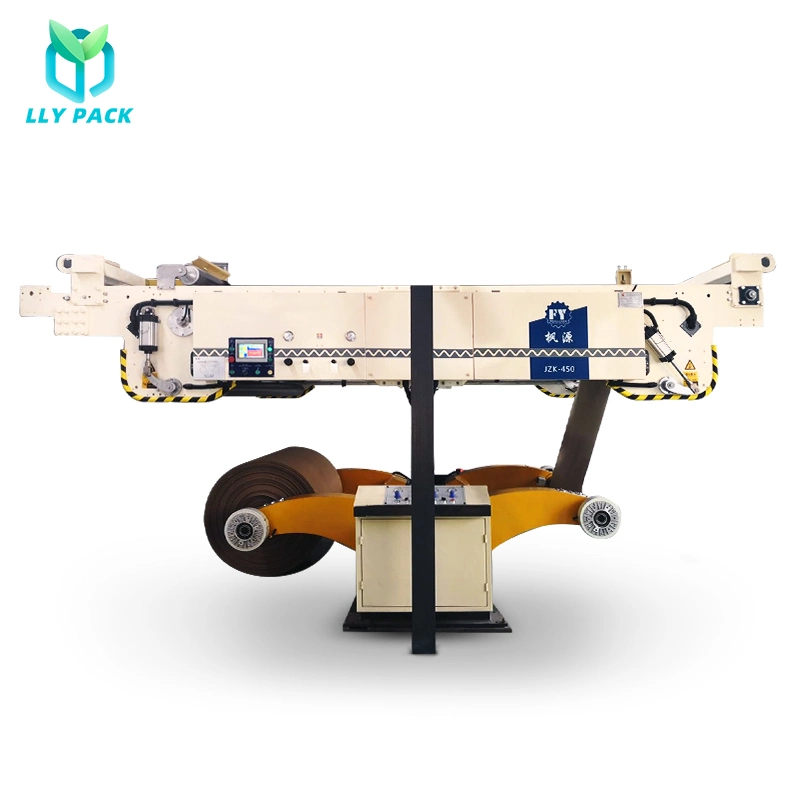

Corrugated Paper Roll Splicer
ROLL TO ROLL NON-STOP SPLICING Paper Product Making Machinery
ΦEASY TO MATCH THE PRESENT CORRUGATED LINE
ΦWITH TOUCH SCREEN TO MONITORING THE DATA .EASY AND CLEAR OPERATION
Φ1.5 SECOND TO CHANGE PAPER
ΦIMPORTED SPARE PARTS TO ENSURE THE LOW FAILURE RATE
Keyword： Paper Product Making Machinery、Paper Mill Auto Splicer
|
Design speed:
|
Model 300-280 m/min(Flute liner)250m/min(Top liner)
Model 400-380 m/min(Flute liner)250m/min(Top liner)
|
|
Paper Connection:
|
overlap connecting
|
|
Design width:
|
the maximum paper width can reach 2550mm
|
|
Weight of the original paper:
|
50g/m2~350g/m2
|
|
Paper reaction completion time:
|
about 1 second
|
|
Gas source:
|
a minimum of 0.6MPa dry clean air source
|
|
Power demand:
|
power supply:380V, 50Hz, 20A control power:12V,24V
|
|
Paper frame brake:
|
pneumatic brake/ magnetic powder brake
|
|
LINER GSM(G/m2)
|
FOR TOP LINER(M/MIN)
|
FOR FLUTING LINER(M/MIN)
|
|
70~90
|
120
|
100
|
|
90~110
|
150
|
130
|
|
110~130
|
200
|
160
|
|
>130
|
250
|
200
|
3. TO BE SYCHRONIZED WITH THE EXIS PRODUCTION LINE
4. TO BE INSTALLED IN BACK TO BACK POSITION, EASY TO OPERATE
Q1. Are you manufacturer?
A: Yes. We are manufacturing factory for auto splicer, with production capacity of 500+ set per year.
Q 2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q 3. Where is the nearest airport?
A:Guangzhou Baiyun International Airport
Q 4. Where is the nearest sea port?
A:Foshan / Nansha /Shenzhen
Q 5. What's the size and speed?
A:We produce auto splicer with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 450m/min (paper liner speed)
Q 6. Where is the machine applied?
A:The auto splicer is usually applied in the corrugated cardboard production line, as well as the high speed slitter/ sheeter for offset printing.
Q 7. Where is your auto splicer being exported before?
A:Vietnam, Thailand, Myanmar, Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia,
Lithuania, Mexico, Brazil, Argentina, Venezuela, Honduras, Korea and etc.
