threaded rod
8 month ago

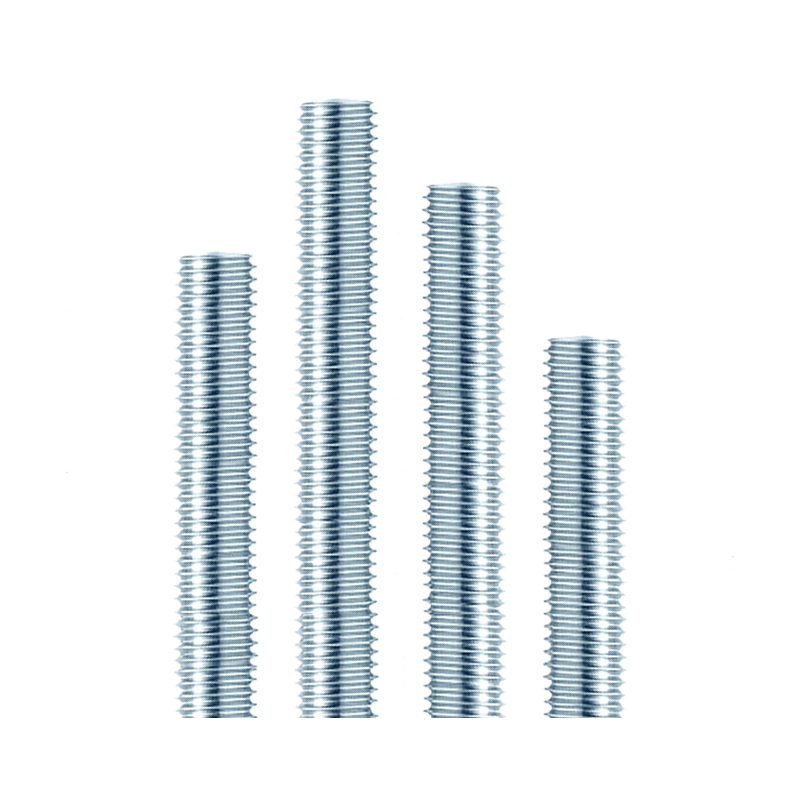

Threaded rod, as its name suggests, is a metal rod that is threaded throughout the entire length of the rod. It’s typically made from carbon, zinc coated or stainless steel. The threading allows for bolts and other types of fixings to be fastened onto the rod to suit many different construction applications.
Where to use the threaded rod? To sum up, the threaded has two main applications: fastening materials or supporting structures (stabilizing). To achieve these objectives, the threaded bar can be used with standard nuts and washers. There’s also a special type of nut called rod coupling nut, which is used to join two pieces of rod firmly together.
Metric threaded rods common sizes:
|
M12 |
1.75mm |
M36 |
4mm |
|
M14 |
2mm |
M39 |
4mm |
|
M16 |
2mm |
M42 |
4.5mm |
|
M18 |
2.5mm |
M45 |
4.5mm |
|
M20 |
2.5mm |
M48 |
5mm |
|
M22 |
2.5mm |
M52 |
5mm |
|
M24 |
3mm |
M56 |
5.5mm |
|
M27 |
3mm |
M60 |
5.5mm |
|
M30 |
3.5mm |
M64 |
6mm |
|
M33 |
3.5mm |
8UN |
|
Imperial threaded rods common sizes:
|
5/8" |
11UNC |
2 3/8" |
8UN |
|
3/4" |
10UNC |
2 1/2" |
8UN |
|
7/8" |
9UNC |
2 5/8" |
8UN |
|
1" |
8UN |
2 3/4" |
8NN |
|
1 1/8" |
8UN |
2 7/8" |
80N |
|
1 1/4 |
8UN |
3" |
8UN |
|
1 3/8" |
8UN |
3 1/8" |
8UN |
|
1 1/2" |
8UN |
3 1/4" |
8UN |
|
1 5/8" |
8UN |
3 1/8" |
8UN |
|
1 3/4" |
80N |
3 1/2" |
8UN |
|
17/8" |
8UN |
3 5/8" |
8UN |
|
2" |
8UN |
3 3/4" |
8UN |
|
2 1/8" |
8UN |
3 7/8" |
8NN |
|
2 1/4" |
8UN |
4" |
8UN |
Name: Threaded Rod-SS-DIN975
Material: Carbon steel, Stainless steel, Alloy steel, Aluminum, Brass
Finished: PL, Zinc plated, HDG, Dacromet zinc, Black oxide, Nickel plated, Chrome plated, Cr+3, Brass plated
Grade: 4.8-8.8
Standard: DIN, ANSI/ASME, BS, GB, JIS, Non-standard
Diameter: M3—M42
Length: 30MM—3000MM
Packing: Standard export packing or according to customers' demand
Productivity: 1000 tons per month
Payment: T/T or L/C at sight
Delivery lead time: 30 days after order is confirmed.
According to customers' Drawings or samples or designed by ourself.
