PP honeycomb panel
4 year ago

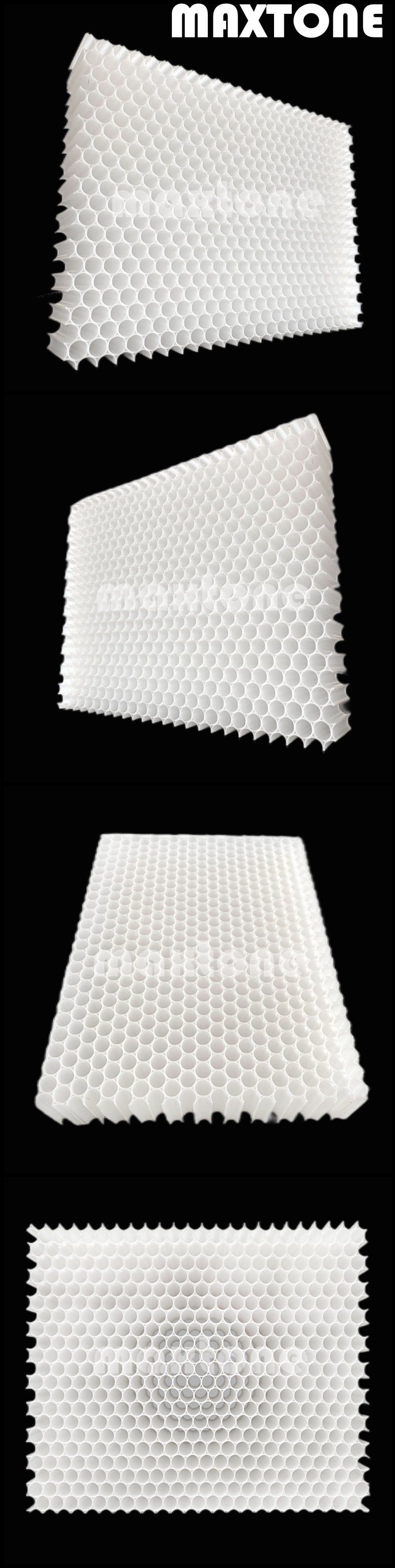

PLASTIC HONEYCOMB CORE SHEET
PARAMETERS
|
ITEM |
TYPE A |
TYPE B |
TYPE C |
| Color | White | White | White |
| Cell core diameter (mm) | 8 | 10 | 12 |
| Density (kg/m³) | 80 | 75 | 70 |
| Compressive strength (Mpa) | 1.66 | 1.58 | 1.47 |
| Modulus of compression (Mpa) | 45.7 | 41.2 | 38.9 |
| Shear strength (Mpa) | 0.5 | 0.45 | 0.4 |
|
Effective temperature (℃) |
-40 — +80 |
-40 — +80 |
-40 — +80 |
| Thermal insulation U-value (W/m²k) | 2.2 | 2.2 | 2.3 |
REMARK: ALL DATA ARE BASED ON 30MM THICKNESS HONEYCOMB PANEL.

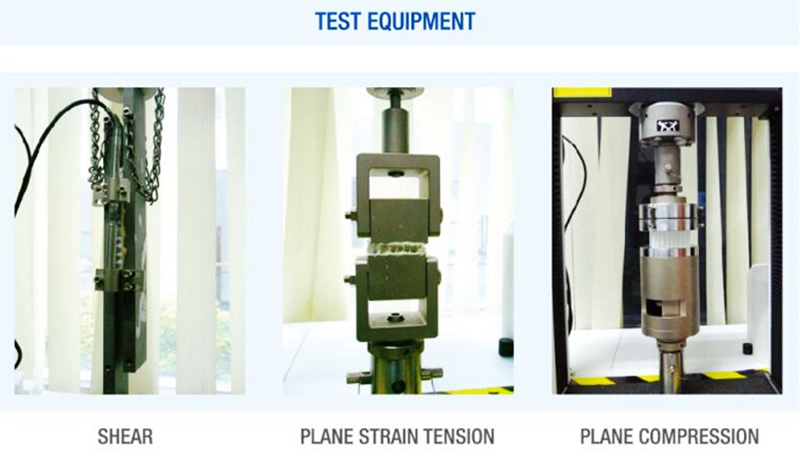

| TEST EQUIPMENT |
| QUALITY STANDARD |
|
ITEM |
STANDARD | TOLERANCE |
| Thickness (mm) | 5-100 | ±0.3 |
| Length (mm) | 2440 |
±1.0 |
| Width (mm) | 1220 | ±1.0 |
| FEATURES |
- LIGHT AND STRONG
- GREEN AND ENVIRONMENTALLY FRIENDLY
- WATERPROOF AND MOISTURE-PROOF
- CORROSION RESISTANT
- SOUND ISOLATION
- ENERGY ABSORPTION
| APPLICATION |

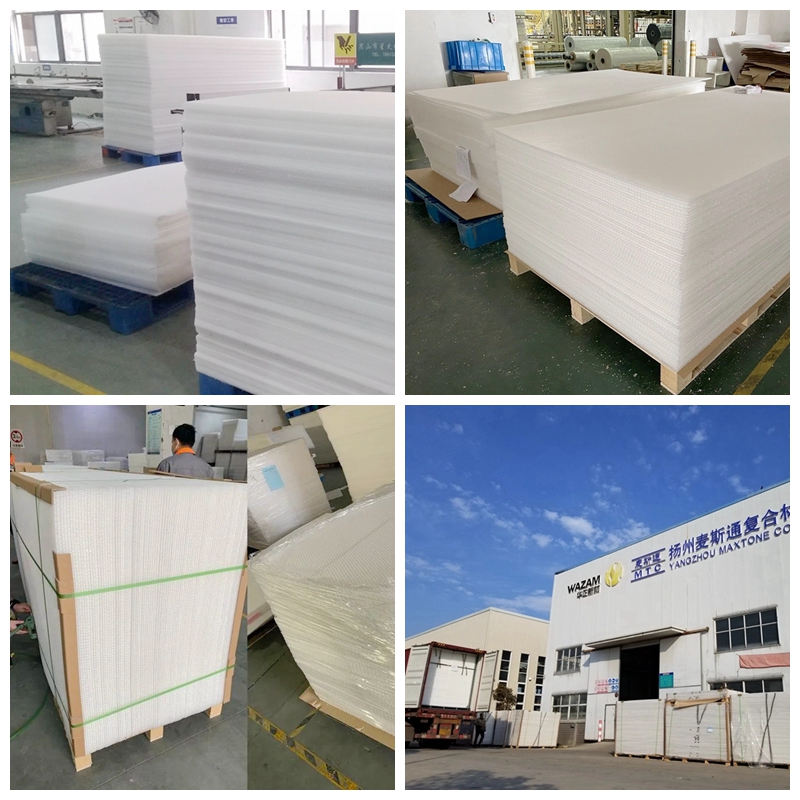

| PACKAGING & SHIPPING |
| CERTIFICATION |
| FAQ |
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in Yangzhou, Jiangsu Province, China.
Q: Do you have quality control?
A: Yes, we have gained ISO:9001:2008 authentication and we have our own lab .
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q:How about the delivery time?
A: Generally it is 7-14 days.
