pouch cell
4 year ago

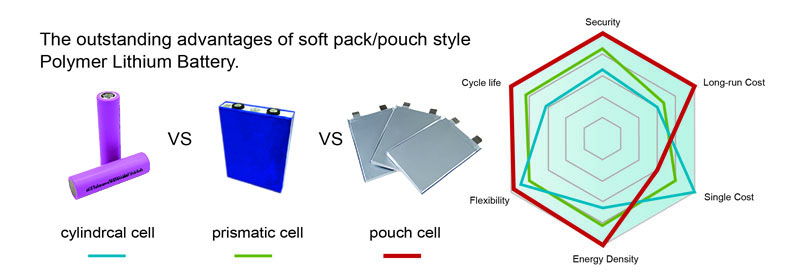

The Pouch Cell is a kind of polymer battery that has a layer of aluminum plastic film on the outer bread of liquid or semi-solid lithium-ion, it is not a metal hard case. So, compared with ordinary square batteries, the weight can be lighter, and it can be easily made into different sizes and shapes.
The advantages of pouch cell batteries are higher energy density with the same weight, higher discharge rate, more safety performance, and lower internal resistance. However, its more difficult to produce, and the technical requirements for the factory will be higher.
The pouch cell lithium battery often used in racing motorcycles, drones, RC racing cars, jump starters, and any applications that require magnification, explosive power, and instant powerful output.
ZTTEK 3.7V 10Ah 15Ah 20Ah 24Ah 26Ah 28Ah LMO/NCM/NCA/LFP Pouch Lithium ion Polymer Solar
Open Battery Cell.
Items:
|
Specifications:
|
Items:
|
Specifications:
|
Material system
|
LMO/NCM/NCA/LFP
|
Standard discharging method
|
0.5C (constant current discharge to 2.75V )
|
Charge cut-off voltage
|
4.20V
|
Max Continuous Charge Current
|
0.5C (charging temperature 0℃~45℃)
|
Nominal cut-off voltage
|
3.7V
|
Max Continuous Discharge Current
|
1.0C(continuous current , working temperature -20-55℃)
|
Discharge cut-off voltage
|
2.75V
|
Operating temperature
|
Charging : 0℃~45℃
Discharging : -20℃~55℃
|
Delivery voltage
|
3.80-3.90V
|
Cell Weight
|
Approx :425.0±15.0g
|
Rated Capacity
|
20.0Ah @ 0.5C Discharge
|
Cell Internal Impedance
|
≤ 3.0mΩ
Internal resistance measured at AC 1KHZ after 40% charge
|
Standard voltage decline
|
≤0.05mV/h (after 6 days aging at natural temperature)
|
Item:
|
Code:
|
Specification(mm):
|
Remark:
|
Thickness
|
T
|
10.2±0.2
|
|
Width
|
W
|
115.5+0.5
-1.0 |
|
Height
|
H
|
164.5+0.5
-2.0 |
Without Tab-Lead
|
Tab-Lead Length
|
L
|
20±1
|
With Tab-Lead
|
Tab-Lead Width
|
W1
|
20±0.1
|
|
Tab-Lead Distance
|
D
|
58±1.5
|
|
Top Seal Width
|
W2
|
12±0.5
|
Reference
|
FAQ:
Q1:What kind of certificates did the products have obtained?
A:Most of our products certified with UL, CB, CE,UN38.3,MSDS,REACH,BIS,ISO9001,FCC,ROSH,BSMI ,ETC.which can cover the import requirements of most countries
Q2: Can you accept OEM and ODM service?
A: Yes, we supply OEM&ODM$OBB Service as client's requirement.
Q3: Can you produce a lithium battery pack according to the samples?
A: Yes, we can produce by your samples or technical drawing.We can build the molds and fixtures.
Q4:How to control the quality of your products?
A:Our company has got the ISO9001 approval. Except the chips and packaging box outsourced, The other parts are researched andproduced by ourselves. Product Quality is fully controlled by ourselves from beginning to end. 100% QC to make sure product in high-quality and low-defect before shipping.
Q5: What is your terms of packing?
A: Generally, we pack our lithium battery in neutral white boxes and brown cartons. If you have legally registered patent, we can
pack the goods in your branded boxes after getting your authorization letters.
Q6: What is yourtrade terms?
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q7: How long will it take for my battery to arrive?
A: Delivery will be made by courier, usually within 10-13 business days to US and EU countries. Some remote areas may take longer. Delivery time may vary for different countries and can take up to 3 weeks.
Sea shipping is available.
Q8: What should you pay attention to when using lithium batteries?
A: Do not knock, puncture, modify the lithium battery, do not place it directly under sun or rain for long time, do not over-charge and over-discharge the battery pack, charge the lithium battery with a good quality, matching lithium battery charger.
Q2: Can you accept OEM and ODM service?
A: Yes, we supply OEM&ODM$OBB Service as client's requirement.
Q3: Can you produce a lithium battery pack according to the samples?
A: Yes, we can produce by your samples or technical drawing.We can build the molds and fixtures.
Q4:How to control the quality of your products?
A:Our company has got the ISO9001 approval. Except the chips and packaging box outsourced, The other parts are researched andproduced by ourselves. Product Quality is fully controlled by ourselves from beginning to end. 100% QC to make sure product in high-quality and low-defect before shipping.
Q5: What is your terms of packing?
A: Generally, we pack our lithium battery in neutral white boxes and brown cartons. If you have legally registered patent, we can
pack the goods in your branded boxes after getting your authorization letters.
Q6: What is yourtrade terms?
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q7: How long will it take for my battery to arrive?
A: Delivery will be made by courier, usually within 10-13 business days to US and EU countries. Some remote areas may take longer. Delivery time may vary for different countries and can take up to 3 weeks.
Sea shipping is available.
Q8: What should you pay attention to when using lithium batteries?
A: Do not knock, puncture, modify the lithium battery, do not place it directly under sun or rain for long time, do not over-charge and over-discharge the battery pack, charge the lithium battery with a good quality, matching lithium battery charger.
