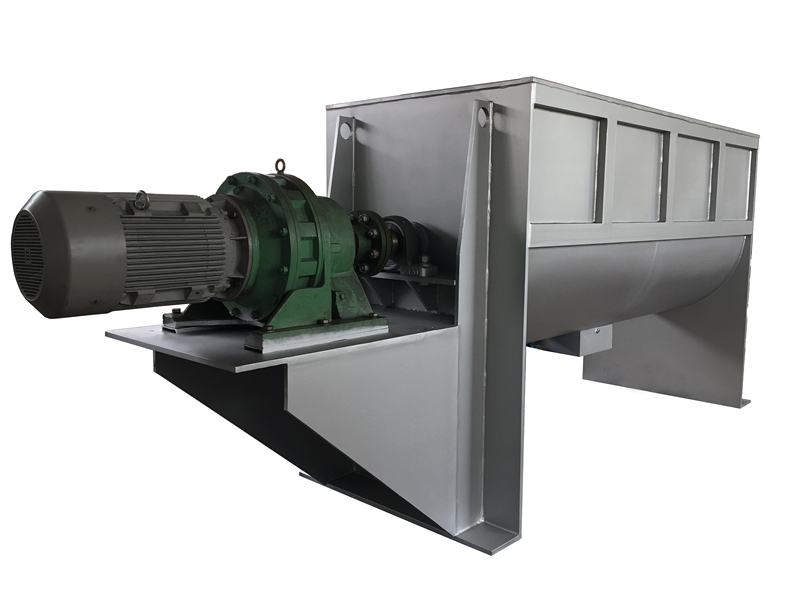

SPICES POWDER WLDH200 RIBBON BLENDER MIXER MACHINE
1.WORKING PRINCIPLE
Powder material are made by pneumatic big open the door structure form,has unloaded fast,no residual advantages;high fineness materials or semiliquids materials are made by using manual butterfly valve or pneumatic butterfly valve.can be equipped with heating or cooling clip sets.heating mode has electric heating and heat conduction oil heating in two ways.cooling technology can directly to the clip set inside infuse cooling water,clip TaoHuan hot the area is large,the cooling speed.small type mixing machine adopts reducer straight united way,simple structure,reliable operation degree is high,easy maintenance ,large number mixer driven by pulley shaft speed reducer drive,conveyor belt transmission connected with elastic on overload protection when the advantage of driving part.
2.MAIN FEATURES
Material standard:Carbon steel material,and the material contact for 304 stainless steel,all cylinder for 304 stainless steel material and contact for 316 L stainless steel,all cylinder for 316 L stainless steel ,other special material production,anticorrosion material lining,wear resistance material coating
Functional configuration:Heating/cooling function clip set with liquid/spray,function device,fly crushing function device,and dust removal purification function device,online sampling function device.
Material control:Manual since the lock,pneumatic drive
3.TECHNICAL PARAMETER
Model
WLDH200
WLDH500
WLDH1000
WLDH1500
WLDH2000
WLDH3000
WLDH4000
WLDH6000
WLDH8000
WLDH10000
Capacity(kg/batch)
80-100
200-250
400-500
600-700
800-1000
1200-1500
1600-2000
2400-3000
3200-4000
4000-5000
Power(kw)
3
5.5
7.5
11
15
18.5
22
37
45
55
Spindle speed(rpm)
42
42
42
32
32
32
30
28
28
22
Size(mm)
1800x700x1100
2300x750x1100
2800x920x1300
3200x1000x1500
3500x1100x1600
3800x1300x1800
4000x1500x2000
4400x1600x2200
5000x2200x2500
5500x2700x2700
Weight(kg)
450
800
1200
1500
1800
2000
2500
3000
4000
5000
Remarks:
1.delivery:20 working days in factory
2.Payment:30% advance,70% before shipping by TT
3.We are manufacturing company with the factory price and high quality
4.We can provide offer with FOB,CIF,CFR as consumer requirmenrts
5.If u feel interested in this machine or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or capsule polishing machine or capsule counting machine etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
