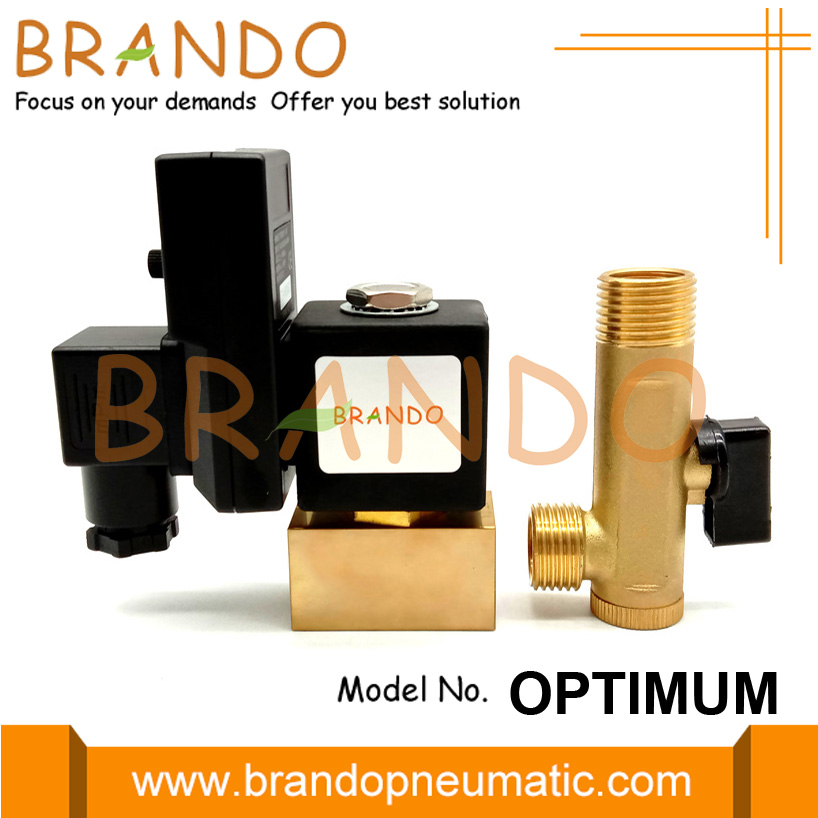

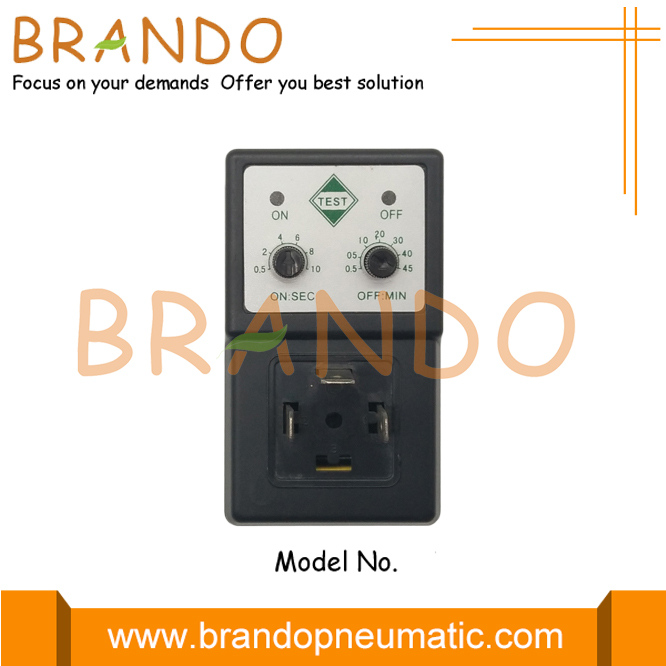

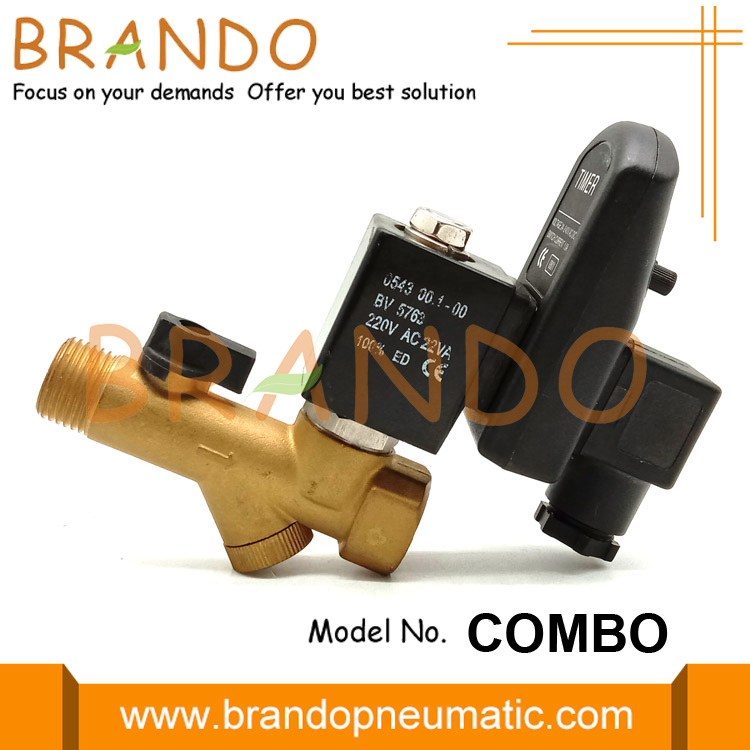

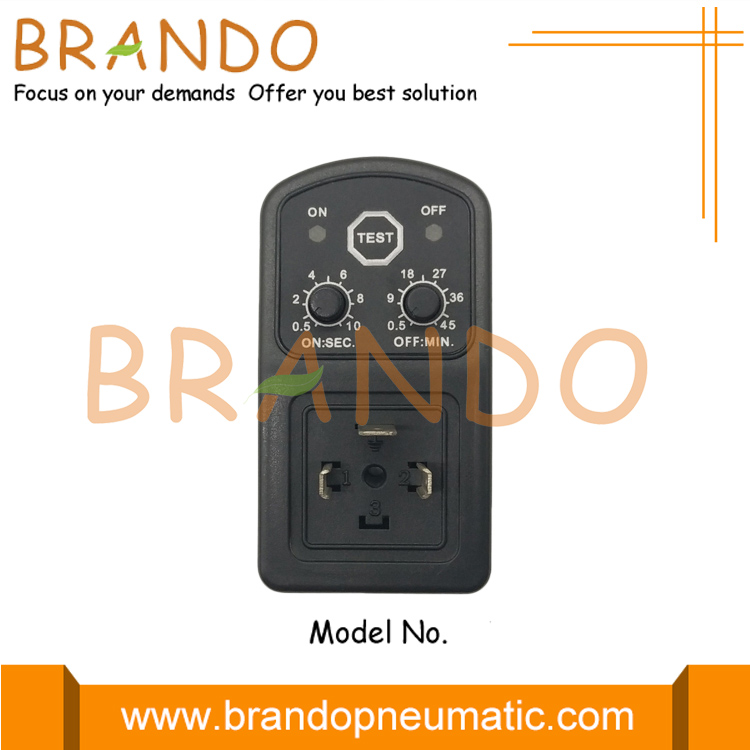

IP65 Digital Solenoid Timer Switch For Solenoid Valve

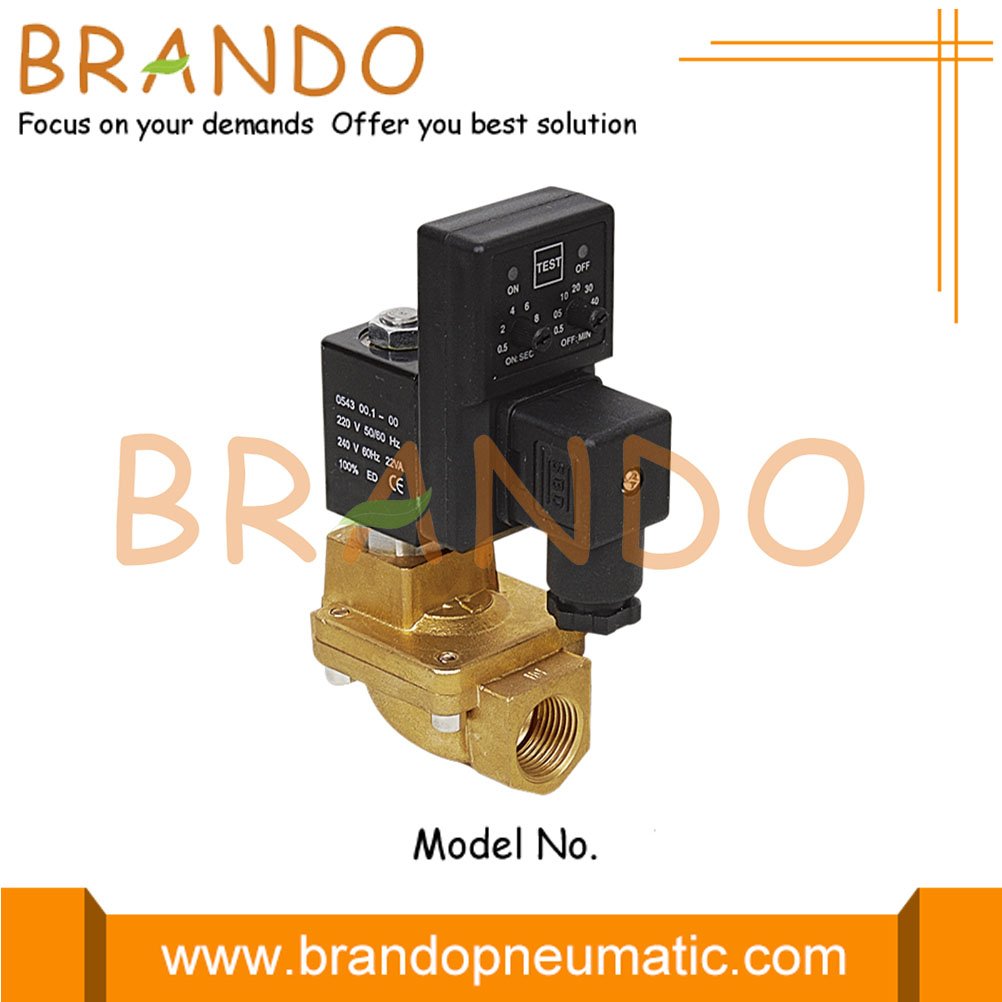

Solenoid valve timer can be used to control your solenoid valves according to a desired schedule. Most timers can be directly mounted on the solenoid valve coils via a DIN-A connector. They can be used for example for air dryers, shower timers, condensate drains, lubrication systems etc. We offer analog and digital timers, both suitable for AC and DC.

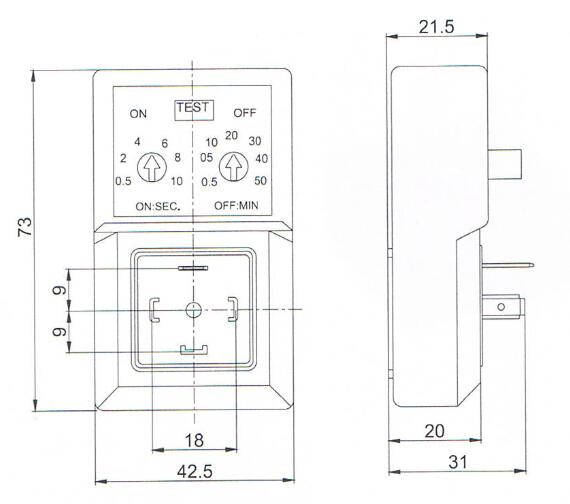

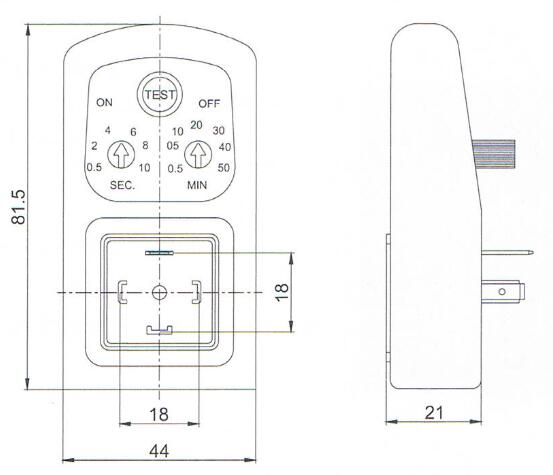

Main Dimension of Solenoid Valve Timer:
Technical Data of Solenoid Valve Timer:
|
Supply voltage
|
24..240V AC/DC-50Hz/60Hz for "CE" marked Timer
|
|
Absorption current
|
4mA Max
|
|
Operating temperature
|
-10℃ to +50℃
|
|
Class protection
|
IP65-EN 60529
|
|
Switch holding voltage
|
400V Max
|
|
Switch capacity
|
1A
|
|
Inrush current
|
10A for 10ms
|
|
Duty cycle
|
100%ED
|
|
Switch life
|
3x10^8
|
|
Time ON
|
from 0.5 to 10s
|
|
Time OFF
|
from 0.5 to 45min
|
|
Indicators
|
Yellow LED
|
|
Manual override
|
Test
|
|
Termination
|
DIN43650A
|
|
Customized Service
|
Provided, welcome show us sample or drawing
|
Brando Solenoid Valve Production Video:
More Solenoid Valve for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
