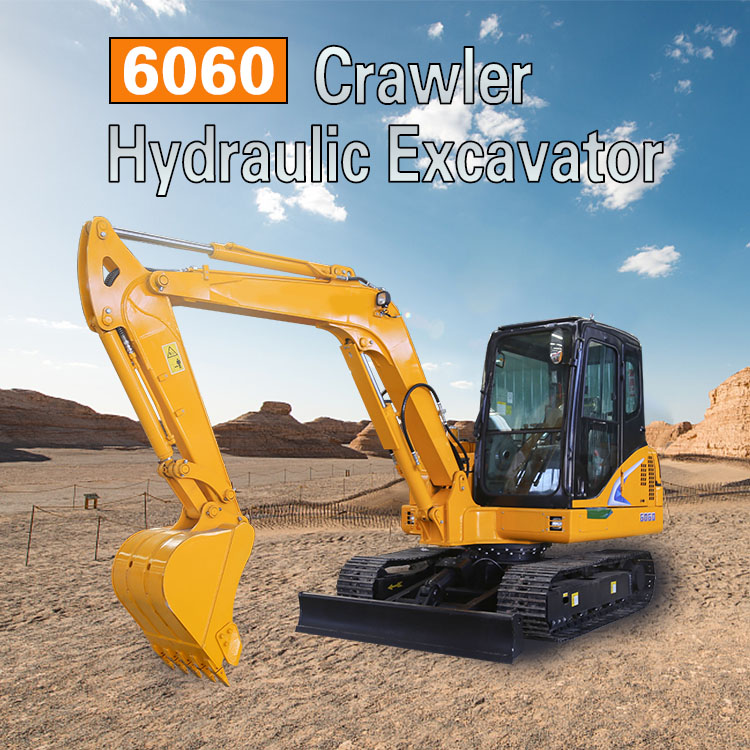

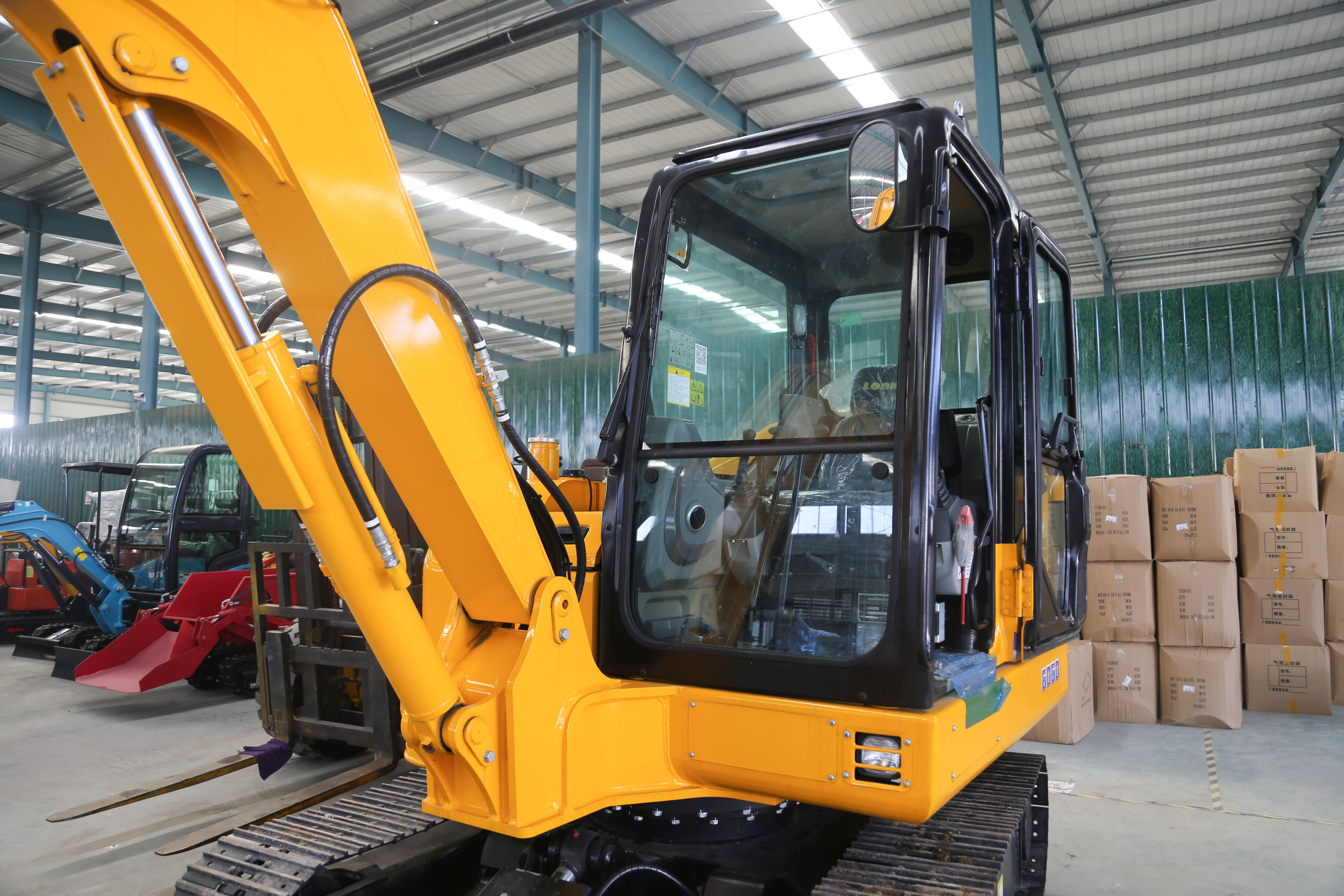

6 ton crawler hydraulic excavator
4 year ago
1. Who Are We?
Shandong Norman engineering machinery manufacturing co., LTD. Is located in the 7th industrial park of jining city, shandong province.
It is a modern enterprise which integrates scientific research, walking type single roller, walking type tandem roller, drive roller,development,
production and sales. Main production and sales of high quality high quality small roller, frame type leveling machine, road cutting machine,
milling planer, small engineering lighting vehicle, hair dryer, riding finishing machine and other pavement compaction maintenance equipment.
Welcome to visit the factory at any time!
2.What Are The Advantages Of Our Mini Excavator?

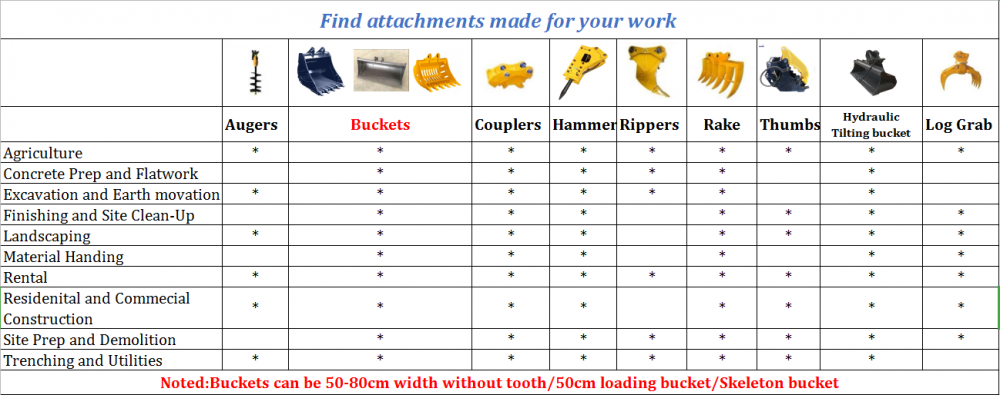

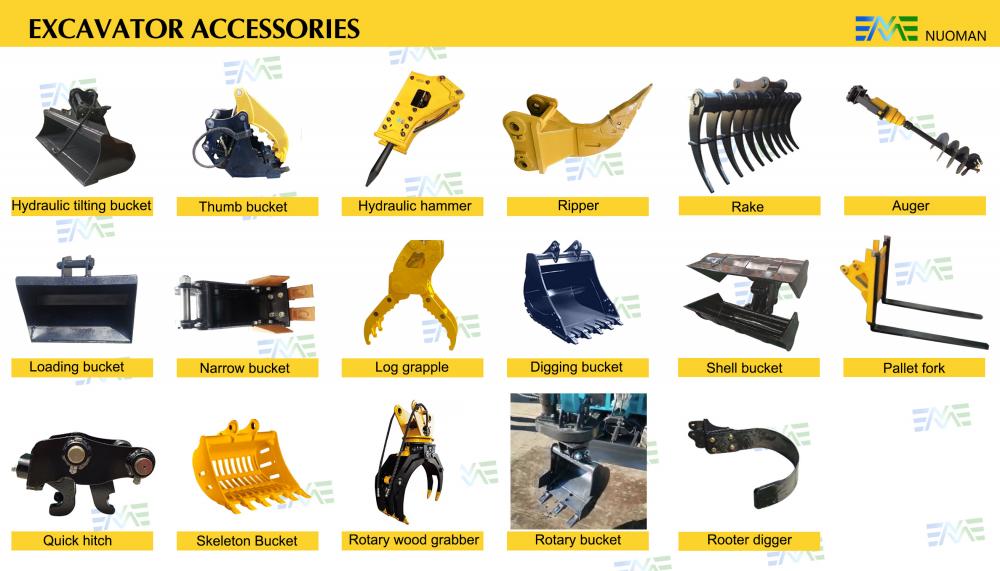

Advantages Of Mini Excavator: Support Multi-Function Operation, Fast Attachment Of Accessories, Excavation, Crushing, Trench Cleaning,
Drilling And Bulldozing.
Provide Customized Services, Your Exclusive Shopping Agent, Personalized Purchase。

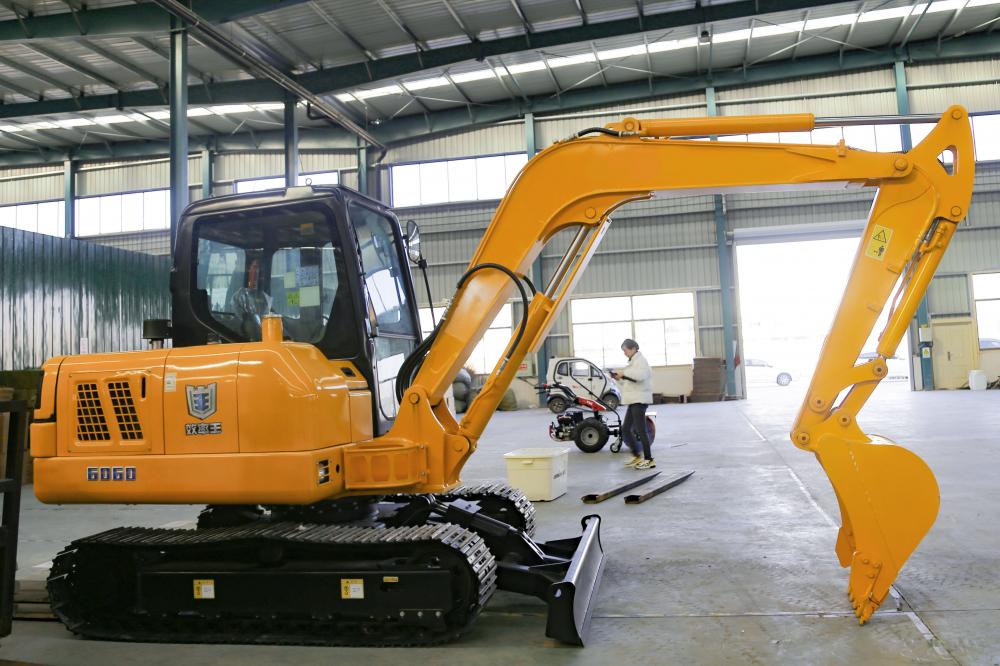

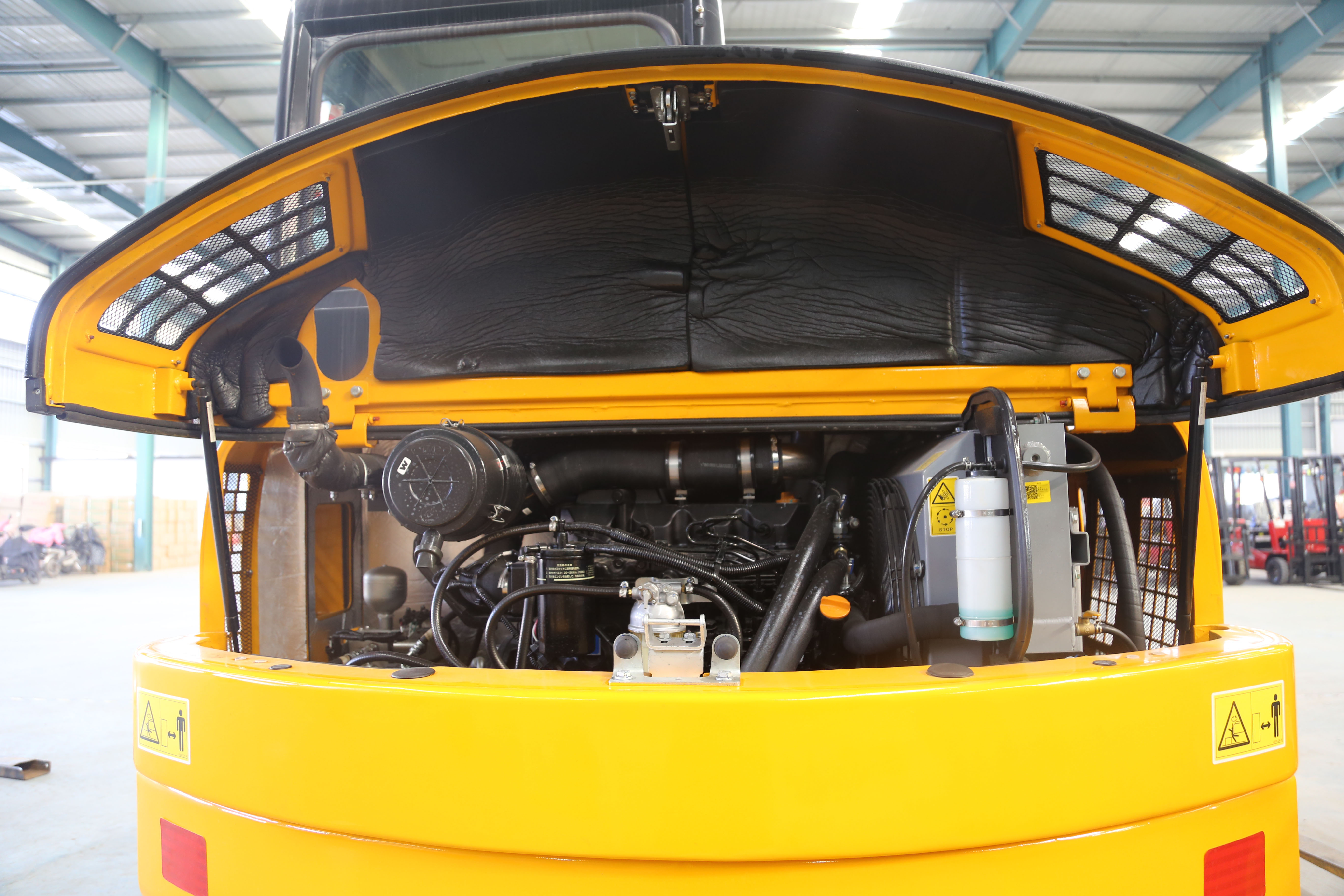

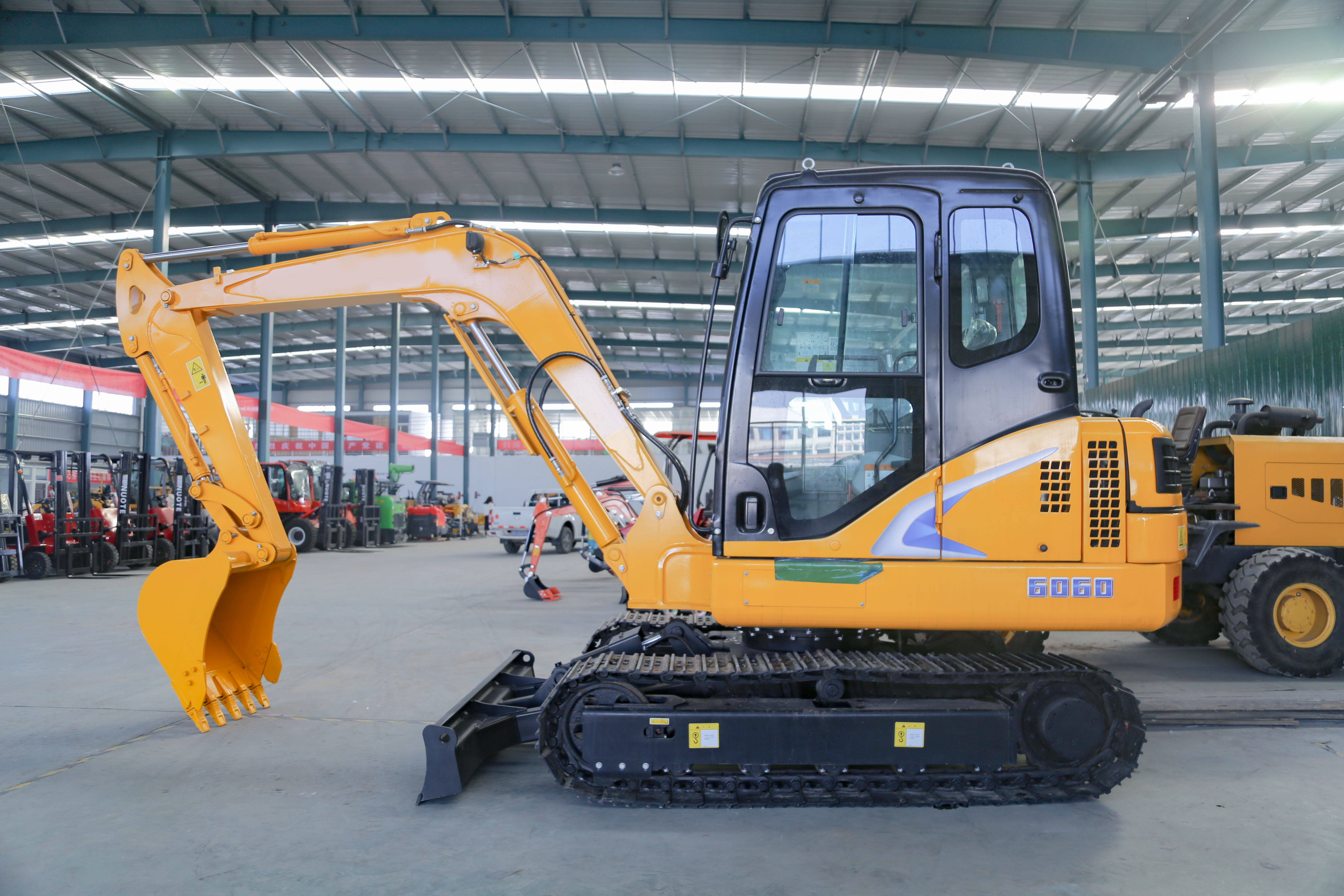

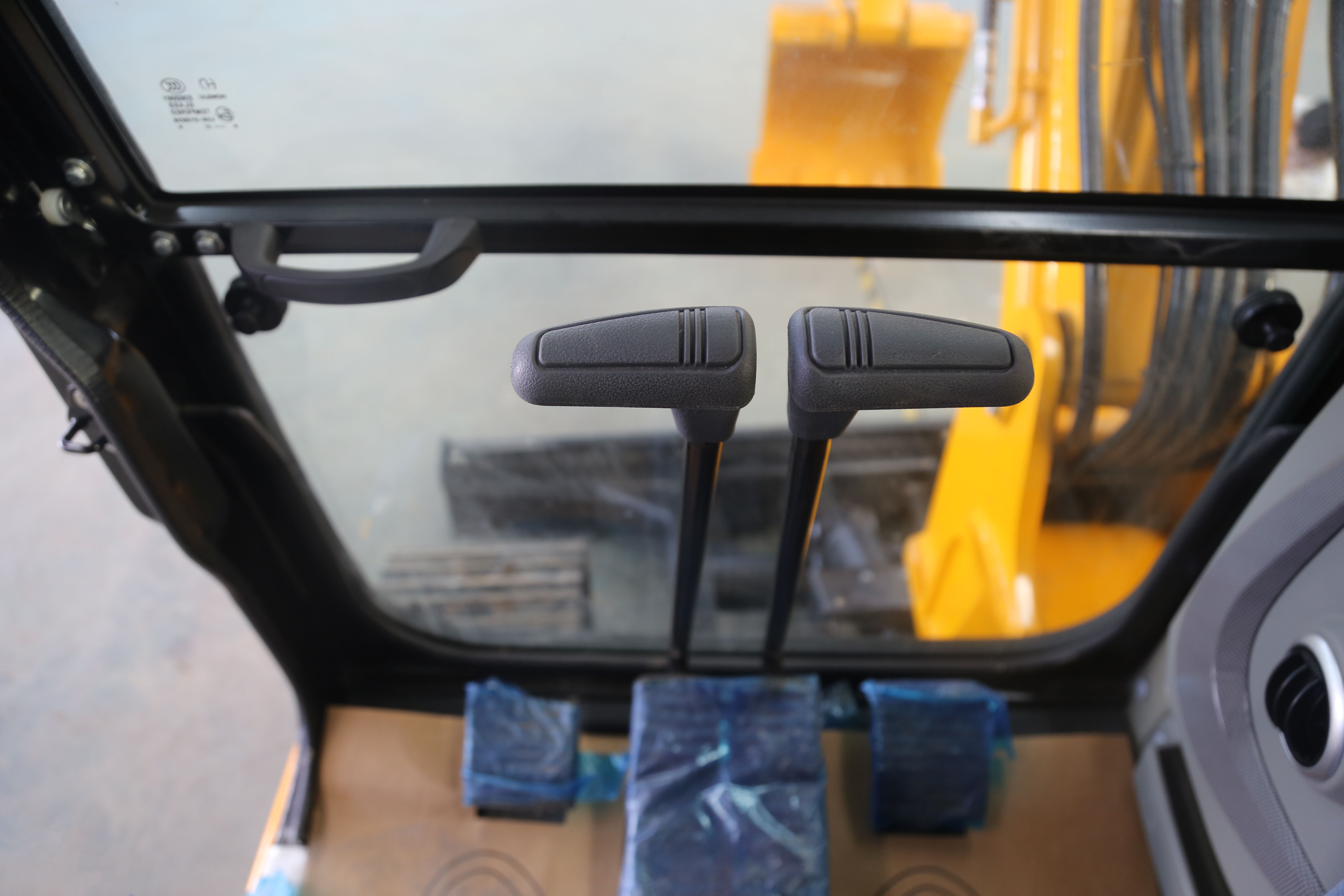

The main features of 6060:1. It is equipped with Yanmar 4TNV94 engine as standard, which meets the national three emission standards, with lower fuel consumption and lower noise2. The hydraulic main valve, main pump, swing motor, walking motor and other key components are further optimized, the product is more reliable, and the action coordination and controllability are better. 3. Enlarge the optimized radiator, the heat dissipation efficiency is higher, and the effect is better 4. The platform and cover are lengthened to improve the internal space, improve the ventilation efficiency of the air duct, and increase the stability of the whole machine 5. Using a new type of cab, optimizing the structure and strength of the pilot control system through ergonomics, greatly reducing operator fatigue |
PERFORMANCE PARAMETERS | ||
Overall quality | kg | 6050 |

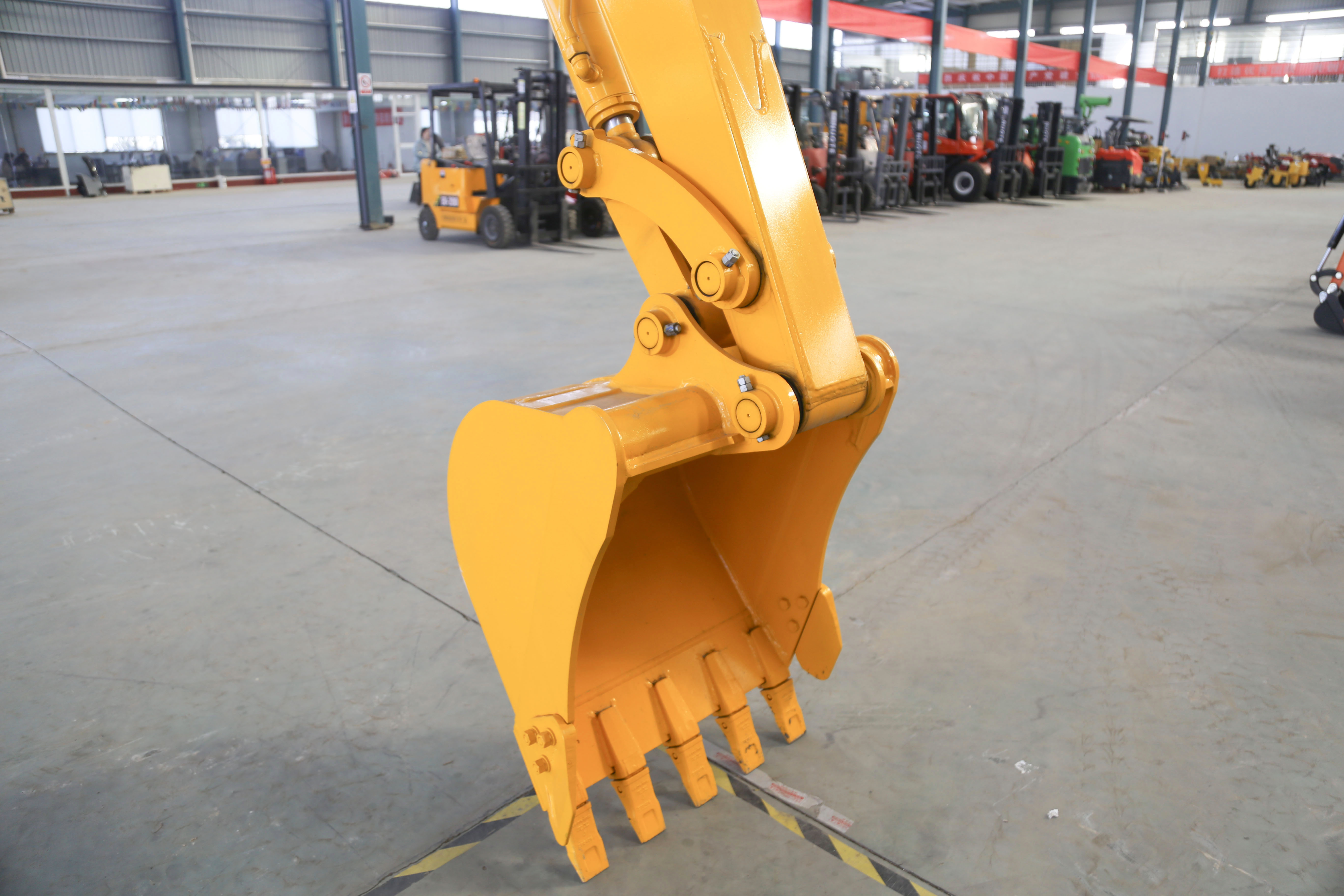

Bucket capacity | m3 | 0.25 |
Engine model | Model | Yanmar 4TNV94L-BVLKC |
Engine power | kw/rpm | 36.2/2100 |
Fuel tank capacity | L | 95 |
Maximum flow of main pump | L/min | 146 |
Work pressure | Mpa | 24.5 |
Hydraulic oil tank capacity | L | 115 |
Maximum digging radius | mm | 6090 |
Maximum digging height | mm | 5965 |
Maximum digging depth | mm | 3762 |
Maximum unloading height | mm | Up to 4135 |
Walking speed (high/low) | km/h | 5.0/2.0 |
Swing speed | n/min | 11 |
Radius of tail gyration | mm | R1705 |
Track wheelbase | mm | 1900 |
Gauge | mm | 1600 |
Maximum digging force of bucket | KN (ISO/SAE) | 40 |
Maximum digging force of stick | KN (ISO/SAE) | 28 |

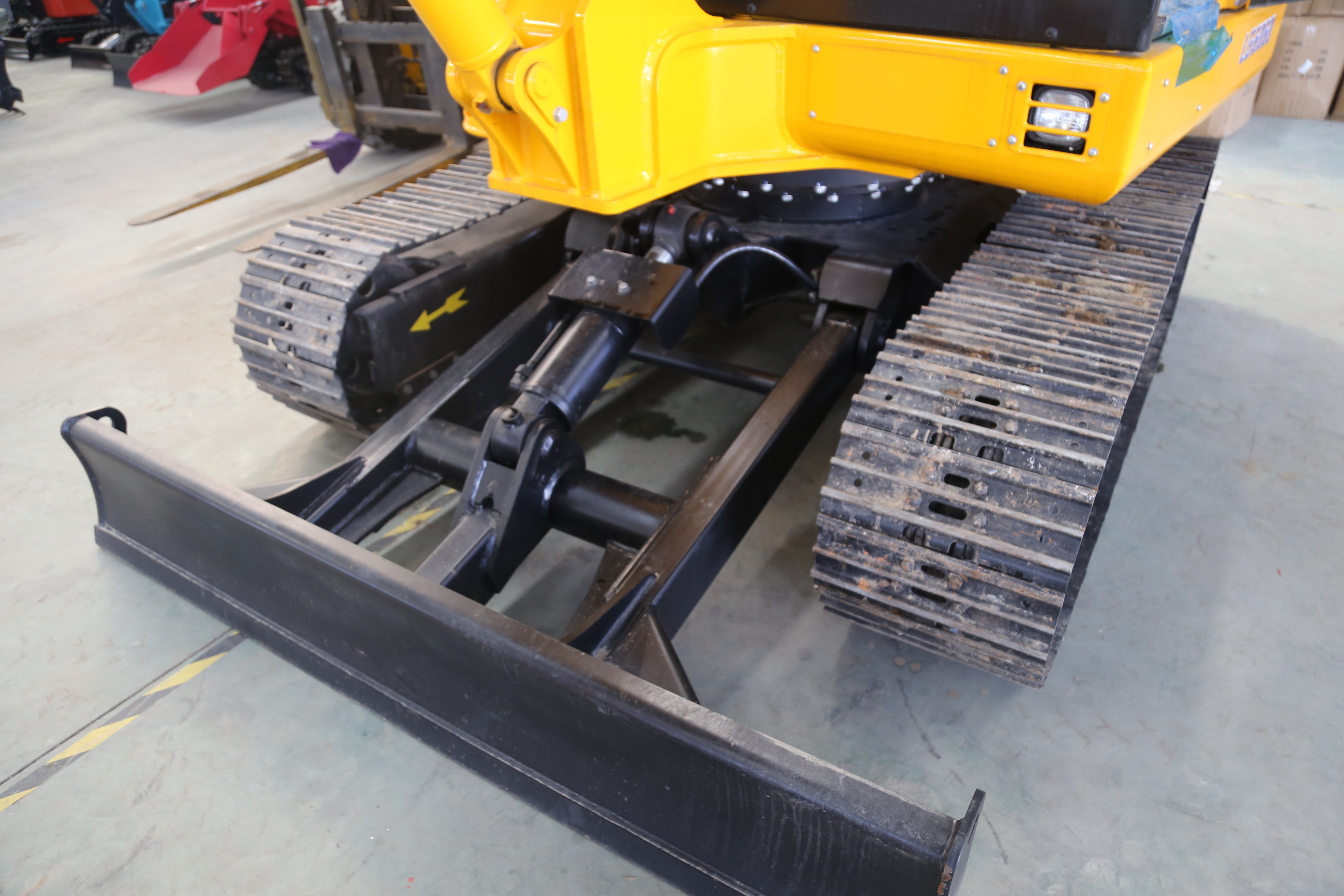

Bulldozing board size (width, height) | mm | 2000/306 |
Working height of bulldozing board (above and underground) | mm | 366/386 |
Transport size lengthxwidthxheight | mm | 5850x2000x2618 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
