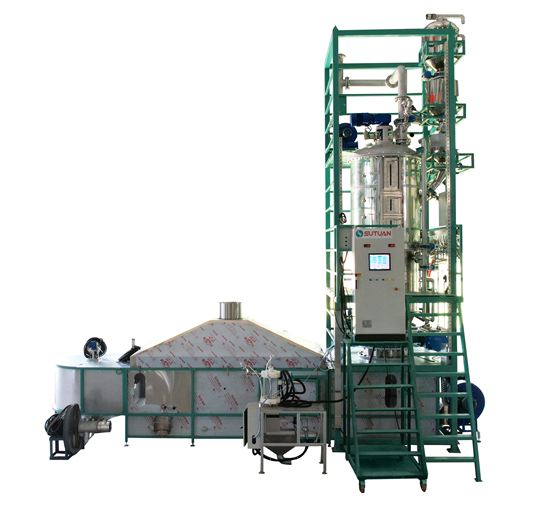

High-end EPS vacuum Pre-expander

A high-end EPS vacuum pre-expander is a machine used in the production of expanded polystyrene (EPS) foam products. This pre-expander uses vacuum technology to expand the polystyrene beads before they are molded into the desired shape. The high-end features of this machine may include precise temperature and pressure control, automatic feeding systems, and advanced insulation to ensure consistent and high-quality foam products. This type of pre-expander is ideal for manufacturers who require precision and efficiency in their EPS foam production process.

Hangzhou Sutuan Machinery longtime working people focus on EPS Machines and others including designing,producing,installing,and service etc . High efficient and Energy-Saving Environmental.The main products include Pre Expander, Forming Machine, Block Machine, Cutting Machine.

Machine Type		High-end EPS vacuum Pre-expander
Model			EPS-1200ST
Parameter		unit	EPS-1200ST
Feed barrel Body	Barrel body diameter	mm	Φ1200
	Height of barrel	mm	1594
	Volume of barrel	m³	2.4
	Effective volvme	m³	1.6
Steam	Inlet of steam	DN	DN50
Steam	Pressure of entry	MPa	0.6-0.8MPa
Compressed Gas	Inlet of air	DN	DN40
Compressed Gas	Pressure of entry	MPa	0.6-0.8MPa
Sewage	Sewage discharge outlet	DN	DN100
Sewage	Condensed water	DN	DN100
Efficiency of production		g/l kg/h	12g/l 530kg/h
			15g/l 670kg/h
			20g/l 1120kg/h
			30g/l 1220kg/h
Feed pipe		mm	Φ250mm
Installed power		KW	20.1KW
Density of foam		g/l	12-30g/l
precision			±%1
Overall dimensions		mm	758030004500
Weight of machine		kg	4800
