badminton post equipment

1. The badminton system is composed of a base, a column and a locking device

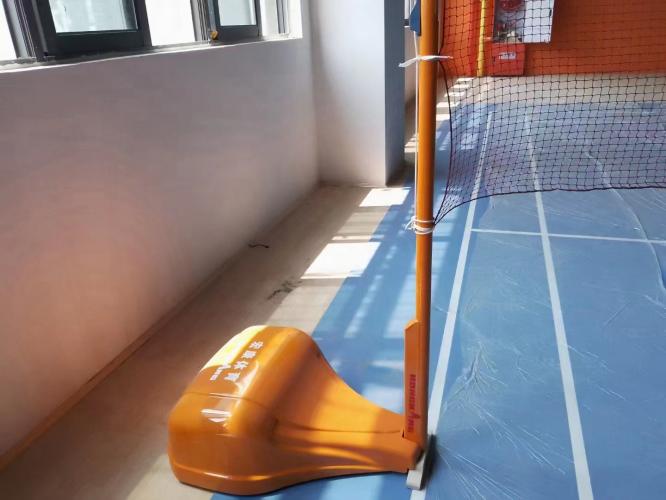

2.The portable badminton post is made of Φ40×4.0㎜ seamless steel pipe, the column is equipped with a net hook, which is convenient for the net, and there is a string column outside the column, and the other column is equipped with a tight line mechanism device, the mechanism is flexible, and the lock is reliable, and will not produce stuck or automatic loosening phenomenon. By pulling down the net line, the tightness of the rope can be adjusted to ensure that the rope is firmly pulled tight, and the height of the net is required: the center of the net is 1524±5mm from the ground, and the two sides of the net are 1550±8mm from the ground. When the net is pulled tight, the net column can be firmly maintained perpendicular to the ground, the vertical tolerance of the column axis to the horizontal plane is less than 1/500, and all parts of the net column do not invade the vertical line of the side line of the site.

3.Each mobile badminton post is composed of three precision cast iron parts, saving space for transportation and convenient installation, badminton base using cast iron base, weight: 180 kg/pair, base size: (600+780) *310*170; The badminton pillar base can be extended between 600 and 800, and the bottom is equipped with non-slip and shock-resistant pads to enhance the stability of the base. The base of the badminton pillar is equipped with a nylon roller with a diameter of φ65mm and a width of 40mm, which is convenient to move and does not damage the floor.
