1GE 1FE WIFI 4 XPON ONU

3 month ago

8 0 

4 month

Product details

1GE 1FE XPON ONU with WiFi 4

This XPON ONT is specially designed for different FTTH solutions. The ONT is based on a high-performancechipset (Realtek) technology solution, supporting IEEE802.11b/g/n WIFI technology and other Layer 2/Layer 3 functions, and can provide data services for carrier-grade FTTH applications.

It meets SOHO broadband access, video surveillance and other requirements to design an E/GPON Gigabit Ethernet products. This wifi 4 onu based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.

300M WiFi 4 GPON EPON ONU Features:

Realtek Chipset High Performance Solution
xPON Dual Mode Automatically Access to EPON/GPON
WiFi IEEE802.11b/g/n 2T2R 5dBi Antenna
Powerful Firewall
Compatible with different brand of GPON EPON OLT

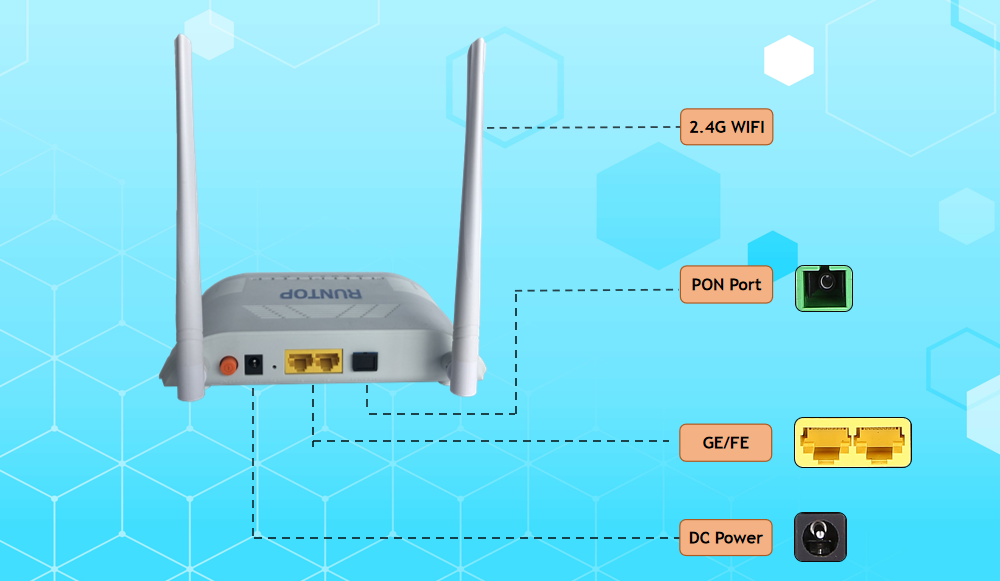

1GE+1FE Single Band xPON ONU Specification

PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: -27dBm Overload optic power: -3dBm ( EPON ) or -8dBm (GPON) Transmitting optical power: 0～+4dBm Transmission distance: 20k
WiFi interface	Compliant with IEEE802.11b/g/n 2.4GHz Operating frequency: 2.400-2.483GHz Support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi, Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
LAN interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Optical interface	SC/UPC connector
Wavelength	Tx1310nm,Rx 1490nm
Max power consumption	≤7W
LED	6, For Status of POWER、LOS、 PON、GE、FE、WiFi
Size (LWH)(mm)	185×120×34
Weight(kg)	0.24Kg
Power Supply DC	12V/1A
Working Temperature	-10～+5℃
Storage Temperature	-40℃～+70℃
Relative Humidity	5%～90% (non-conditioning)
