Product details

Guosheng Intelligent Technology Machine Tool Co., Ltd. is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC lathes, machining centers, sawing machines, drilling machines, grinding machines, metal forming machine tools, special machine customization and other full series of machine tool products, serving the machining industry for many years, has a strong after-sales service team, not only for their own product after-sales service, but also undertake various machine tool maintenance, service in place in time.

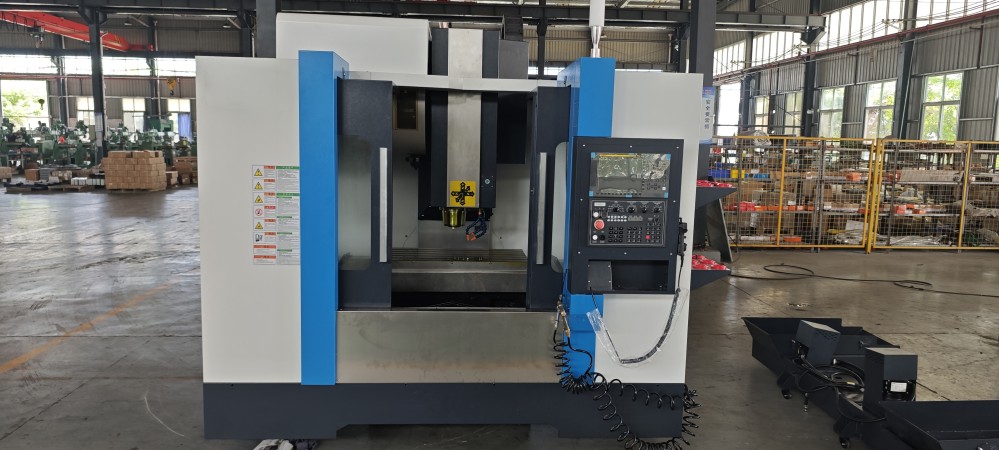

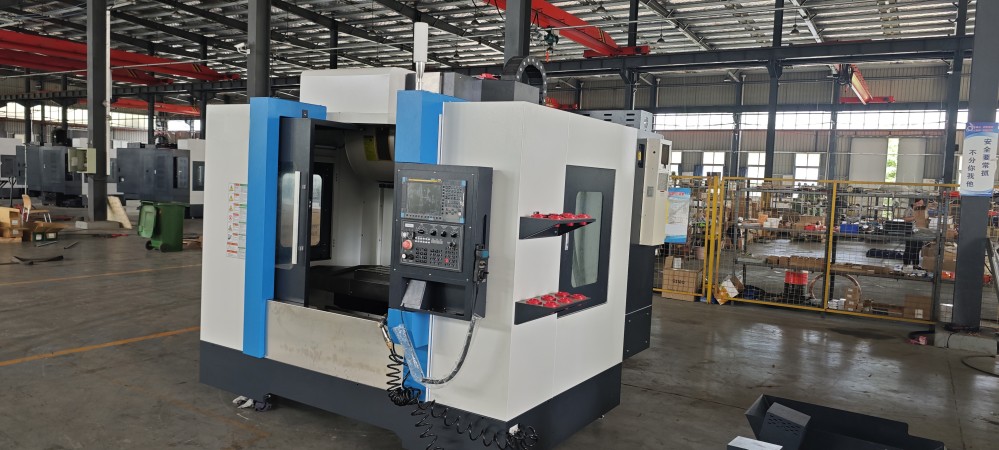

VMC855 vertical machining center as a mainstream model in the market, is also a flow type product, combined with our many years of experience in designing vertical machining center machine tools, the product is deeply upgraded and optimized, in line with the market and development needs and design, production of a high-quality product.

The maximum stroke of the machine tool X axis is 800mm, Y axis is 550mm, Z axis is 550mm, 1000x550mm large table design, combined with the newly designed host structure and exquisite assembly process, so that the machine tool has been comprehensively upgraded.

The VMC855 will undoubtedly be a leader in the industry. The product is available in three wire, two wire, one hard and three hard rail models, with optional gear transmission and customized high-torque spindle units for heavy cutting needs.

Base, column, table, slide, etc. are made of resin sand castings. Own a number of machining production lines, the mother machine adopts imported high-precision equipment, from the processing of castings on the quality of the product for strict self-inspection, to ensure the quality of products.

This machine tool can achieve a variety of disc, plate, shell, CAM, mold and other complex parts in one clamping, complete drilling, milling, boring, expanding, reaming, tapping and other processes processing, high precision, good finish, fast speed. In the design, the stiffness of the headstock, bed, and other components are reasonably matched, which greatly improves the rigidity of the whole machine and ensures the stability of re-cutting, and is suitable for single and mass production of complex parts in various industries.

Equipment technical parameter：

Equipment type			VMC855
name	Gauge lattice		parameter	Single position
work As a Taiwan	Table size		1000×550	mm
	Maximum allowable load		500	kg
	T-slot dimensions		5-18x100	mm
process Radius	Table travel -X axis		800	mm
	Table travel -Y axis		550	mm
	Spindle travel -Z axis		550	mm
	Spindle face to Table distance	Max	670	mm
		minimum	120	mm
	Distance from spindle center to Z-axis guide surface		590	mm
feed	Fast moving speed: X/Y/Z axis		48/48/36	m/min
	Feed rate		1-10000	mm/min
Electric machine	Spindle motor		7.5/11	Kw
Principal axis	Taper hole		BT40-150
	Transmission mode		Direct connection	r/min
	Revolution range		10000	r/min
Tool magazine	Tool library form		Disc type
	Tool storage capacity		24	sets
Positioning accuracy	Accuracy test standard		JISB6336-4：2000/ GB/T18400.4-2010
	X/Y/Z axis positioning accuracy		0.005	mm
	X/Y/Z axis repeated positioning accuracy		0.003	mm
Machine size (L × W × H)			270023502480	mm
Machine weight approx			5500	kg

Configure device model parameters：

Sequence number	Given name	Type number
1	Resin sand precision casting	HT300
2	Numerical control system	Fanuc OI-MF
3	Servo drive, motor	System matching
4	Spindle motor	7.5-11 kw
5	X/Y/Z triaxial torque	15-15-22
6	X/Y/Z rails	X(4):35/Y(4):45mm /Z(6):45mm
7	Lead screw	XYZ4016
8	Tool magazine	24 frequency conversion
9	Triaxial bearing
10	Belt spindle	BT40-150-10000
11	Cutting cylinder	4.5
12	Floor chip	√
13	Manual chip removal tank	√
14	Outer shield	√
15	Three-axis inner shield	√
16	Lubricating oil pump	√
17	Cooling pump	750W

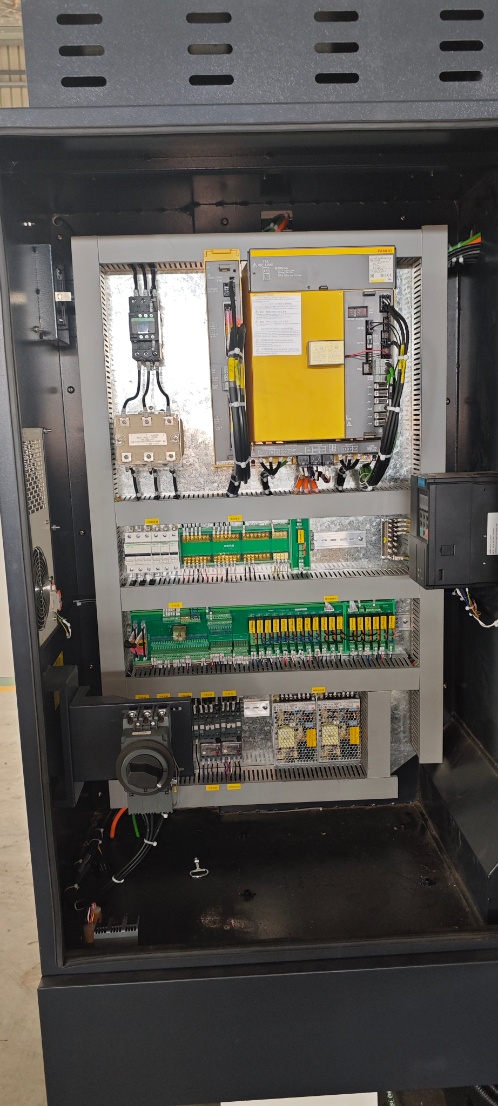

18	Electrical component	√

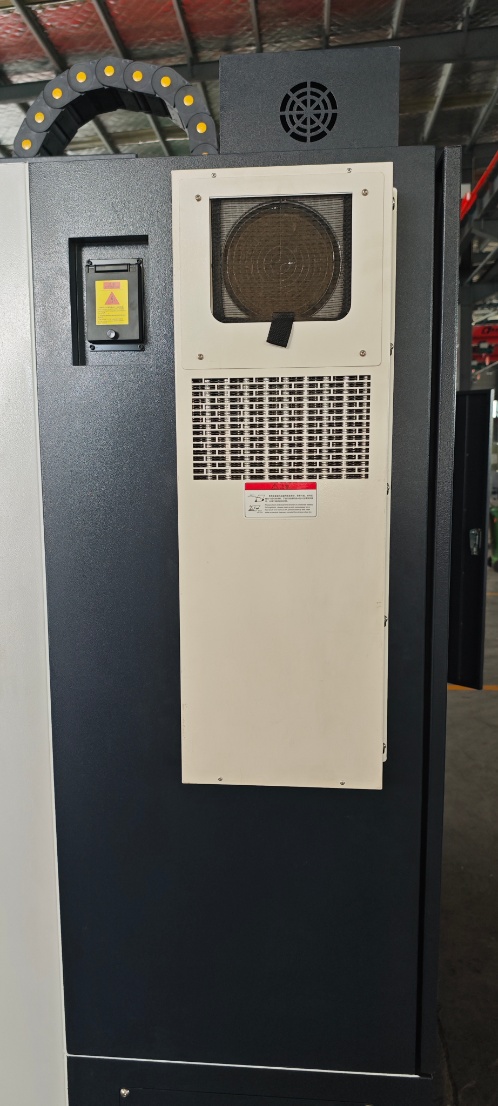

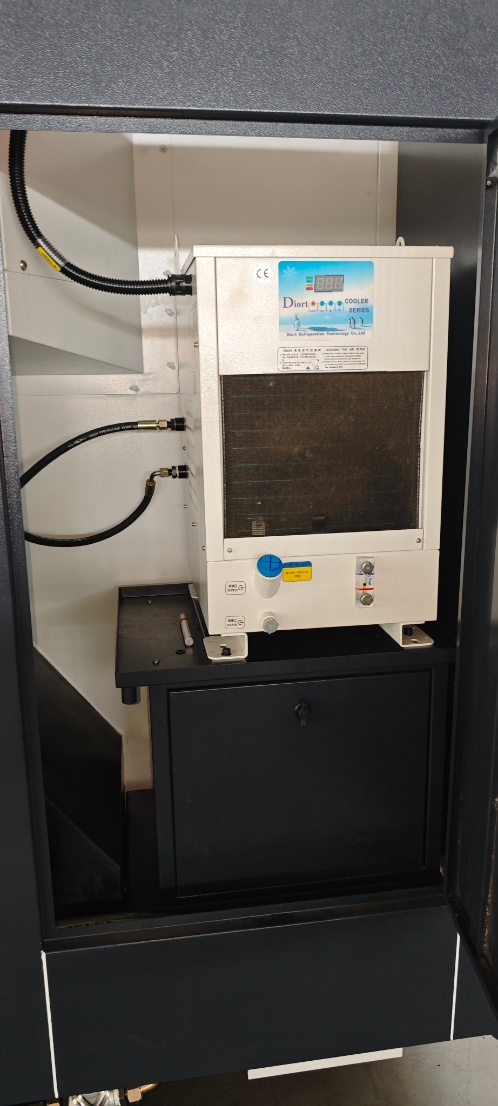

19	Machine tool heat exchanger	√

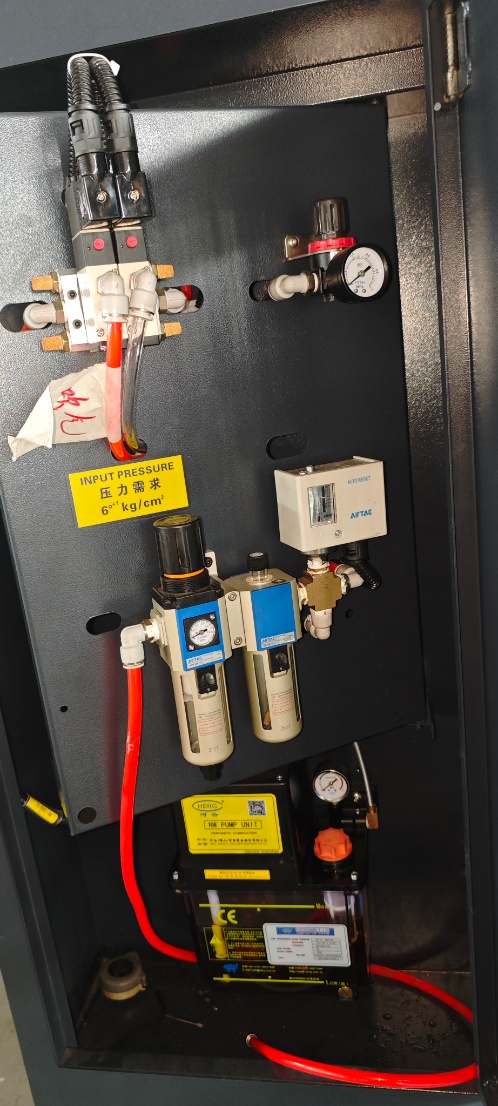

20	Pneumatic triplet	√

numerically controlled production center
