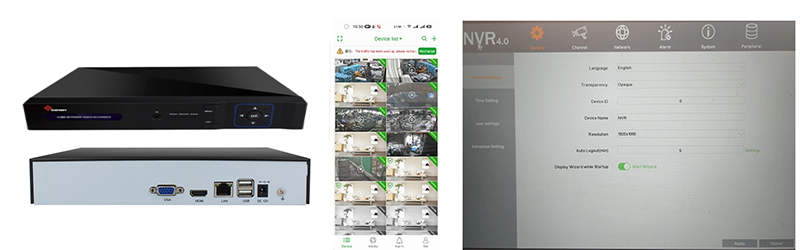

32 Channels Network Video Recorder NVR for CCTV IP Camrea
32 Channel NVR Main Features：
• 32ch nvr poe H.265 video decoding, support access H.265 and H.264 IPC
• Access to network camera that comply with ONVIF, RTSP standards and many mainstream vendors• VGA, HDMI synchronous output, HDMI output resolution can be up to 4K, VGA output resolution can be up to 1920*1080
• One-click to add a network camera
• Up to 8MP camera living, recording and playback
• Access bandwidth up to 80Mbps, support up to 16 channels living and recording
• Up to 32 channels synchronous playback, decoding capability up to 4 channels 1080P@30fps
• Upload snapshot and video backup to third-party cloud service, like Dropbox, Google Drive
• Built-in cloud and P2P transfer service, achieve access by website, mobile application(VSS Mobile),PC client, support alarm push
• Support UPNP, SMTP, SSL email alarm
32 Channel Nvr System Specification：
| Specification | |
| System Structure | Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access. |
| Main processor Hi3536C; | |
| Video Input | HD IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging |
| Access bandwidth 128Mbps; | |
| Video Output |
1channel HDMI output, support 4K (3840×2160)/30Hz,1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show; |
|
1 channel VGA output,homology with HDMI,support 1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show; |
|
| Support Seetong client preview,APP preview and seconds connection | |
| 1/2/4/6/8/9/10/16/25/32 pictures real time preview; | |
| Video recording resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K; |
| Video Capacity | Support H.265+/H.265/H.264 decoding; |
| NVR local recording playback support 4CH 2MP,2CH 4MP,1CH 4K; Seetong client recording playback support 4 channels. | |
| Audio |
Supports one 4 pin 3.5mm audio input and output jack; (1 input 3.3V/1KΩKΩ impedance, 2 output 2.8Vp-p/32Ωmin impedance; 1 GND) Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback; |
| Storage | 2*SATA hard disk interface,support 8TB capacity; |
| Support schedule record, motion detection linkage record; | |
| Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup; | |
| User | Local maximum support for 38 users; |
| Network Interface |
1*RJ45 Ethernet interface, support 10/100/1000M self-adaption; support TCP/IP, IPv4, DHCP, NTP, RTSP,P2P, SMTP, GB28181 and so on protocols; |
| Peripheral Interface | 2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export; |
| Front Panel | 1* power,1*record,1*network indicator light; |
