Yokelink Bust Expanding Anchor 8 Ways Black Painted

5 month ago

4 0 

Ningbo Yokelink Machinery Co.,Limited

10 year

Product details

10'' Bust Expanding Anchor fits 3/4in Rod

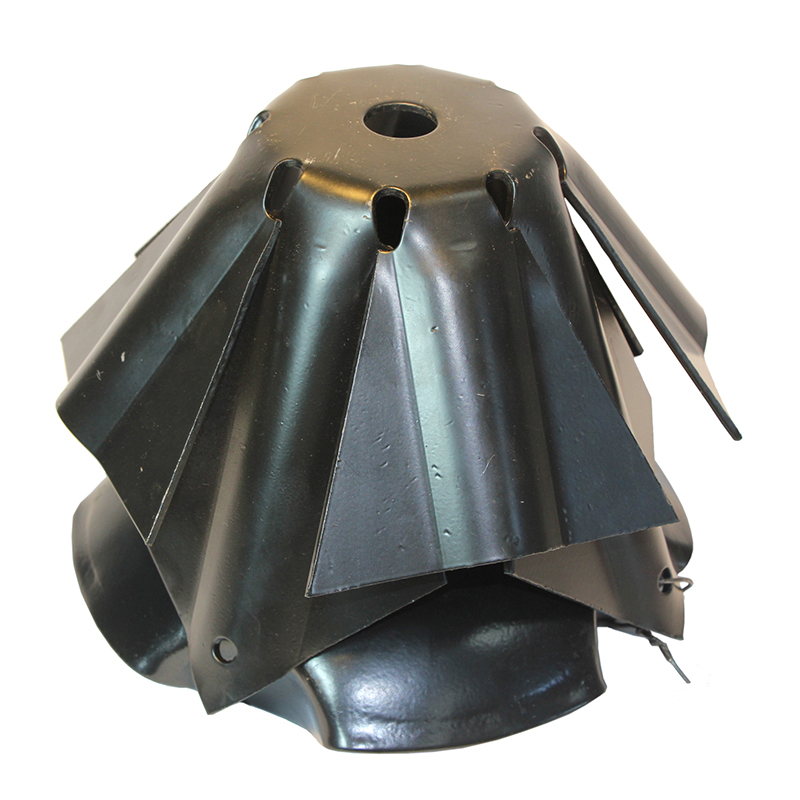

10'' Expanding Bust Anchor Glossy Black Painted

Bust Expanding Anchor Features

● Offers excellent holding power with minimal soil disturbance.

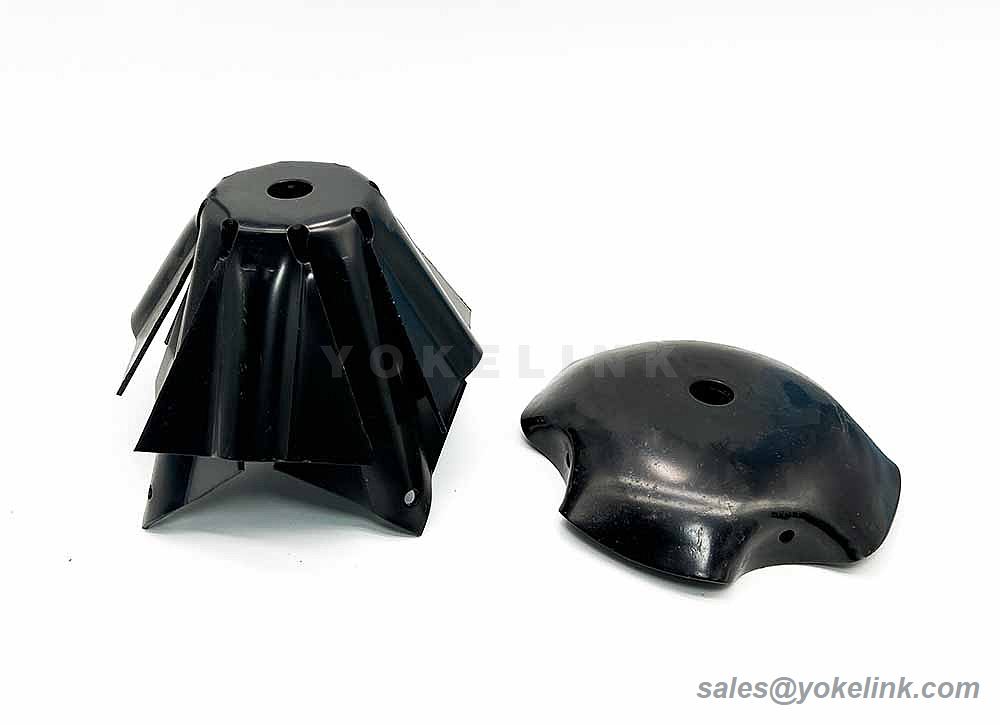

● A two piece assembly that consists of a curved base plate and an integral unit with eight expanding blades.

● The anchor is hot dip galvanized or black painting.

● Formed metal cavity on the underside of the curved base unit accepts the nut of the guy rod when assembling the anchor.

● The blades expand in a lateral motion by forcing the curved blades against the curved base.

● Anchor is for 10" diameter hole.

● Manufactured from AISI 1018 Steel.

● Holding strength per soil class:

Soil Class 3: 23000 lbs (Limited by rod strength)

Soil Class 4: 23000 lbs (Limited by rod strength)

Soil Class 5: 21000 lbs

Soil Class 6: 16500 lbs

Soil Class 7: 12000 lbs

Bust Expanding Anchor Specification

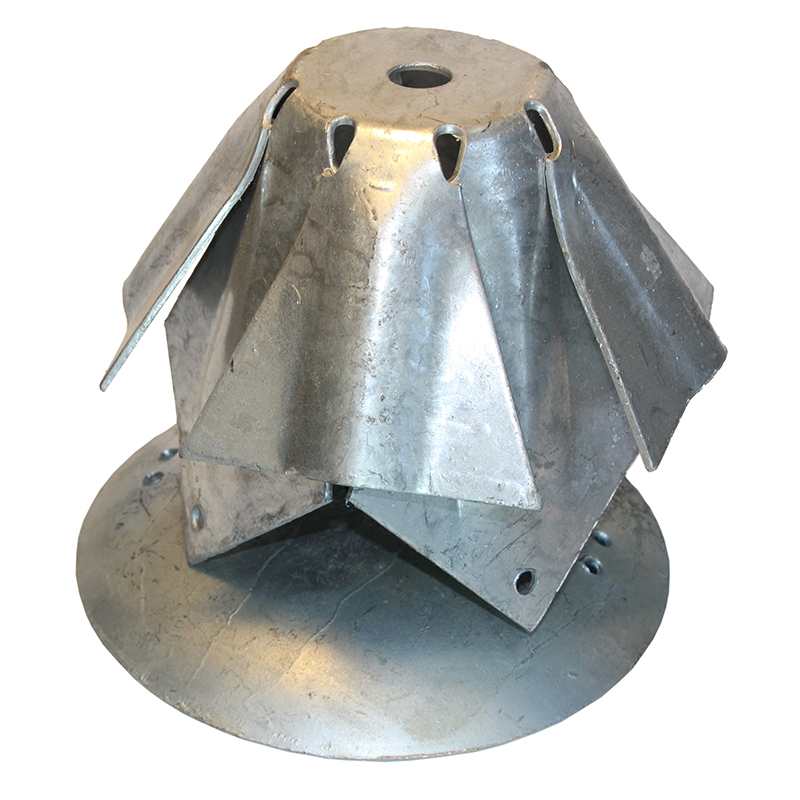

Expanding Bust Anchor Hot Dip Galvanized

Black Painting Hot Dip Galvanized

Part No.	Anchor Hole	Rod Size	Area	Weight
Part No.	Inch	Inch	Sq. In.	Kg / Pcs
E0310	8	5/8 or 3/4	135	3.5
E0320	10	3/4 or 1	200	8.0
E0330	12	1 or 1-1/4	300	14.5

What is Bust Expanding Anchor ?

The Bust Expanding Anchor is a type of hardware used in pole line construction. It is designed to provide a secure and stable anchor point for poles and other structures. The anchor consists of a steel rod with a tapered end and a conical-shaped expansion shell. When the anchor is inserted into a pre-drilled hole in the ground, a mechanical tool is used to expand the shell, causing it to grip the surrounding soil and create a tight, stable hold.

Yokelink Bust Expanding Anchors are made for installation in hole augered by power drillers. A retainer on the bottom holds the nut from the forged eye rod. Black Painting or Hot dip galvanized finish.

How does Bust Expanding Anchor Works?

Expanding bust anchor used in earth anchoring, commonly for stabilizing structures, retaining walls, or guy wires. This type of anchor expands underground to provide stability by gripping the surrounding soil.

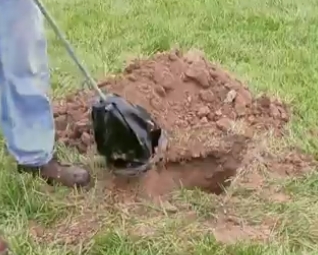

In the installation, a hole to the anchor’s size is augured parallel with the guy angle and to a size based on the length of the rod. This rod is secured to the expanding and is lowered to the hole. The expanding and tamping tool is deployed for striking the anchor top and open these blades into the soil. The cave is backfilled and then tamped later.

The curved head (expander and tamper) is used to distribute the bar weight around the anchor rod evenly to reduce the handle vibration. The bar hook wraps around the bust anchor rod to keep the expanding head from getting off the anchor top plate.

How does expanding bust anchor works (2)

Below shouws the how it works when it expanded. How does expanding bust anchor works

Anchor Expanding, How does Bust Expanding Anc

Where to buy high quality Bust Expanding Anchor ?

When you need Bust Expanding Anchor, refer to above our catalog. We offer them in a full selection of sizes, provide the part number to get a quote on these bust expanding anchor, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
