CRB2BS15-180S

CRB2BS15-180S SMC Type Rotary Actuator Pneumatic Cylinder

Series CRB2, single or double vane, rotary actuator is available in 10, 15, 20, 30 and 40 bore. The single vane style uses specially designed seals and stoppers which enable this compact type actuator to rotate up to 270 degrees. Double vane type is standardized for 90 and 100 degrees. The lightweight design features a compact body with a built-in angle adjuster unit and auto switch unit. Rotating angle can be easily checked using the chamfered position of the shaft. (Only for CDRB with auto switch).

Ordering Code of CBR2 series Rotary Actuator:

Specifications of CBR2 series Rotary Cylinder:

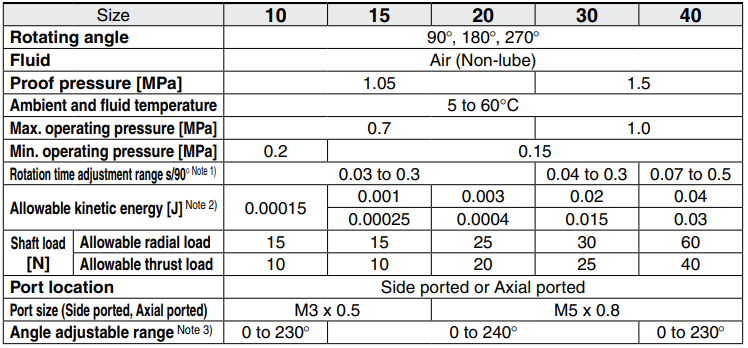

Single Vane Style:

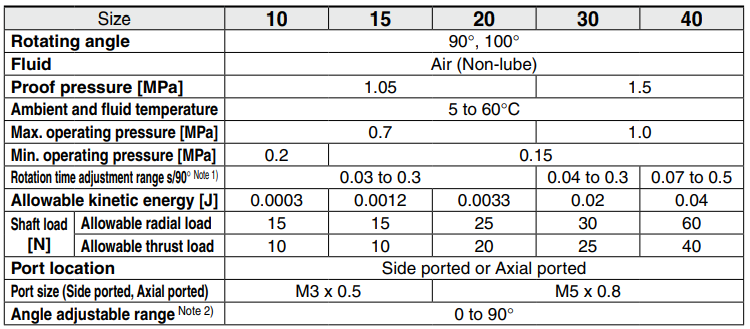

Double Vane Style:

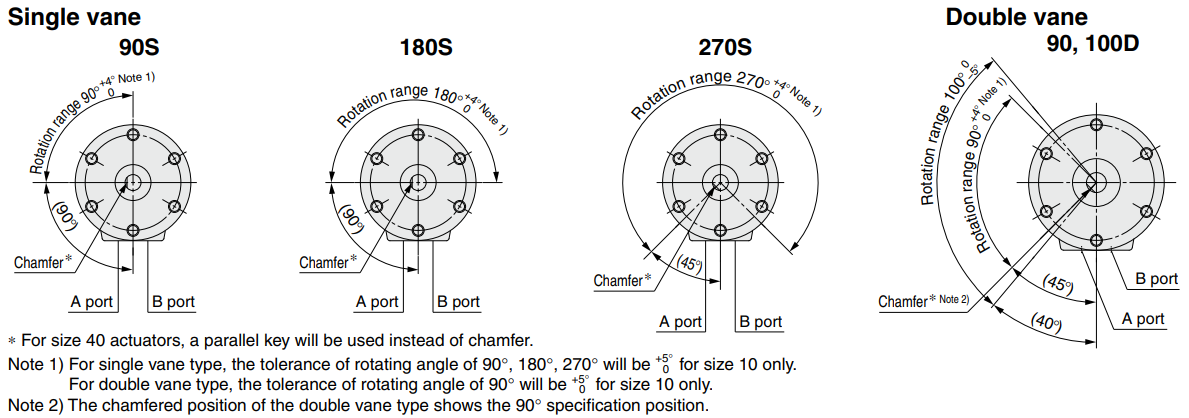

Chamfered Position and Rotation Range:

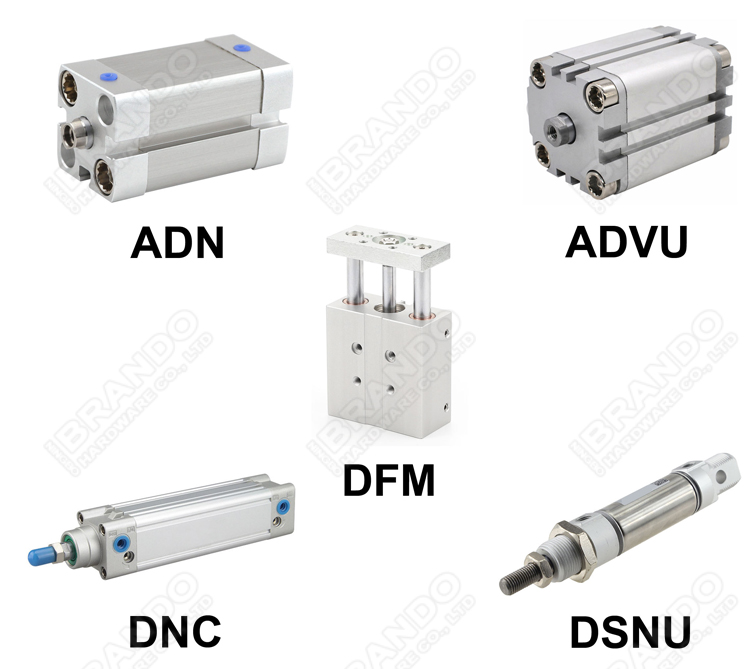

Brando Supply Pneumatic Air Cylinders:

Airtac Type Pneumatic Cylinder	Festo Type Pneumatic Cylinder	SMC Type Pneumatic Cylinder
