SLT006: 6mm diameter ball spline

Ball splines are designed to roll smoothly and transmit torque in precision-ground grooves by installing steel balls in an outer cylinder. Their unique design utilizes a larger contact angle (40°) for improved sensitivity and significantly increased load-carrying capacity. This makes the ball spline ideal for applications involving high vibration and shock loads, ensuring it operates effectively in demanding environments.


Advantages of linear ball splines:

1. High Load-carrying
The rolling grooves for the steel balls are precision-ground and feature a Gothic arch design with a 40° contact angle. This larger contact angle allows for significant load capacity in both radial and torque directions.

2. High Rigidity
The larger contact angle provides high rigidity and allows for appropriate preloading as needed, resulting in increased torque stiffness and moment stiffness.

3. Zero Angular Clearance
Using a contact angle of 40° with relative 2 to 4 rows of steel balls, the spline shaft is combined with the outer cylinder. Additionally, adjusting the preload method allows for zero clearance in the rotational direction.

4. Mount-Simple on Design
Thanks to the special design of the HOJAMA ball spline, the steel balls will not fall out even if the outer cylinder is removed from the spline shaft. This makes assembly, maintenance, and inspection very straightforward.

HOJAMA welcomes you to inquire about any questions regarding product pricing and delivery time!

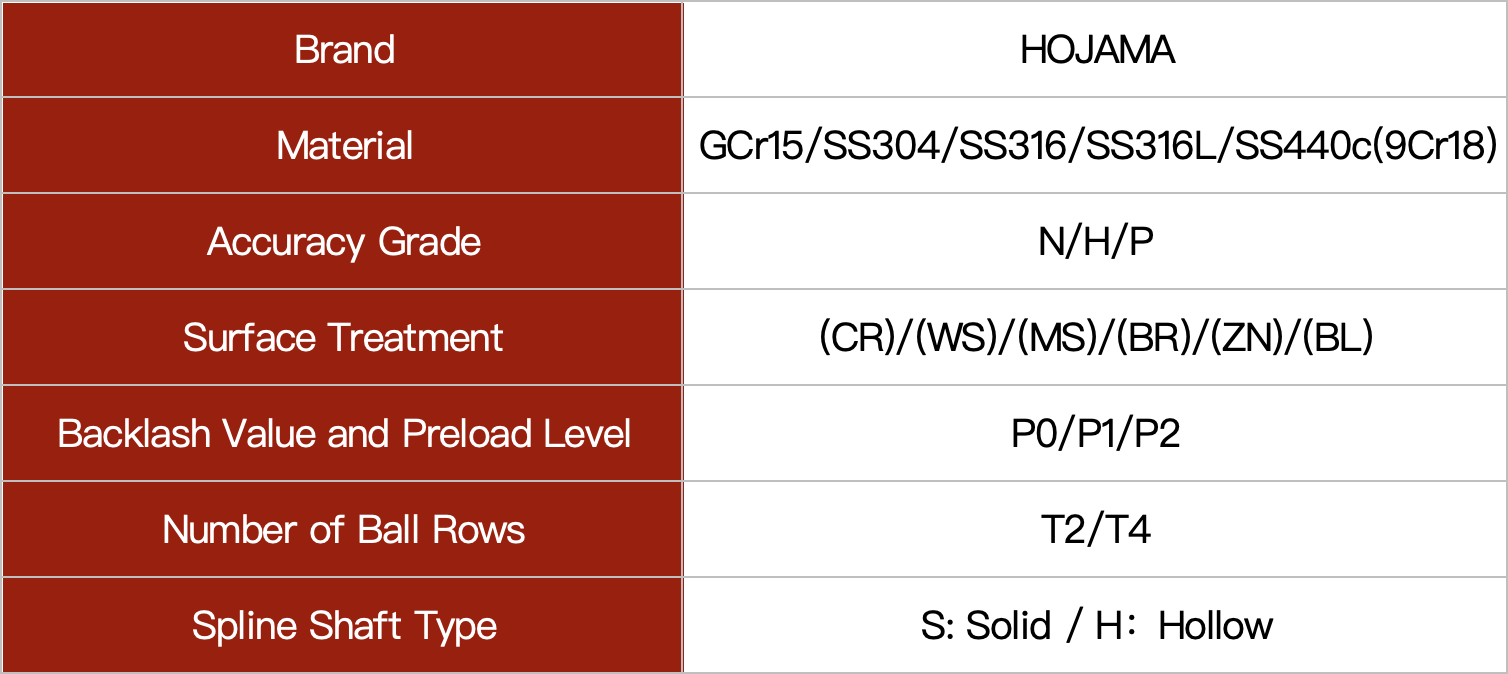

Brand HOJAMA
Material GCr15/SS304/SS316/SS316L/SS440c(9Cr18)
Accuracy Grade N/H/P
Surface Treatment (CR)/(WS)/(MS)/(BR)/(ZN)/(BL)
Backlash Value and Preload Level P0/P1/P2
Number of Ball Rows T2/T4
Spline Shaft Type S: Solid / H:Hollow

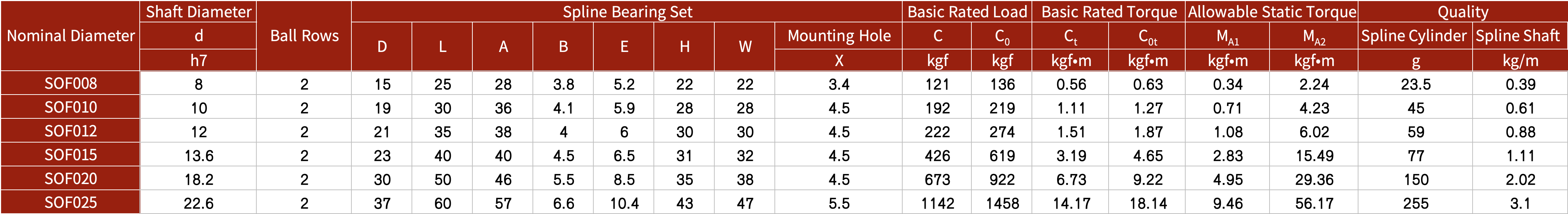

SLT ball spline Specification

SLT ball spline specification
