Qingling New Energy Refrigerated Vehicle
11 month ago

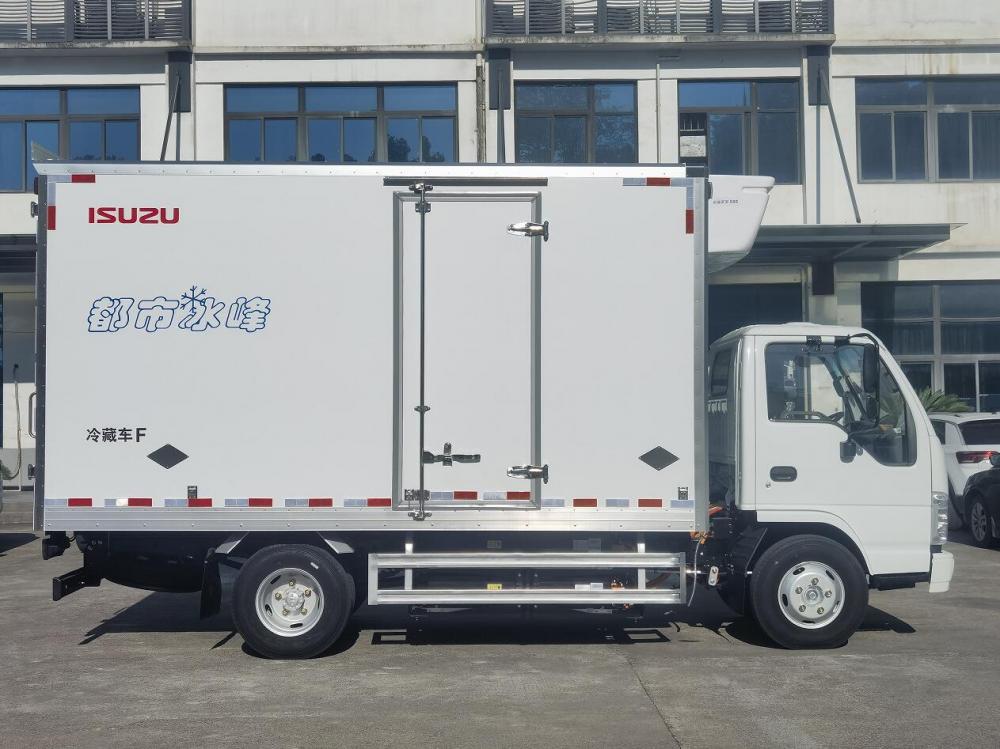

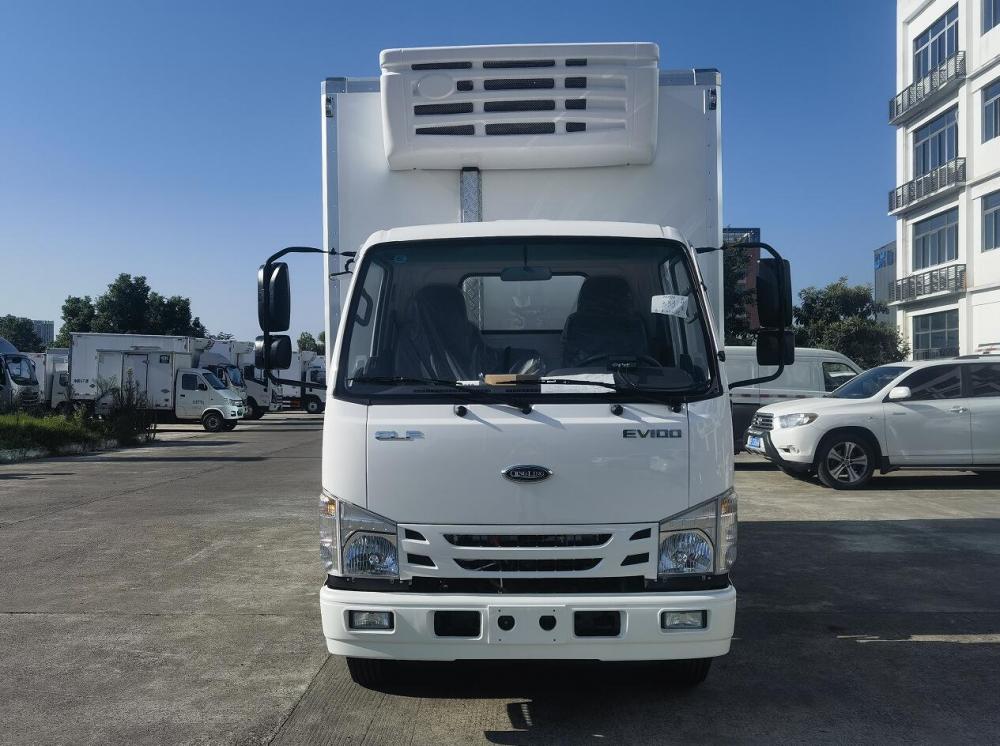

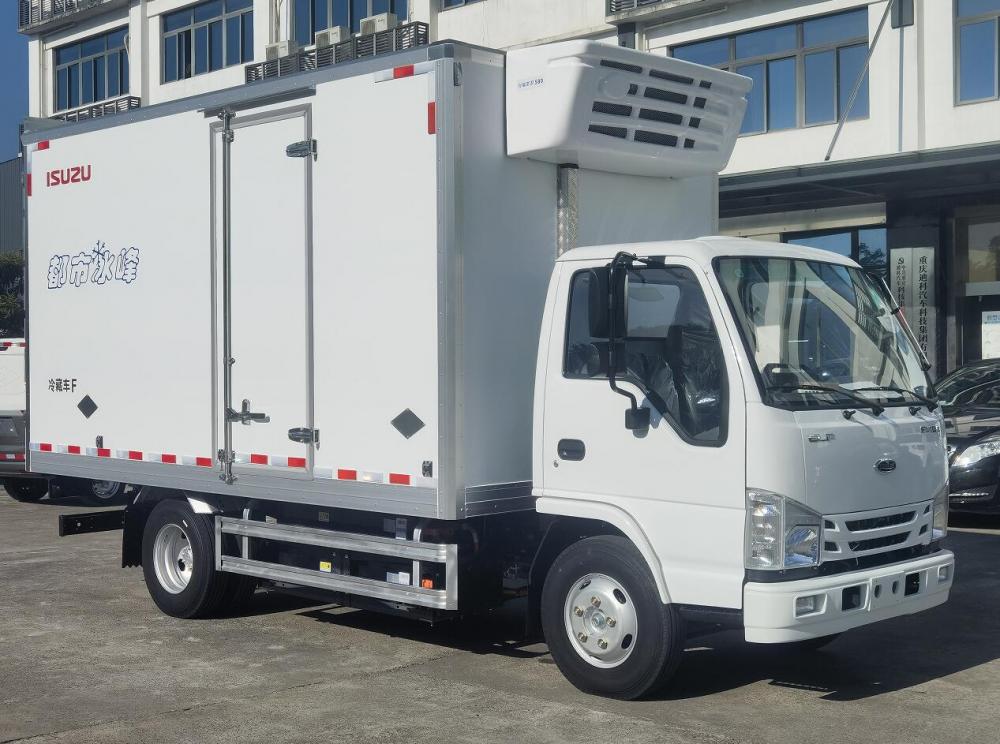

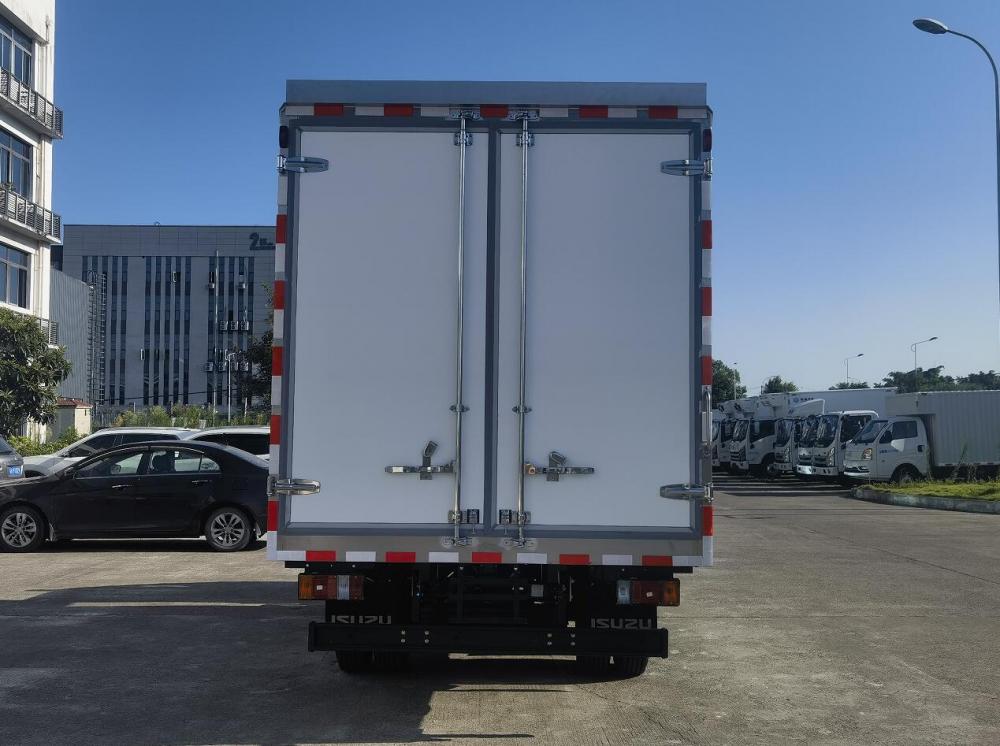

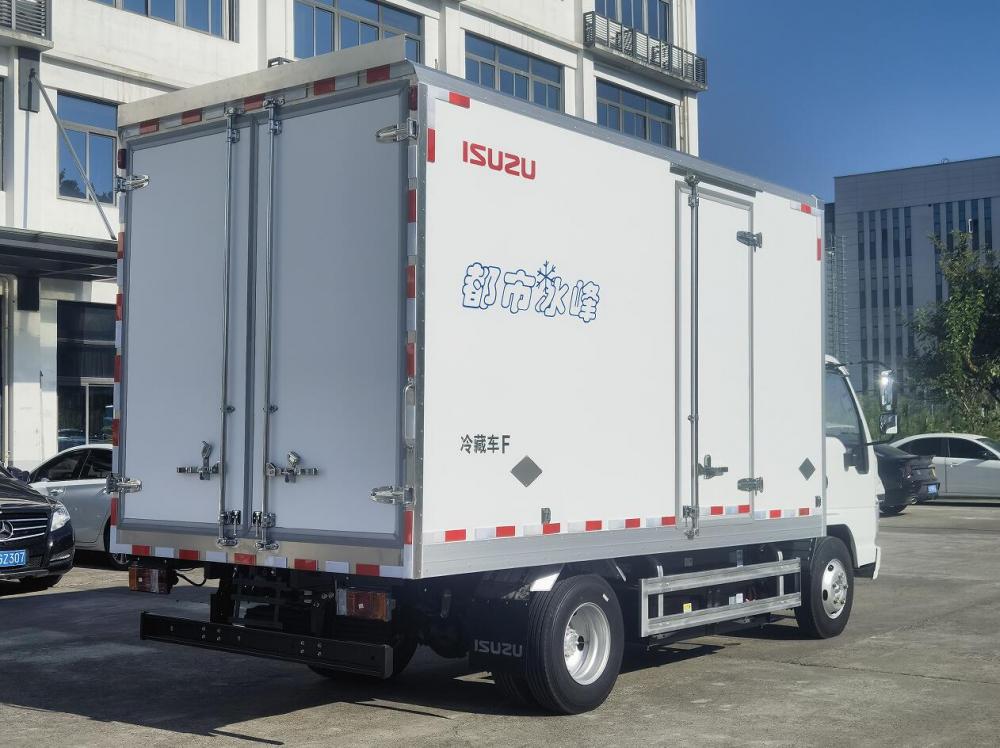

A refrigerated truck is a closed box transport vehicle used for transporting frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used for transporting frozen foods (refrigerated trucks), dairy products (dairy transport vehicles), vegetables and fruits (fresh goods transport vehicles), vaccines and drugs (vaccine transport vehicles), etc.
|
Technical parameters of the entire vehicle |
|||
|
Product trademark |
Qingling Pai (Traditional) Pai |
product name |
Pure electric refrigerated truck |
|
Total mass (Kg) |
4495 |
External dimensions (mm) |
5995x2070,2245x2920,3360 |
|
Rated load capacity (Kg) |
1315 |

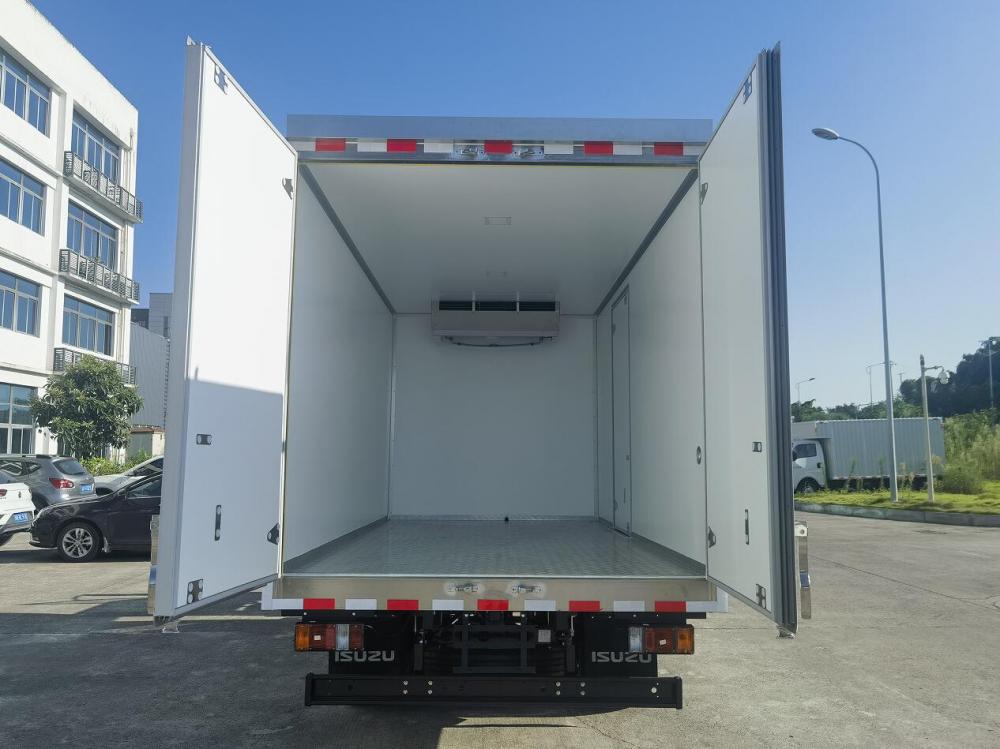

Cargo compartment size (mm) |
4095x1900,2100x1800,2100 |
|
Curb weight (Kg) |
3050 |
|
|
|
Approach angle/departure angle (°) |
19/24,19/17 |
Front/rear suspension (mm) |
1015/1620 |
|
Axle load (Kg) |
1805/2690 |
Maximum speed (km/h) |
100 |
|
notes |
1. The material of the side protection device is Q235, connected by bolts, with a cross-sectional size of 50mm x 25mm and a height of 335mm above the ground; 2. The crossbeam material of the rear lower protective device is Q235, connected by bolts, with a cross-sectional size of 139mm x 52mm, a thickness of 2.0mm, and a ground clearance of 380mm; 3. The vehicle is equipped with ABS, and the model of ABS and its controller is APG3550500A; CM4YL, manufactured by Zhejiang Asia Pacific Electromechanical Co., Ltd; Guangzhou Ruili Kemi Automotive Electronics Co., Ltd; 4. Battery type/model/manufacturer: Lithium iron phosphate battery/CB220/Ningde Times New Energy Technology Co., Ltd; 5. The peak power of the vehicle's motor is 110kW, with a rated power of 60kW; 6. This car can be equipped with regular, widened rearview mirrors, door rearview mirrors, optional tires, and optional right side single door with the chassis; 7. This model can be equipped with ETC in car devices and a spare tire as an option; 8. The carriage is closed and cannot be opened; 9. The curb weight includes spare tires, fire extinguishers, on-board tools, etc; The weight of the cargo box is 655kg. The side plate, top plate and floor are made of PU (polyurethane foam sandwich panel)+thermoplastic composite plate, with a thickness of 88mm, 85mm and 70mm. The curb weight includes fire extinguishers, on-board tools, etc; The cargo box weighs 744kg, 745kg, and the side plate, top plate and floor are made of PU (polyurethane foam sandwich panel)+thermoplastic composite plate, with a thickness of 88mm, 85mm and 70mm; 10. Optional hydraulic tailboard, the horizontal length of the hydraulic tailboard when folded is 280mm, the weight of the tailboard is 350Kg, the rear protection is a cylindrical structure, and the cross-sectional size is Ф 114mm, made of steel plate SAPH, with a thickness of 2.0mm and a height of 435mm above the ground; 11. The car is equipped with a blue logo "EV100/EVK100". |
||
|
Chassis production enterprises |
Qingling Motors Company Limited |
Address |
|
|
number of axles |
2 |
Number of tires |
6 |
|
wheelbase |
3360 |
||
|
Tire Size |
6.50R16LT 12PR,7.00R16LT 8PR |
||
|
Number of steel plate springs |
1/1+1,3/3+2 |
||
|
Front wheelbase (mm) |
1504 |
Rear wheelbase (mm) |
1525 |
|
fuel type |
Pure electric |
Emission standards |
|
|
Engine model |
Engine Manufacturer |
Displacement (ml) |
Power (Kw) |
|
YTD060W23 |
Shanghai Automotive Electric Drive Co., Ltd |
0 |
110 |
