Ductile Iron Sidewalk Guy Fittings

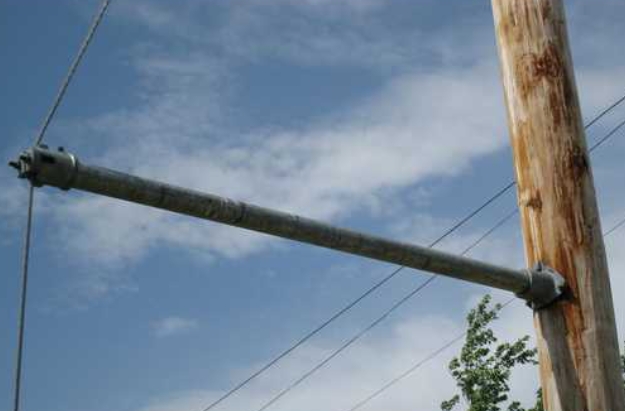

Yokelink Sidewalk Guy Fittng made from Ductile cast Iron per ASTM A536, are used with standard pipe near sidewalks and buildings wehre there is insufficient space for standard guying and where head clearance must be maintained. All components are hot dip Galvanized to meet ASTM Specification A153.

Application:

These fittings are used with standard pipe near sidewalks and buildings where space is not available for standard guying. We carry multiple sizes and can make them per your specifications so please contact us today for a quote for what you need.

Used where space limitations requires a strut guy. Attaches with one 5/8" bolt and two 1/2" lag screws. Use with Nos. 0502 or 0512 End Fittings and 2" diameter pipe (Not included).Hardware for deadending conductor and guy wires, offered by the YOKELINK, consist of Thimbleye and ovaleye bolts, banding, eyenuts and eyelets, guy attachments and guy markers. All products are designed and manufactured in compliance with applicable electric utility and communications industry standards.

- Secured to pipe with 1/2" x 3/4" set screw (included)
- One 11/16" and two 9/16" pole mounting holes in casting
- Clamp body and keeper plates are ductile iron per ASTM A-536 and galvanized per ASTM A-153

Specification:

Features：

1) Hot Dip Galvanized

2) Cast of ductile iron

3) Individual clamps for each guy wire

4) Pole plate mounts using four 1/2-inch lag screws

5) Accept 5/16-inch minimum guy wire

When you need Cast ductile iron Sidewalk Guy Fitting, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Cast ductile iron Sidewalk Guy fitting, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
