2023 battery cable application

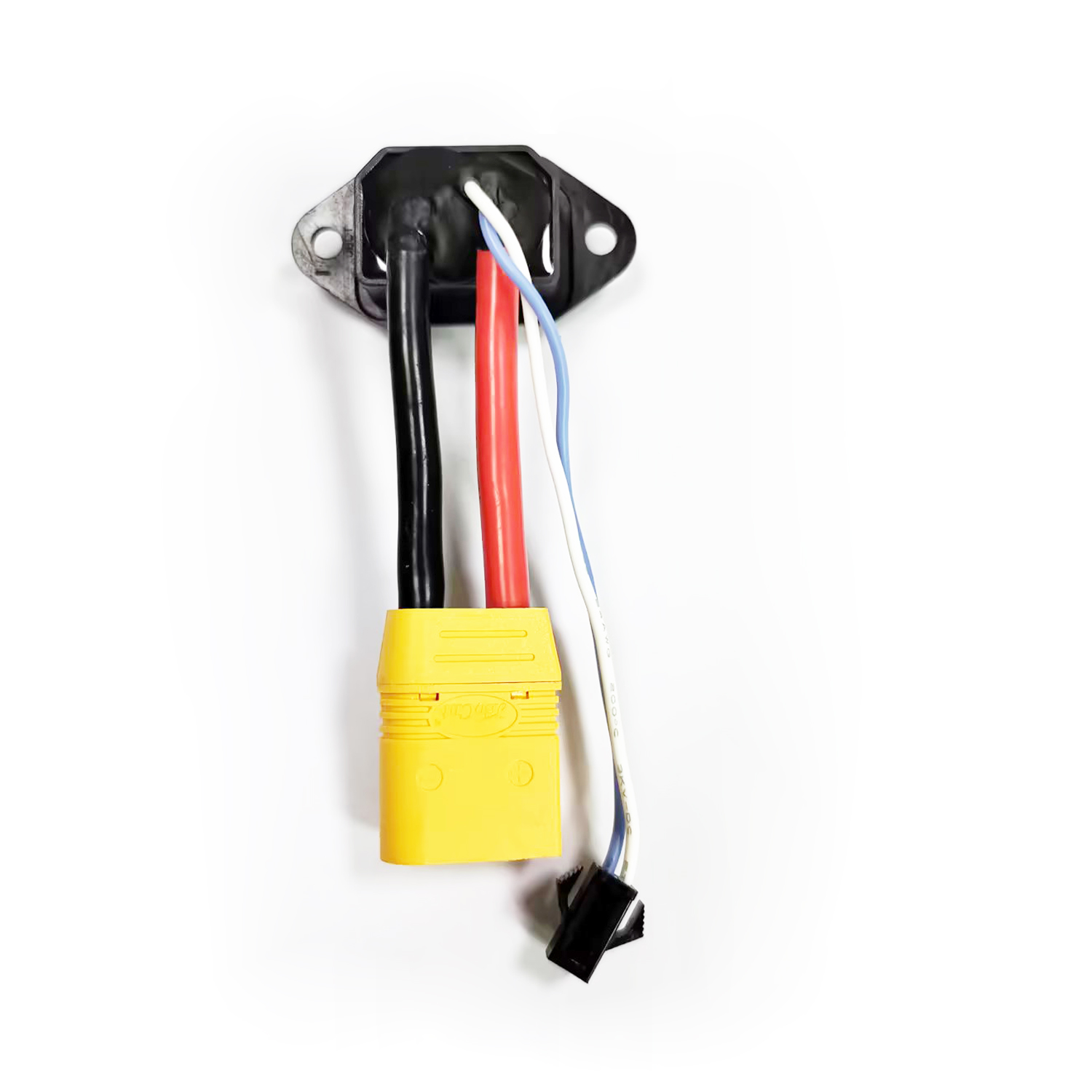

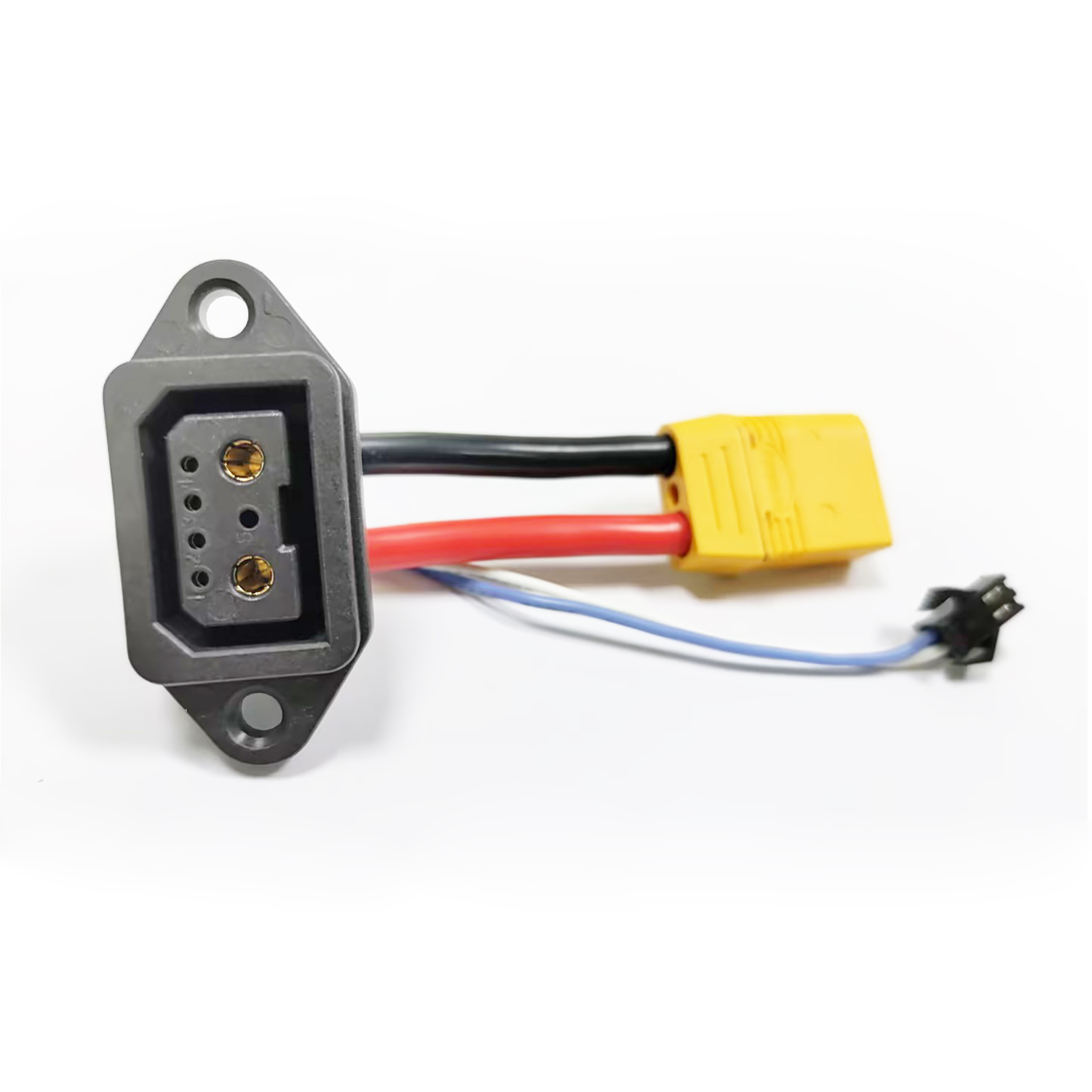

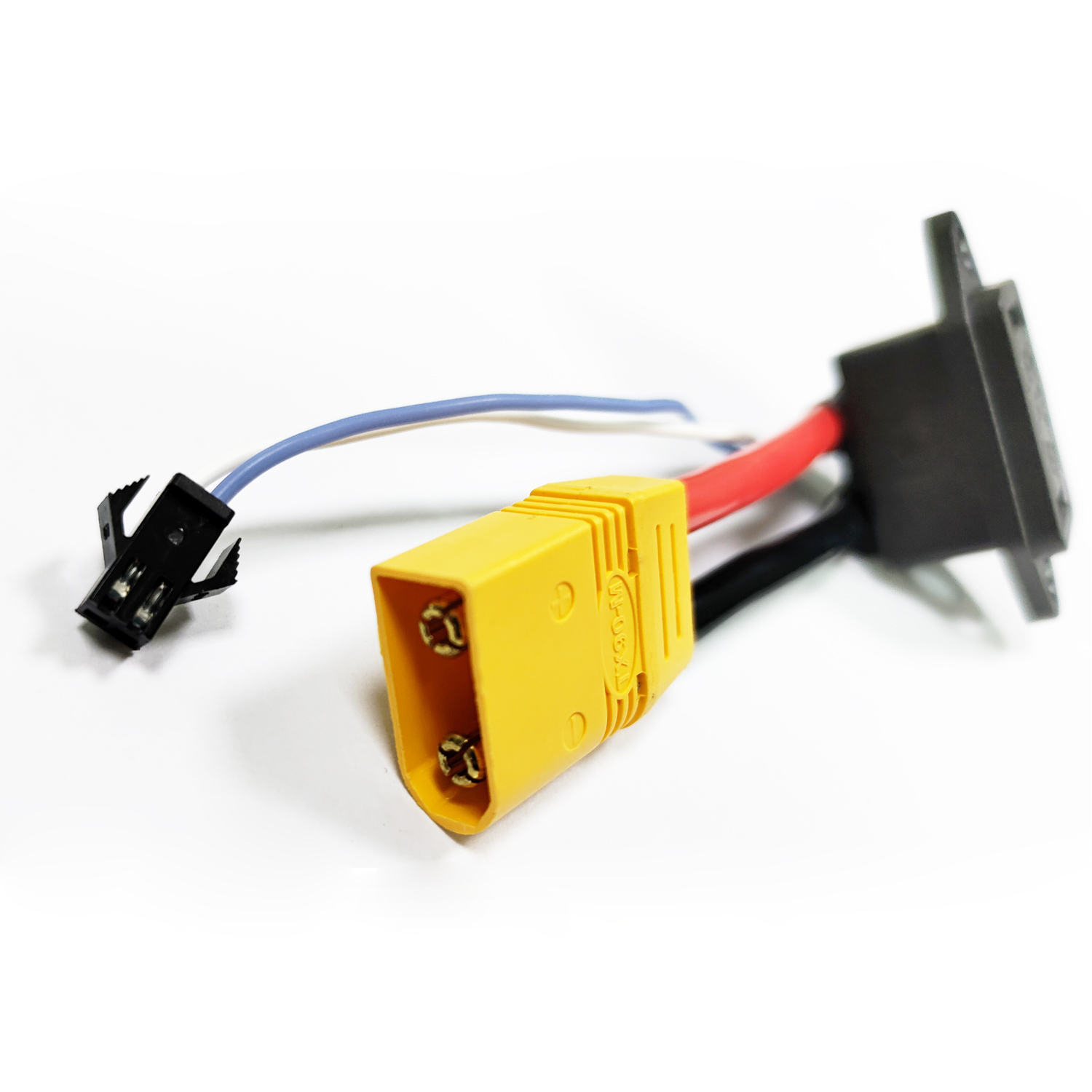

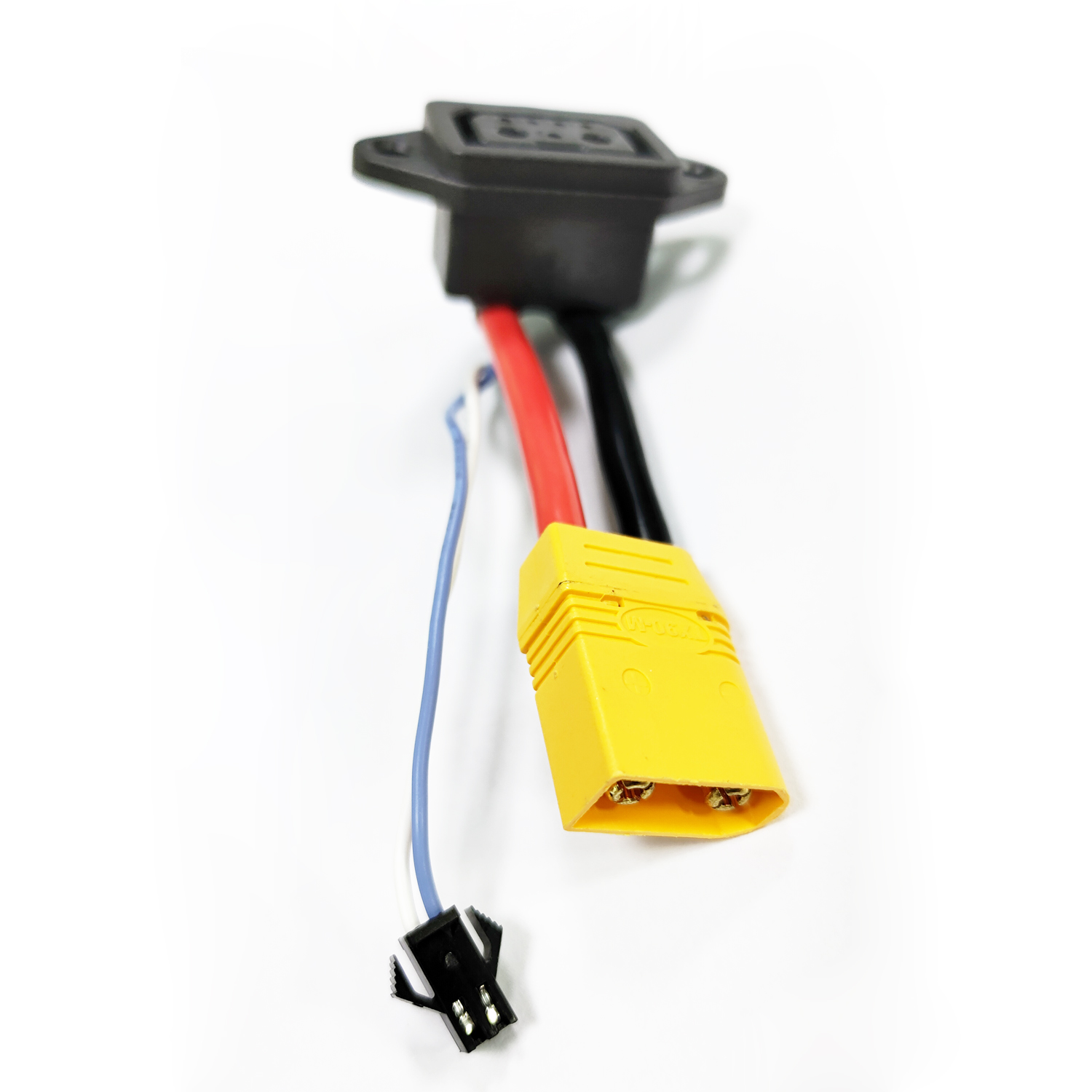

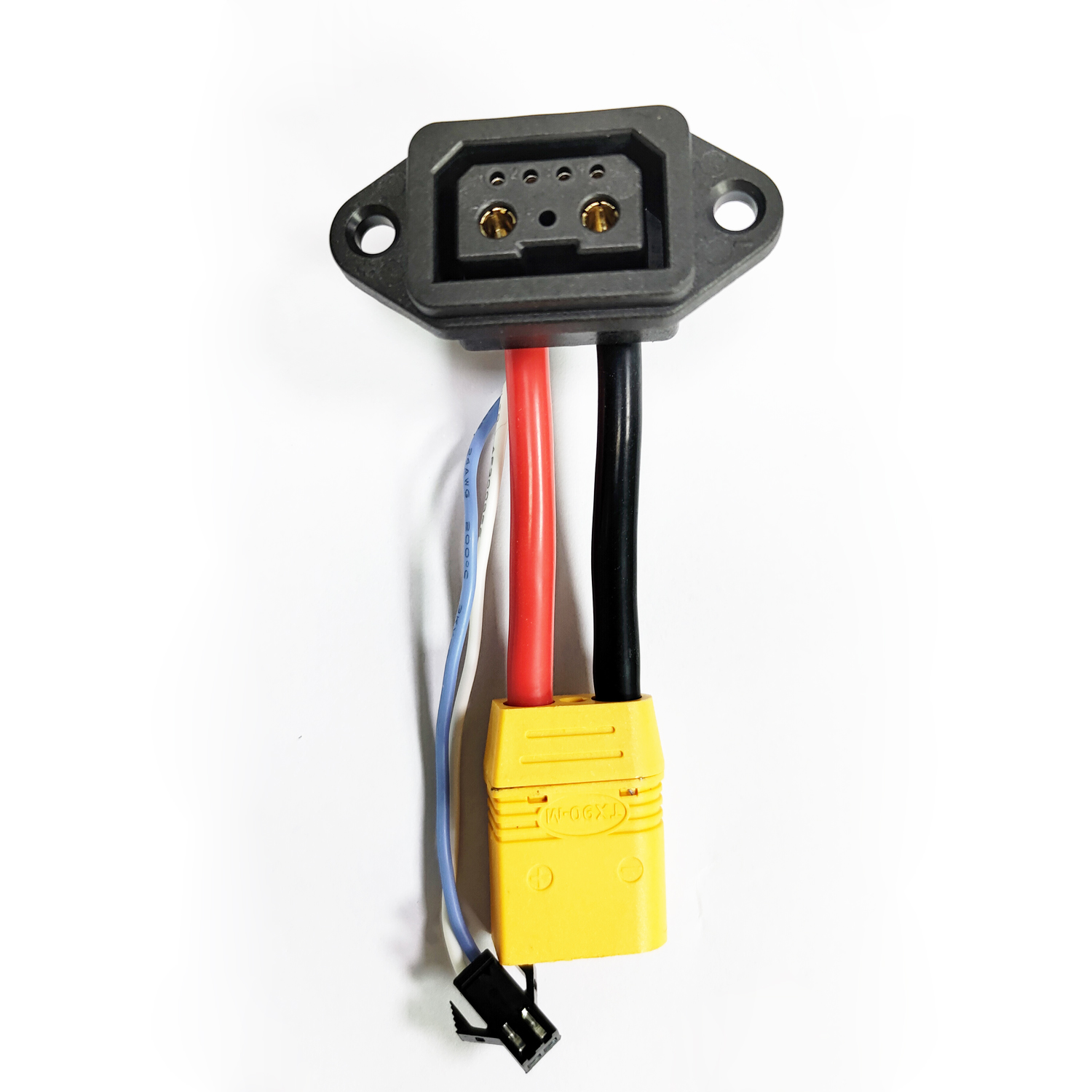

Battery to battery cable is an assembly of XT60 connector to 2 and 4 female socket which is used for electric bike.In this cable kit,there is a socket with 6pins.Two bigger pins are mainly wires for charger or discharge.Four small pins are for signal transmission.Most customers just need the black and red wires for power.Blue and white wires crimped with JST connector SMP series 2.54mm pitch connector.

What advantages does such kind of battery connection cable?

interface: In the 2+4 interface mode, "+" represents the positive charge and discharge electrode of the battery pack,and "-" represents the negative charge and discharge electrode of the battery pack.This design makes the connection more clear and stable.

Materials and surface treatments‌:The plastic body is made of PA66 material,with fire rating UL 94-V0,indicating that it has good flame retardant properties.The terminals are nickel-plated with copper alloy,and the crown springs can be silver-plated with beryllium copper.These materials are selected to help improve electrical conductivity and corrosion resistance.

2 and 4 plug for lithium battery is widely used in charge or discharge base in electric vehicle battery charging station,charging cabinet,quick change battery and other fields,as well as new energy charging pile and other new energy fields.
