Wholesale natural rubber rhombic rubber sheet

8 month ago

12 0 

8 month

Product details

Products

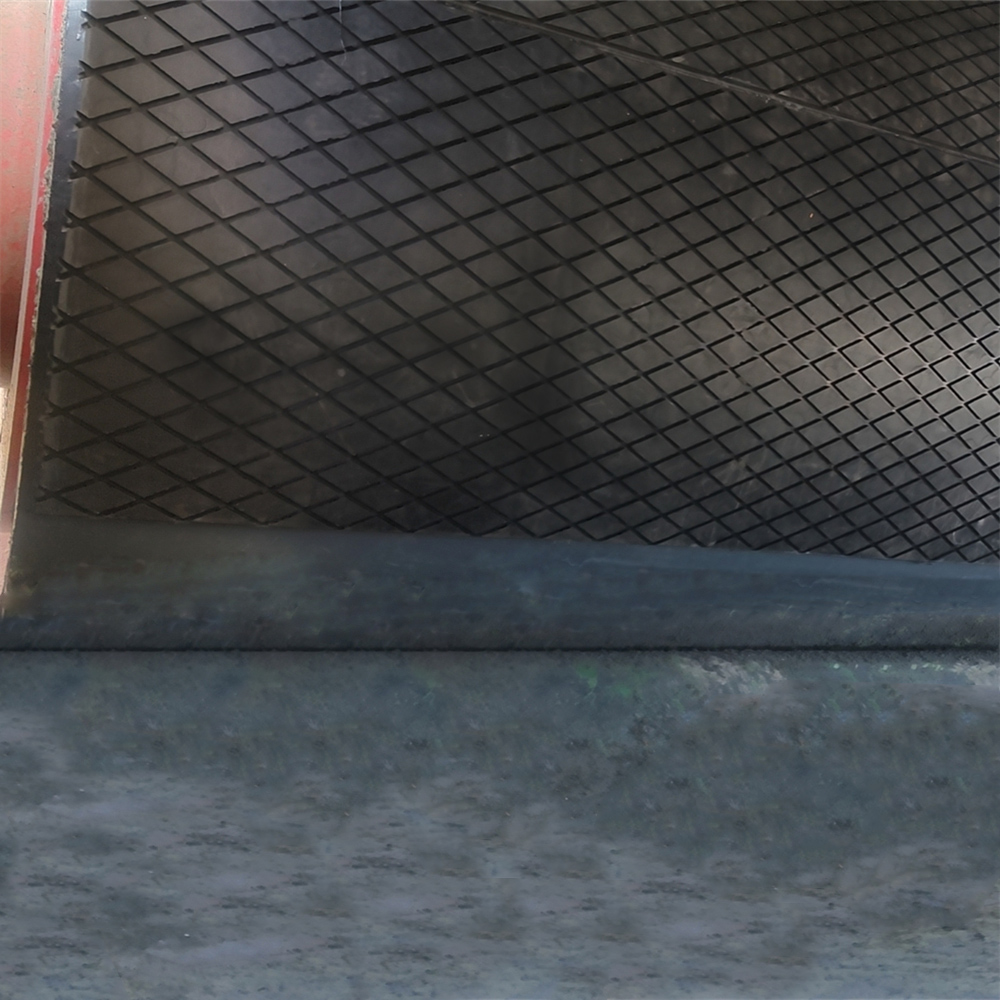

Roller wrapping rhombic rubber sheet is a kind of rubber sheet with pattern commonly used in the cold wrapping operation of the roller. In the past, when the cold gluing service is carried out on the driving roller, the rhombic rubber sheet is required, because the friction coefficient of the rhombic rubber sheet is bigger, which can better prevent the conveyor belt from slipping, and avoid the unnecessary trouble.

Product Advantage

The surface of ordinary rubber sheet is relatively flat, with no special pattern or texture, while the surface of rhombic rubber sheet has a unique rhombic pattern, and these rhombic blocks are formed by molding or engraving.
In terms of structure, ordinary rubber sheet mainly consists of a rubber layer and may not contain a semi-vulcanized layer or have other special structures, but rhombic rubber sheet usually contains a semi-vulcanized layer on its back in addition to the rubber layer, which is one of the key characteristics of rhombic rubber sheet.
The abrasion resistance of ordinary rubber sheet depends on the material and thickness of the rubber, while the rhombic rubber sheet has higher abrasion resistance due to the design of rhombic pattern, which can disperse the pressure of material on the surface of the drum more effectively and reduce the single-point abrasion, so the ordinary rubber sheet has higher abrasion resistance.
Ordinary rubber sheet has relatively low friction and less anti-slip than rhombic rubber sheet. Rhombic rubber sheet can help to prevent belt slippage and improve conveying efficiency due to the rhombic pattern which increases the friction between the roller and the conveyor belt.

Product Application Scope

With its unique rhombic texture, this rubber sheet has excellent performance in conveying systems for coal, ores, power plants, steel, metallurgy, fertilizers, grain depots, ports and other industries.

Product specification

The thickness of rhombic rubber sheet is available in these specifications: 10mm, 12mm, 15mm, 20mm.

The length of each roll is divided into two types: 12500mm and 10000mm.

A variety of specifications are available to meet the needs of most applications.

This product is a customizable product, the price is not the final price, before ordering, please communicate with customer service specific specifications, parameters, prices and other details.

The main products we produce are:Wear-resistant Ceramics（Roller Covered Ceramic Adhesive Sheet,Roller Covered Rhombic Rubber Sheet,Three-in-one Ceramic Composite Liner）,Engineering Plastic,Adhesive.
