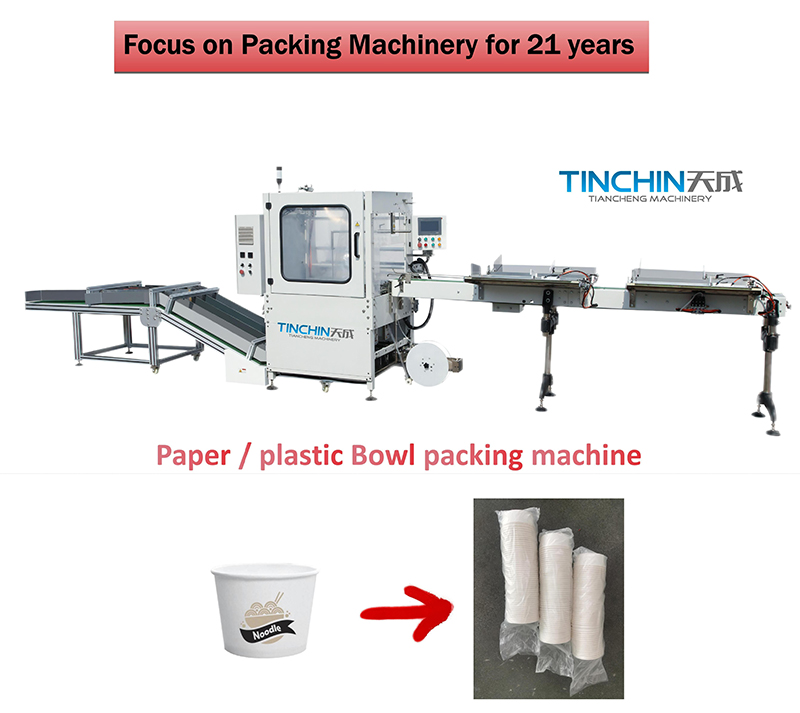

Salad bowl packing machine and case machine
8 month ago
|
Packing machine
|
||||
|
No
|
Item
|
Data
|
|
|
|
1
|
Model No.
|
TCJ-QSJ700
|
||
|
2
|
Product
|
Paper cup/paper bowl
|
||
|
3
|
Top Diameter
|
Φ60mm-Φ95mm /Φ95mm-Φ150mm ( other size can be customized)
|
||
|
4
|
Max. Stacking length of cups
|
630mm/720mm
|
||
|
5
|
Packaging material
|
HDPE.LDPE.PP.POF.PO
|
||
|
6
|
Packaging film thickness
|
12μm-50μm
|
||
|
7
|
Max speed
|
20bags/min
|
||
|
Case machine
|
||||
|
No
|
Item
|
Data
|
|
|
|
1
|
Max.Packaging Speed
|
Speed 12 sleeves /min
|
||
|
2
|
Effective cup Diameter
|
Φ60mm-Φ150mm
|
||
|
3
|
Carton Length
|
350mm to 500mm( other size can be customized)
|
||
|
4
|
Carton Width
|
240mm to 450mm( other size can be customized)
|
||
|
5
|
Carton height
|
330mm to 600mm( other size can be customized)
|
||
|
6
|
Electrical Req
|
0.8KW one phase 220V 50HZ/60HZ
|
||
|
7
|
Air Req
|
0.6MPa
|
||
