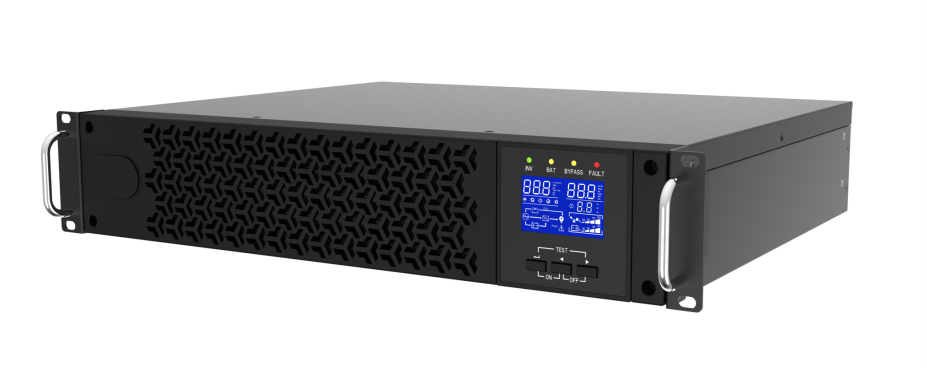

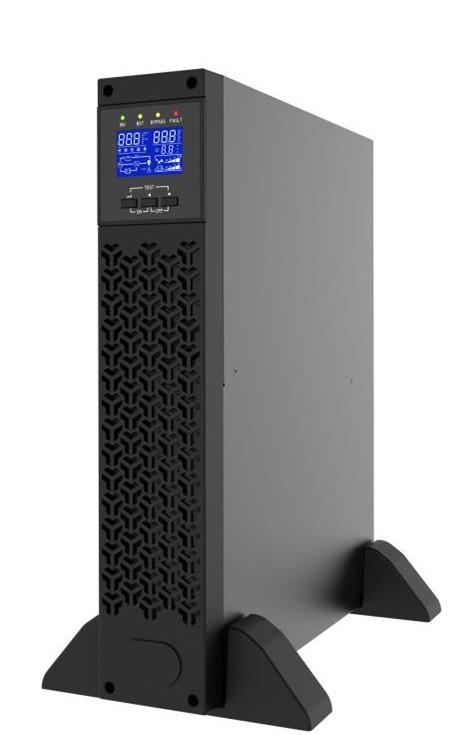

HPR11 series Rack Online UPS 1-3kVA

 HPR11 Series High Frequency Online UPS

1/2/3kVA    1Phase Input/1Phase Output

 In a bustling office, when people power up the HPR11, a wave of assurance washes over them. The pure sine wave output ensures their sensitive equipment runs smoothly, free from interruptions. The zero transfer time feels almost magical—work continues seamlessly, even during outages. Monitoring via the LCD, they appreciate its quiet operation, allowing them to focus. The robust overload capacity reassures them that it can handle unexpected surges. Knowing their critical systems are protected fosters a sense of confidence and calm, empowering them to tackle challenges head-on.

◆Application

IDC(Internet Data Center), network, servers and workstations, control system, communication system, office, PC etc

◆Features

●True Online Double Conversion technology

●Wide input voltage range

●DSP technology

●Advanced PFC technology,input PF>99%

●Strong charging capacity

●Lighting and surge protection

●LCD/LED display

●Smart RS232 and USB ports with monitoring software

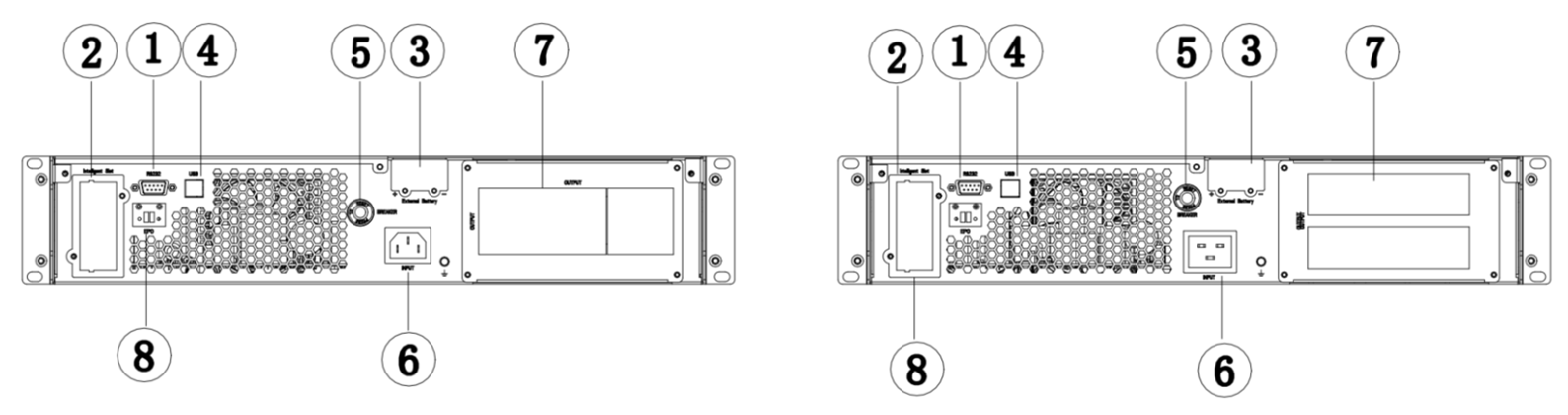

◆Rear Panel

1KS/1KL                                                    2KS/2KL/3KS/3KL

① RS232                                   ⑤ Input over current protection breaker

② Smart slot                                          ⑥ AC input

③ External battery connection port       ⑦ Output socket

④ USB                                                  ⑧ EPO

◆Specification

Input

• Rated Voltage: 208/220/230/240Vac, L+N+PE
• Voltage Range: 110~300Vac
• Frequency Range: 40-70Hz
• Power Factor: ≥0.99
• THDi: ≤4% (linear load); ≤5% (non-linear load)

Output

• Rated Voltage: 208/220/230/240Vac, L+N+PE
• Voltage Regulation: ±1%
• Frequency: 50/60Hz ± 0.1%
• Harmonic Distortion: ≤2% (linear load); ≤5% (non-linear load)
• Transfer Time: Zero
• Waveform: Pure sine wave
• Crest Factor: 3:1
• Overload Capacity (Line Mode):
  • 102%~110% load, 30min
  • 110%~130% load, 10min
  • 130%~150% load, 30s

  • 150% load, 200ms

• Overload Capacity (Battery Mode):
  • 102%~110% load, 1min
  • 110%~130% load, 10s
  • 130%~150% load, 3s
  • 150% load, 200ms

Efficiency

• Line Mode: 94.5% | 95.5% | 95.5%
• Battery Mode: 88.5% | 91.5% | 91.5%
• ECO Mode: 98%

Battery

• Nominal Voltage: 24Vdc/36Vdc | 48Vdc/72Vdc | 72Vdc/96Vdc
• Battery Number:
  • 7/9Ah * 2pcs (HPR1101KS, HPR1101KL)
  • 7/9Ah * 4pcs (HPR1102KS, HPR1102KL)
  • 7/9Ah * 6pcs (HPR1103KS, HPR1103KL)
  • External (HPR1101KL, HPR1102KL, HPR1103KL)
• Charge Current: 1A | 1-12A settable

Communication

• Interface: RS232 / USB / SNMP card (optional) / Dry contact card (optional)

Environment

• Operation Temperature: 0~40°C
• Humidity: 0~95% (non-condensing)
• Noise: ≤50dB @ 1 meter away
• Altitude: Up to 1000m without derating

Physical

• Dimensions (WDH) mm:
  • 440*379*86 (HPR1101KS, HPR1101KL)
  • 440*568*86 (HPR1102KS, HPR1102KL)
  • 440*719*86 (HPR1103KS)
  • 440*450*86 (HPR1103KL)
• Weight (kg):
  • 11.1 / 13 (HPR1101KS, HPR1101KL)
  • 18.7 / 22.5 (HPR1102KS, HPR1102KL)
  • 24.4 / 27.8 (HPR1103KS)
  • 10.8 (HPR1103KL)

All specifications are subject to change without prior notice.
