Product details

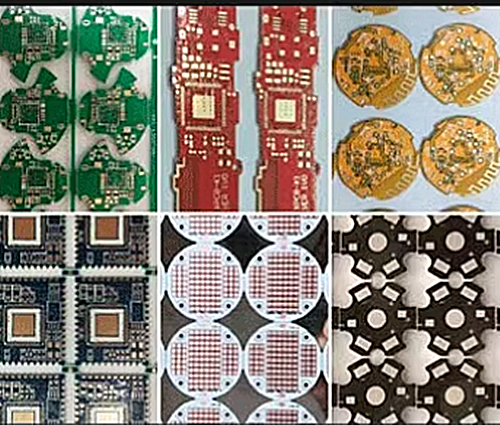

V cut blade are used for V-groove cut processing of printed circuit board, suitable for single side PCB, double side PCB, multi-layer PCB, halogen-free PCB, FR-4, high TG PCB, aluminum PCB, copper PCB.

Instruction:

1, V cutter is suitable for PCB industry manual V-CUT machine and automatic CNC V-CUT machine.

2, V grooving cutting blade can be used for a variety of series of aluminum PCB, medium and high TG board, glass fiber board, FR2, FR4, single-layer board, multi-layer board cutting a variety of cardboard.

3,The outside diameter of the tool, the inner hole, the number of teeth, V Angle can be customized according to customer requirements.

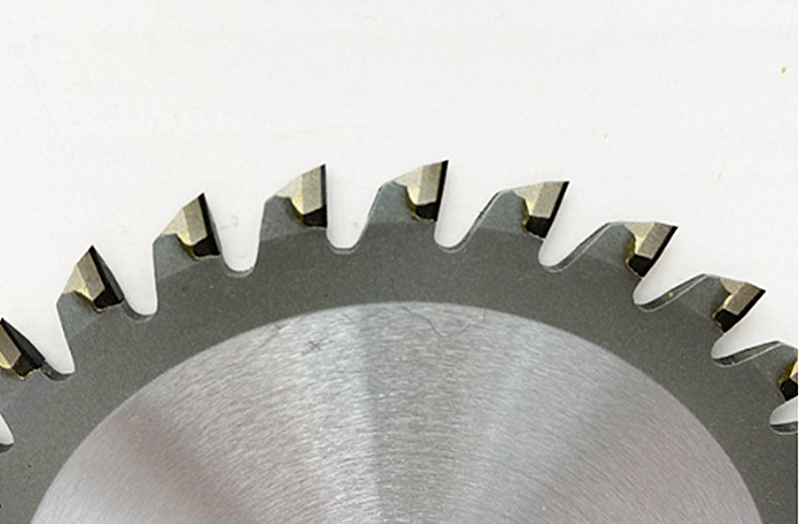

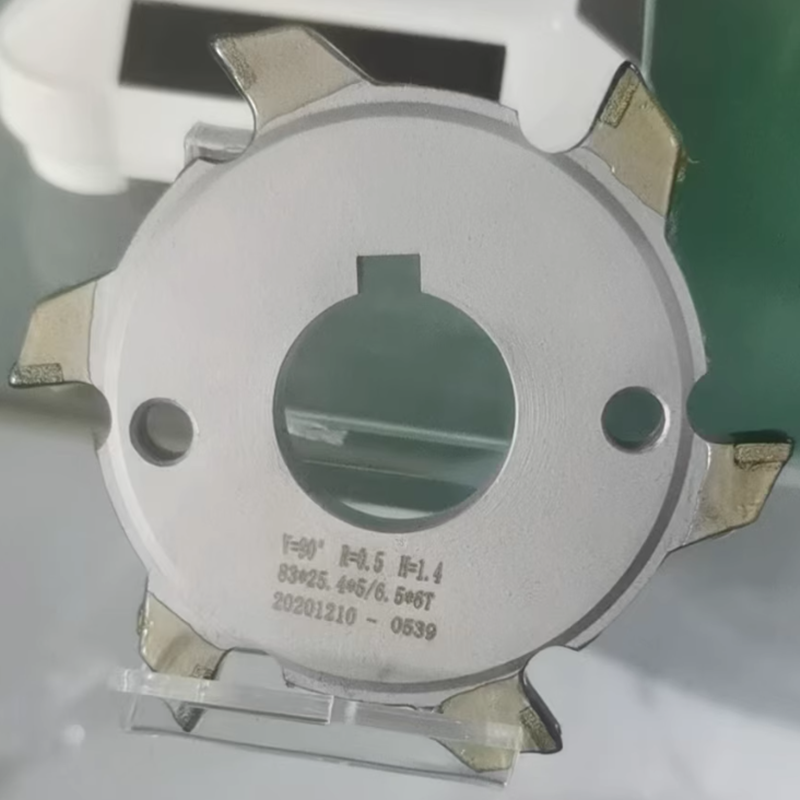

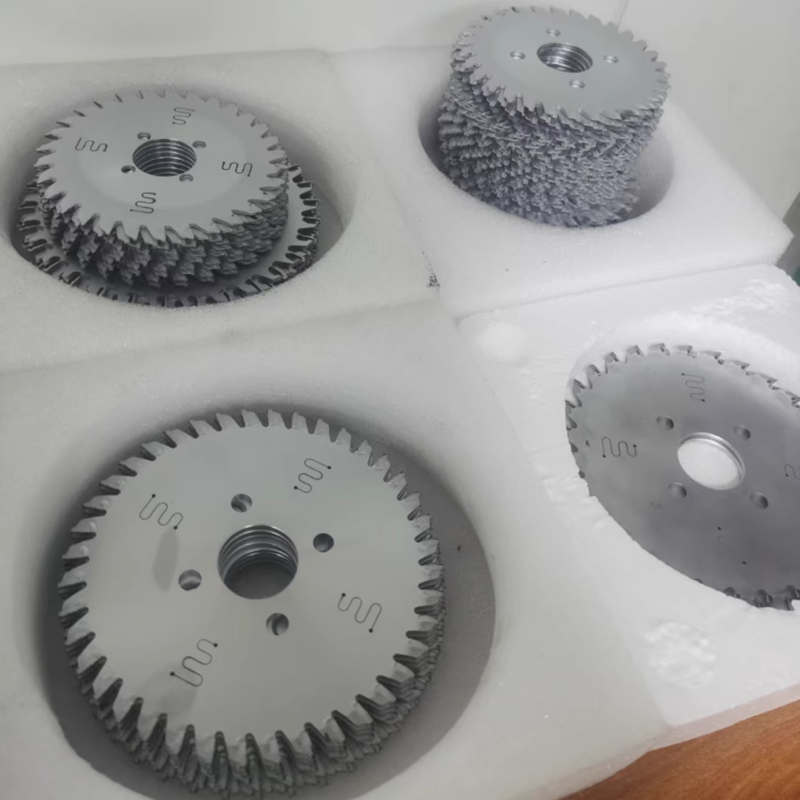

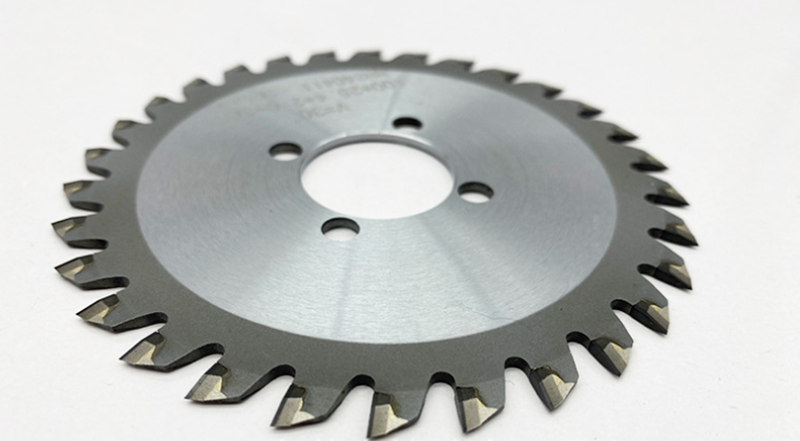

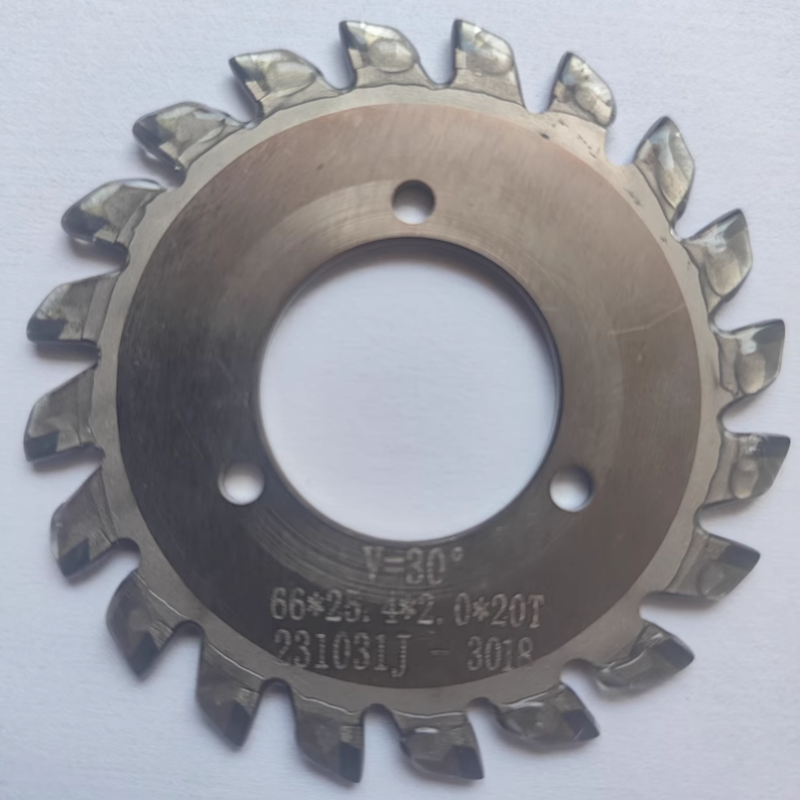

V grooving blade technical data:

Name	OD(mm)	Thickness(mm)	ID(mm)	Teeth Number	Angle °
Tungsten V cutter	100	2.0	40	100T	20°/30°
Tungsten V cutter	120	2.0	40	100T	20°/30°
Tungsten V cutter	120	2.0	25.4	100T	20°/30°
Tungsten V cutter	51	2.4	30	32T/40T	20°/30°
Tungsten V cutter	51	2.4	25	32T/40T	20°/30°
Diamond V cutter	120	2.0	25.4	30T	20°/30°
Diamond V cutter	100	2.0	40	30T	20°/30°
Diamond V cutter	51	2.4	30	18T	20°/30°
Diamond V cutter	51	2.4	25	18T	20°/30°
