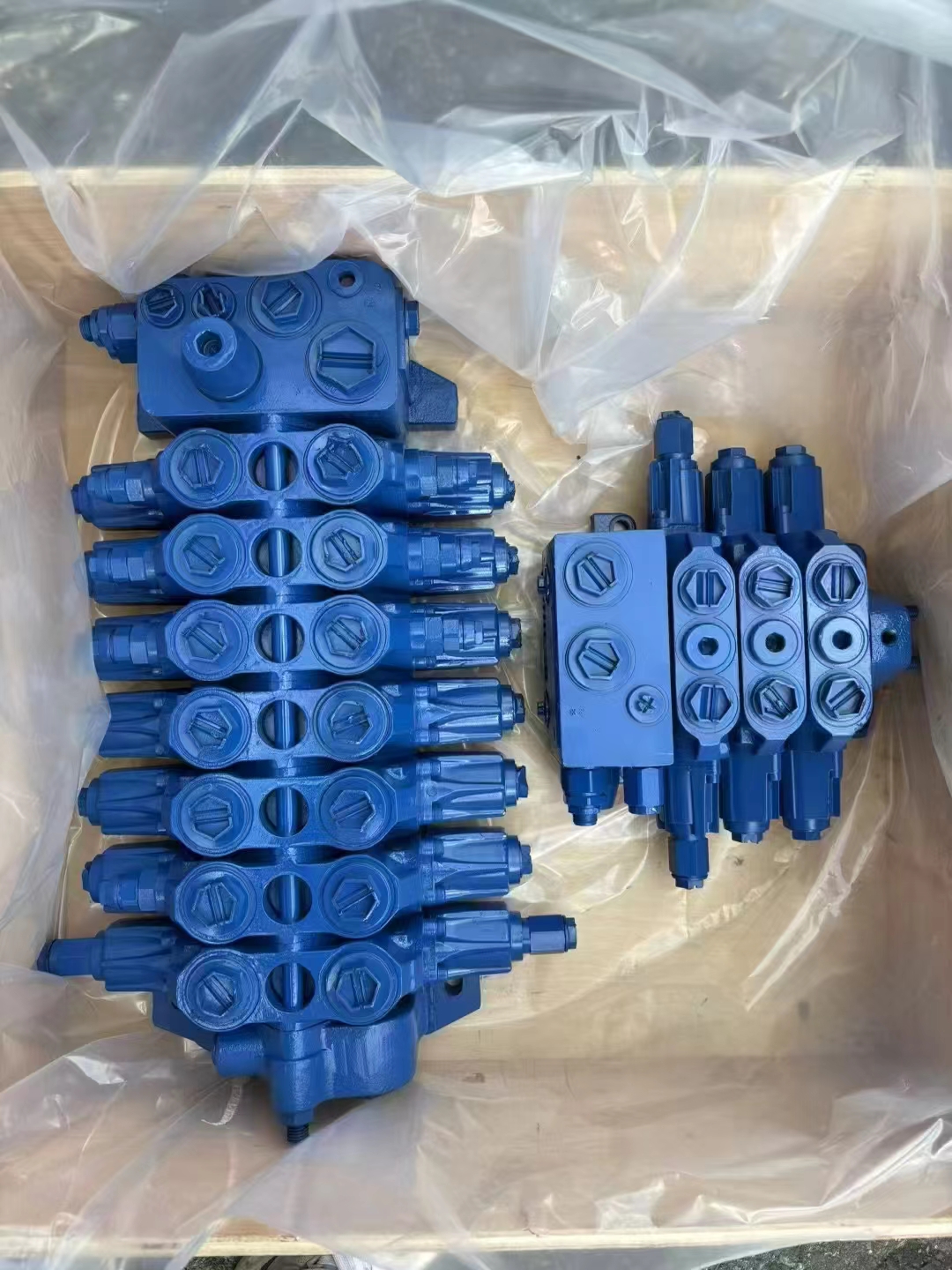

3-way actuating valve manifold and 7-way actuating valve manifold

6 month ago

7 0 

3 year

Product details

Regarding the 3-way actuating valve manifold and the 7-way actuating valve manifold, the following is a detailed explanation of their specific content:

I. Basic Concepts

• 3-way actuating valve manifold: A valve manifold composed of three valves, each of which can be independently operated to achieve different fluid control functions. This type of valve manifold is typically used in situations requiring multiple fluid channels for switching or regulation.

• 7-way actuating valve manifold: A valve manifold composed of seven valves, similar to the 3-way manifold but providing more fluid channels and control options. This type of valve manifold is usually used in more complex or demanding fluid control situations.

II. Structural Characteristics

• Valve Structure: Both the 3-way and 7-way actuating valve manifolds have valves made of high-performance materials to ensure stable operation in high-pressure, high-temperature, or corrosive environments.

• Connection Methods: The connection methods between valve manifolds may include threaded connections, flange connections, or welding, depending on the application and fluid characteristics.

• Control Mechanisms: The valve manifolds are typically equipped with different types of control mechanisms, such as manual, pneumatic, or electric, to meet various operational needs.

III. Application Fields

• Petrochemical Industry: In the petrochemical industry, 3-way and 7-way actuating valve manifolds are commonly used to control the input of raw materials, the output of products, and the disposal of waste.

• Natural Gas Processing: In natural gas processing, these valve manifolds are used to regulate gas flow, pressure, and temperature parameters.

• Pharmaceutical Industry: In the pharmaceutical industry, 3-way and 7-way actuating valve manifolds are often used to control the mixing, reaction, and separation of different raw materials.

IV. Precautions

• Selecting the Appropriate Valve Type: Choose the appropriate valve type (such as globe valves, ball valves, control valves, etc.) based on the application and fluid characteristics.

• Ensuring Correct Installation: Install the valve manifolds correctly according to the manufacturer's instructions to avoid leaks and damage.

• Regular Inspection and Maintenance: Regularly inspect the operating condition of the valve manifolds, replace worn parts, and clean the valve body interior to ensure long-term stable operation.

In summary, the 3-way and 7-way actuating valve manifolds differ in structure and function but have wide application fields and important roles. When selecting and using them, comprehensive consideration should be given based on specific application scenarios and requirements.
