CT-c (81)

Vegetable Slice Drying Machine Principle

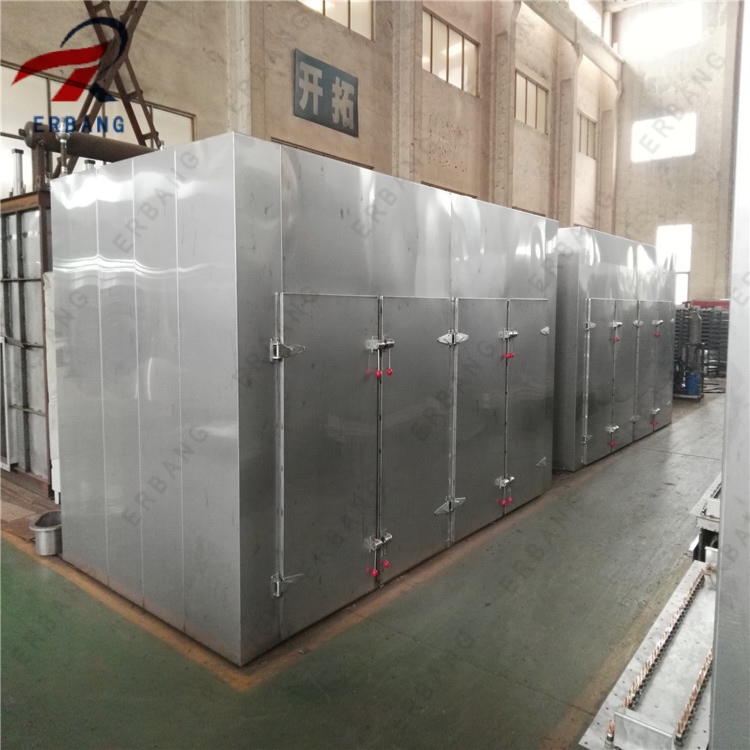

CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.

Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And hot air oven can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.

CT-C hot air oven features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.

Feature

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature: steam heating 50-130˚C, Max.140˚C.

3. Machine use the automatic control system and computer control system

4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)

5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.

6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.

7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.

8. Baking tray also drill hole if client have detail requirement.

9. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.

10.Erbang can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.

11. Machine materials : AISISUS304 , AISISUS316L, and other material .

12. For the electrical component  , we mainly use international brand such as ABB ,Siemens or Schneider.

13. Smooth running, reliable performance, easy operation.

14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

15. Control system has more choices, such as push button , HMI+PLC and so on.

Hot Air Drying Oven Advantages

Erbang Drying CT series hot air fruit dryer had the following advantages over conventional solutions.

1. Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.

2. Uniform drying: Due to the specially designed air distributor, the hot air flow in each layer of trays is very uniform. The temperature difference inside the drying chamber is less than ±2 -3℃.

3. Energy saving:  Most of the hot air circulates inside the well insulated drying chamber and only part of it is exhausted via the exhaust valve. The amount of exhaust air is adjustable according to different drying conditions.

4. Flexibility in heat source: The heat source can be steam, hot water, electricity to match with different working conditions.

5. Flexibility in drying: Standard sized (640x460x45mm) but different types of trays are available for different kinds of wet materials. The tray have standard tray, net tray and drill hole tray.

6. Convenient operation: Control cabinet is installed on drying chamber which can accurately control and set drying temperature and hot air flow rate.

7. GMP design: The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.

Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Optional Choices
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.

5. If without heating system , it can as a cooler to make particle with cooling air.
