CT-c (91)

Principle

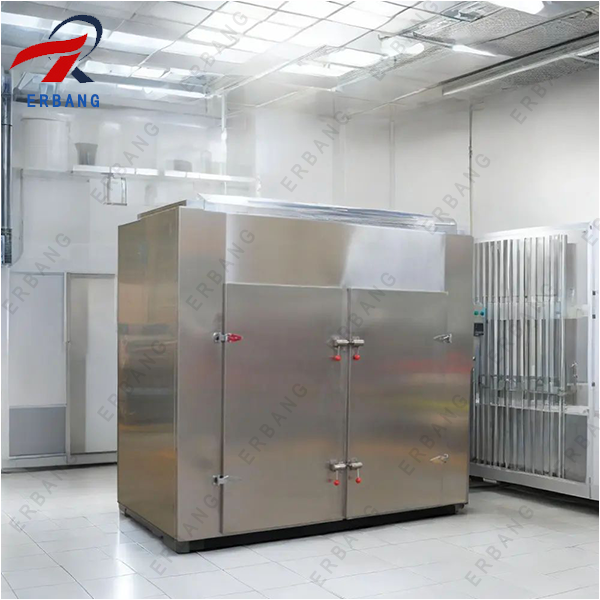

CT-C series Hot Air Circle Dryers adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.

Most of hot air is circled inside the Colour Fixatives Drying Machine , thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And hot air oven can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.

CT-C Series Hot Air Circle Dryers features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.

Feature

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature: steam heating 50-130˚C, Max.140˚C.

3. Machine use the automatic control system and computer control system

4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)

5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.

6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.

7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.

8. Baking tray also drill hole if client have detail requirement.

9. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.

10.Erbang can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.

11. Machine materials : AISISUS304 , AISISUS316L, and other material .

12. For the electrical component  , we mainly use international brand such as ABB ,Siemens or Schneider.

13. Smooth running, reliable performance, easy operation.

14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

15. Control system has more choices, such as push button , HMI+PLC and so on.

Hot Air Drying Oven Advantages

Erbang Drying CT series hot air tray dryer had the following advantages over conventional solutions.

1. Hot air is circulated in the oven to save the energy, so the heat efficiency is high.

2. It adopts the forced ventilation and adjustable air distributor, thereby materials in the oven can be dried uniformly.

3. The most common heating sources are offered: steam, electricity, or far infrared, or both steam electricity. Generally, electricity is the most economical and convenient way.

4. Hot air fruit drying oven is made of stainless steel, equipped with an axial flow fan, automatic thermostatic control system and a computer control system.

5. Low noise, smooth operation, automatic temperature control, easy installation, and maintenance.

6. Wide application. This hot air fruit drying machine can be used to dry variety of fruits like blueberries, banana, lime, etc. and it is also applied in the pharmaceutical industry, chemical industry, food industry and etc..

7. Various hot air drying ovens can be customized according to customers' needs.

8. Drying temperature of food drying oven: steam heating 50-130˚C, Max.140˚C.

9. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client).

10. For operation temperature of over 140˚C , please indicate when order.

11. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and it can be exchanged each other.

12. Model available from 24 trays to 192 trays.

13. The hot air drying oven with separate air filtration can be provided upon request.

14. Baking tray also drill hole if client have detail requirement.

15. Erbang Drying can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.

16. Machine materials : AISISUS304 , AISISUS316L, and other material .

17. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

18. Leak proof door sealing for efficient drying of products.

Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Main Technical Parameter:
