Granule Special Mixing Machine

FZH Series Cold Particle Mixer is ideal for powder and granules mixing applications in foodstuff industry with high mixing efficiency and without cross contamination and dust. Thus, the Radix Isatidis Granule Mixer can satisfy strict batch control and comply entirely with GMP requirements for medicine production.
This Chinese Medicine Granule Mixer can catch several kinds and different sizes of bins, which lifting, clamping, mixing, descending and clamp losing full automatically. One main machine can be configured with various bin specifications, thus it's the ideal blender for general mixing in pharmaceutical plant, meanwhile, widely used in chemical, light and food industries, etc.

1. Granule Special Mixing Machine Working Principle

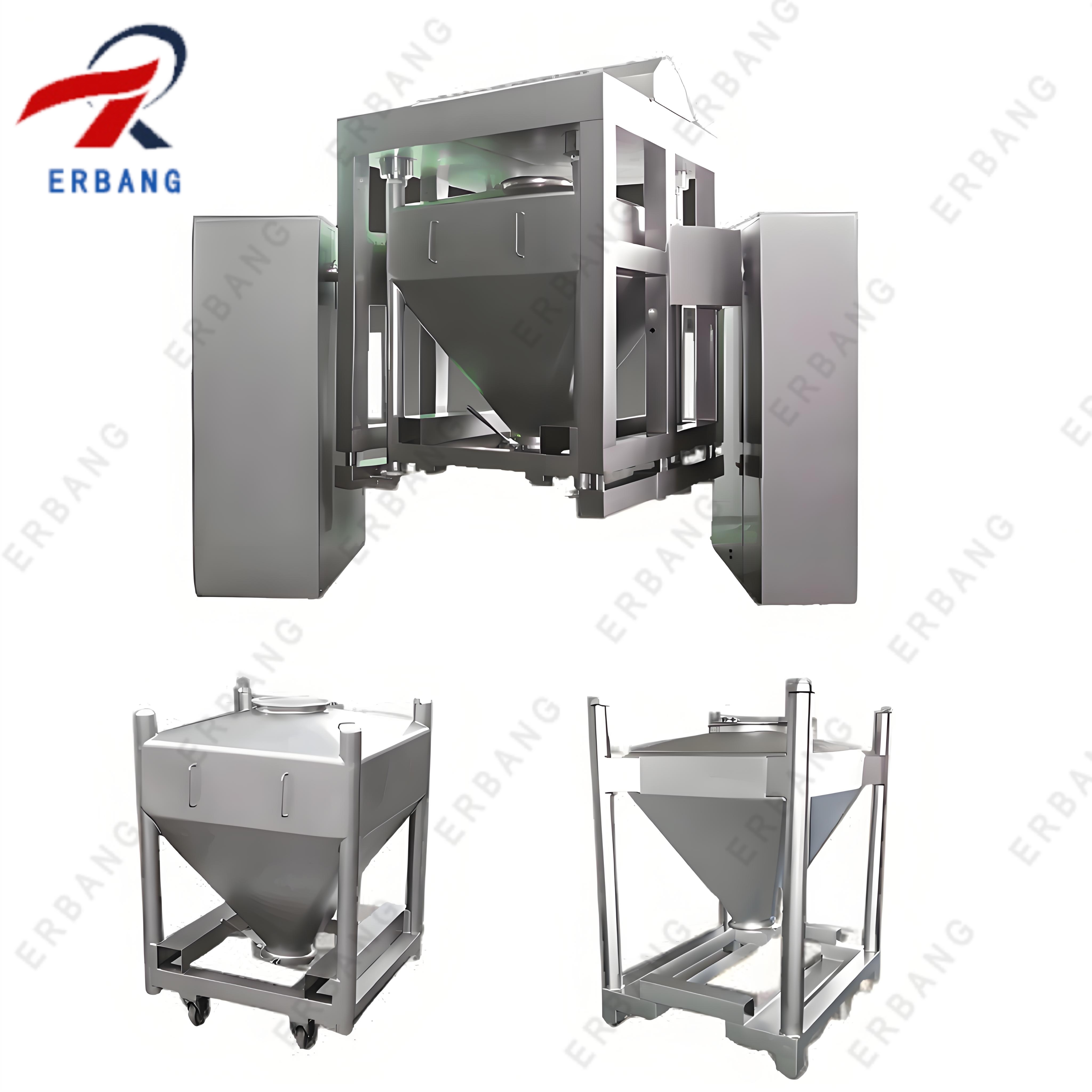

Radix Isatidis Granule Mixing Machine is composed of frame, clamping type of rigid rotating shell (hereinafter called "rotating shell"), lift descend /clamp, drive, brake and control systems.

When start working, firstly, put the loaded square mixing bin (hereinafter called "bin") into rotating shell and a position signal will be sent by the control system when the bin fixed position. Press "confirm" key on the touch panel, the bin will be automatically raised in position and clamped by the lift descend /clamp system. After the bin fully clamped, the drive system starts blending according to the setting time and rotating speed. On achieving the set mixing time, the rotating shell slow down automatically, and brake system operates to stop the rotating shell vertically for moving the bin out easily and the blending task finished. Then the lift descend /clamp system work to lower the bin on the ground. Meanwhile, the printer will print out complete data of this batch. Finally, move out the bin from rotating shell and thus finish this blending cycle.

2. Granule Special Mixing Machine Features
1. Cold Granule Mixing Machine is novel in design and has compact structure and nice appearance. The evenness of mixing achieves above 99% and the volume charge coefficient reaches 0.8.
2. Low rotating height, smooth running, reliable performance and easy operation.
3. Mirror polish for the inner and outer surfaces of the bin without dead corner, easy to unload and clean with no cross contamination, which conforms to the requirement of GMP.
4. The system controlled by PLC, sensor of photoelectric position control, and drive system which composed of motors, thus, can control the mixing time and unloading position. And when machine stopped, the discharge port will at the best position for unloading.
5. The locking clamp structure of loading cover bolt is easy for disassembly, cleaning and well sealing, and no leakage found in testing fill with water cover 80% of total volume.
6. Silicon soft connecting is used for connecting between inlet/outlet of the bin and other equipment, thereby, avoids flying dust.
7. The patented discharge butterfly valve is easy for disassembly, operation and cleaning with well sealing, and no leakage found in testing fill with water cover 80% of total volume. It has been used on thousands of blenders and well received by customers.

8. Equipped with fine manufactured hopper that fully meet the requirements of GMP, no residues of discharge, and it's easy for cleaning or washing
9. We supply series product for material conveying. It forms advanced process together with the hopper mixing machine.
10. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge factor reaches 0.8.

11. Smooth running, reliable performance, easy operation.

12. Control system has more choices, such as push button , HMI+PLC and so on.

13. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on

14. Machine materials : AISISUS304 , AISISUS316L, and other material .

15 For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.
