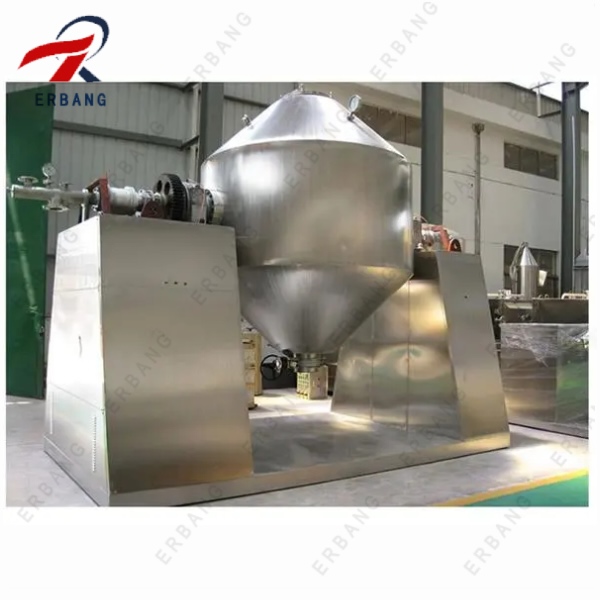

Erbang Supply Vacuum Rotary Drier
Attention to order
1. Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas, when client put the order of Rotating Vacuum Dryer
2. Control requirement: whether or not the inlet and outlet temperatures should be controlled.when client order the Vacuum Rotating Drier, it need to tell Erbang clear
3. when order the Vacuum Rotary Drying Machinery, whether have the Other special requirements.
4.Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.
5. Dry powder density residual water contents allowed, particle size, and maximum temperature allowed.
6. Output: shift time daily.
As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell; Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Product Application:
This Rotary Vacuum Drying Machine can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
Main technucal parameter:
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
